Availability: Item has been discontinued and is no longer available.
Product Details

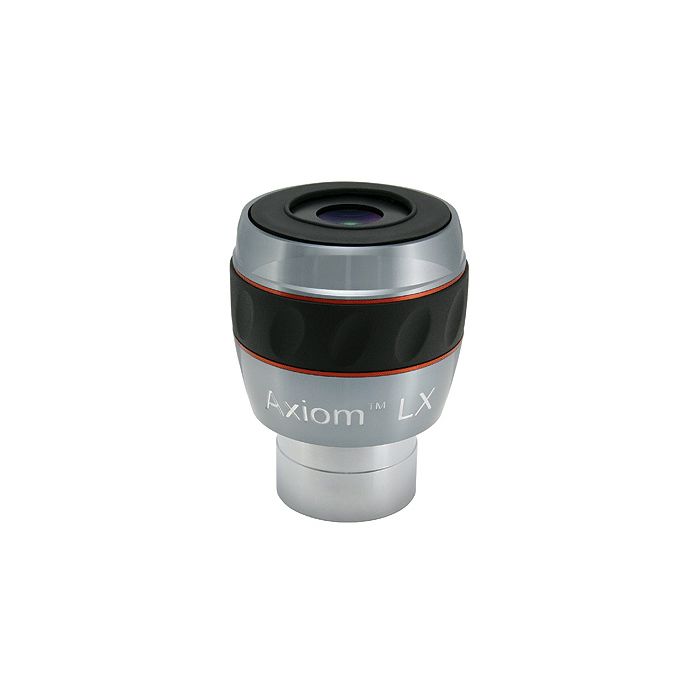

Axiom LX 23mm Eyepiece - General Features
• 82 degree Field - Wide FOV for high and low magnifications.• Retractible eyecups - Ultra-low profile for eyeglass wearers
• Parfocal eyepiece - Little or no focusing is needed when changing from low to high power.
• Threaded barrels - Accept 2" thread-in filters.
• Polished and hard anodized aluminum barrel - Scratch resistant and high end appearance.
• Rubber gripping ring - For secure handling and smooth control of eyecup.
| Eyepiece Series | Axiom |
|---|---|
| Focal Length | 23mm |
| Barrel Size | 2" (50.8mm) |
| Apparent Field of View (Mfg Specified) | 82° |
| Eye Relief (Designed) | 17mm (0.67") |
| Filter Threads | Standard 2" Filter Thread (M48 x 0.75) |
| Coatings | Fully Multi-Coated |
| Lens Elements | 6 |
| Barrel Safety Recess | Yes |
| Barrel Type | With safety undercut |
| Field Stop Diameter | 34mm (1.34') |
| Parfocal | Yes |
| Rubber Eye Guard | Yes (Retractible Eyecup) |
| Warranty | One Year Limited Manufacturer's Warranty |
| Weight | 16.9 oz (479.1 g) |
