Celestron Dual-Axis Motor Drive for CG-4 Mounts # 93522
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Quick Overview
- Install this DA motor drive on your CG-4 equatorial mount and open the door for astrophotography!
- Dual-axis drive motors track the stars as they move across the sky.
- The three-speed drive corrector lets you make tracking adjustments in all four directions.
- Can be used in the Northern or Southern Hemisphere.
- DC motor drive uses four D-cell batteries (user supplied).
Product Details
Add tracking and tracking correction capabilities to any setup that uses a Celestron CG-4 equatorial mount. The right ascension motor drive allows the telescope to track a star's movement through the night sky, and the addition of a declination motor gives you the ability to make adjustments in all four directions with the included drive corrector hand controller.
With this drive system mounted on a properly polar-aligned telescope, the user can do visual observations or sketches without objects constantly drifting out of the field if view. Astrophotography is also possible when a mount has dual-axis drive with drive corrector capabilities.
The Celestron dual-axis motor drive system is powered by four D-cell batteries in a self-contained battery pack. The drive can be used in either the Northern or Southern Hemisphere. To change hemispheres (reverse the motor's direction), simply flip the "N/Off/S" switch on the drive corrector hand controller.
The drive corrector hand controller can be used to move the telescope at different speeds. This is achieved by choosing the desired speed on a switch marked "2x/4x/8x".Twice the sidereal rate, or 2x, is used for guiding on a star when doing astrophotography. The 4x speed is used to center objects in the eyepiece. The 8x speed can be used for centering objects in the finderscope as well as the eyepiece.

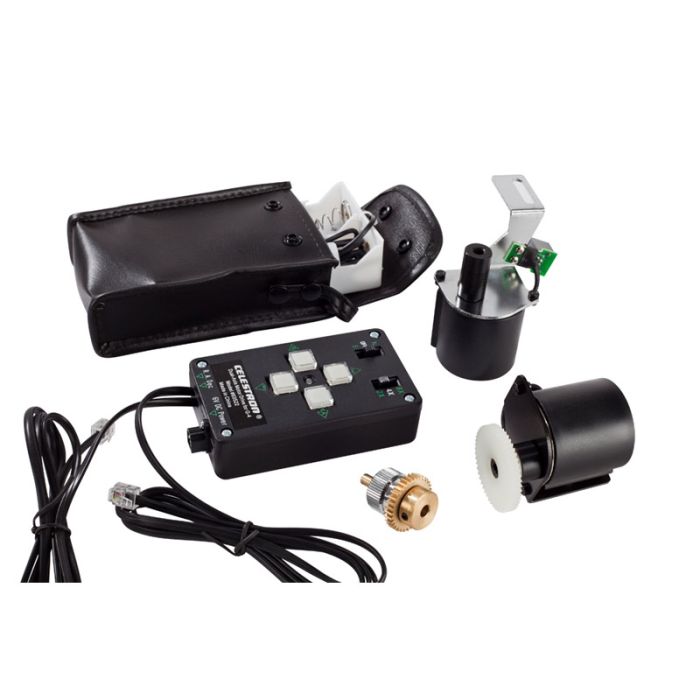

This package includes an RA and Dec motor, clutch, mounting brackets and hardware, drive corrector hand controller, and power pack.
Features
- Install this DA motor drive on your CG-4 equatorial mount and open the door for astrophotography!
- Dual-axis drive motors track the stars as they move across the sky.
- The three-speed drive corrector lets you make tracking adjustments in all four directions.
- Can be used in the Northern or Southern Hemisphere.
- DC motor drive uses four D-cell batteries (user supplied).
Other Information
- Country of Manufacture: China
