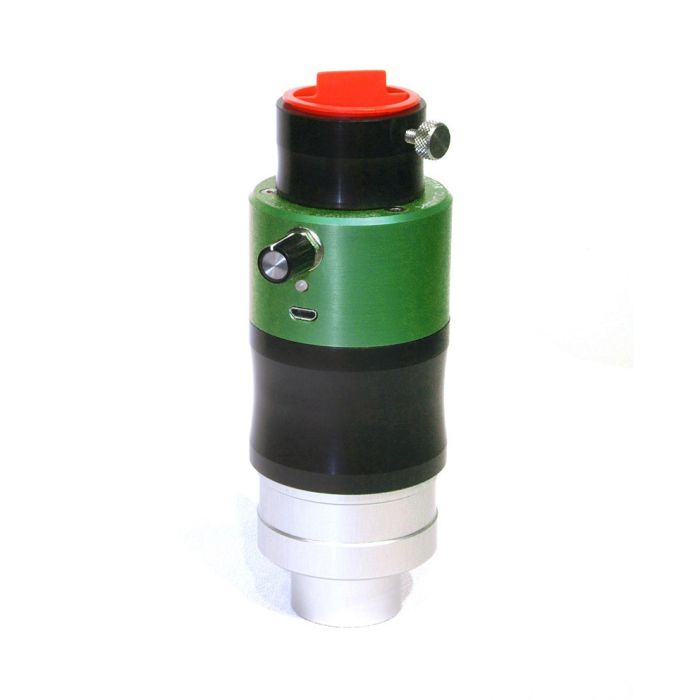

DayStar Original Quark Eyepiece Solar Filter for Refractors: Magnesium I b2 Line Model
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
By popular demand, we are introducing a MgI b2 line version of the Quark, for use in refractors F/4-F/9. Magnesium, a bright green color is easily visible in the center of the human eye's highest sensitivity. Studies of the Mg line relate to boundary layers between granulation and spicule. In addition to heavy surface mottling and high contrast granulation, the Mg line also shows plague in equal or higher detail as the Calcium line. Magnesium wavelength studies will reveal Zeeman splitting in absorption of magnetized areas of active regions.
This new, All-In-One design marries high quality components of a telecentric barlow, adapters, snouts and Daystar MgI b2 line filter into one simple assembly. Through design efficiency and optimization, now users can enjoy the known high quality optics of DayStar* at an affordable price.
For use on refractors of F/4 to F/9, the user needn't worry about configurations. Just insert in your diagonal, add an eyepiece and view. The QUARK contains a custom Daystar Instruments 4.2X telecentric barlow lens fully optimized in coatings and optical design. This highly specialized telecentric lens offers superior field flatness. Exact filter bandpass will vary based on final telescope application. No specific FWHM bandpass is designated, however the etalon will be approximately 0.3-0.5 angstroms. Now observers can buy a filter based on their desired observing goals instead of their budget. The fully optimized design eliminates the need for any adapters. It's all combined in one lightweight eyepiece sized device. The new, compact design configuration eliminates unnecessary components, weight and associated costs. We even reduced power consumption, so the Quark can now operate all day off a small, palm-sized optional battery pack.
*The QUARK assembly is a product of DayStar Instruments, using DayStar Filters' Fabry Perot etalon technology.
- 1.25" or 2.0" combo eyepiece snouts with safety indent slot directly into your diagonal
- Standard 1.25 eyepiece drawtube output with optional 2" and SCT accessories available.
- Brass compression ring to protect eyepiece. Uses USB power, 5v 1.5amp Includes 90-240VAC wall adapter with international plug adapters.
- Tuning knob allows wing shifting +/- 0.5Å with detents at every 0.1Å LED indicator for power, warming, ready, fault 5 year warranty,
- Optional 8-hour battery pack available. Integrated, fully baffled 2 element telecentric 4.2X barlow
- Integrated 12mm blocking filter 21mm clear filter aperture
- Best performance with F/4 - F/8 refractors
- Full disk viewing possible on refractors up to ~450mm focal length refractors
- No aperture limitations. May be used on larger refractors for higher magnification views
- Ships in convenient Twist-Case for safe, dust-free storage.
- Not suited for off-axis application.
Additional Info
DayStar Video on YouTube: Setting up and using the DayStar Original Quark
Other Information
- Country of Manufacture: United States
By popular demand, we are introducing a MgI b2 line version of the Quark, for use in refractors F/4-F/9. Magnesium, a bright green color is easily visible in the center of the human eye's highest sensitivity. Studies of the Mg line relate to boundary layers between granulation and spicule. In addition to heavy surface mottling and high contrast granulation, the Mg line also shows plague in equal or higher detail as the Calcium line. Magnesium wavelength studies will reveal Zeeman splitting in absorption of magnetized areas of active regions.
This new, All-In-One design marries high quality components of a telecentric barlow, adapters, snouts and Daystar MgI b2 line filter into one simple assembly. Through design efficiency and optimization, now users can enjoy the known high quality optics of DayStar* at an affordable price.
For use on refractors of F/4 to F/9, the user needn't worry about configurations. Just insert in your diagonal, add an eyepiece and view. The QUARK contains a custom Daystar Instruments 4.2X telecentric barlow lens fully optimized in coatings and optical design. This highly specialized telecentric lens offers superior field flatness. Exact filter bandpass will vary based on final telescope application. No specific FWHM bandpass is designated, however the etalon will be approximately 0.3-0.5 angstroms. Now observers can buy a filter based on their desired observing goals instead of their budget. The fully optimized design eliminates the need for any adapters. It's all combined in one lightweight eyepiece sized device. The new, compact design configuration eliminates unnecessary components, weight and associated costs. We even reduced power consumption, so the Quark can now operate all day off a small, palm-sized optional battery pack.
*The QUARK assembly is a product of DayStar Instruments, using DayStar Filters' Fabry Perot etalon technology.
- 1.25" or 2.0" combo eyepiece snouts with safety indent slot directly into your diagonal
- Standard 1.25 eyepiece drawtube output with optional 2" and SCT accessories available.
- Brass compression ring to protect eyepiece. Uses USB power, 5v 1.5amp Includes 90-240VAC wall adapter with international plug adapters.
- Tuning knob allows wing shifting +/- 0.5Å with detents at every 0.1Å LED indicator for power, warming, ready, fault 5 year warranty,
- Optional 8-hour battery pack available. Integrated, fully baffled 2 element telecentric 4.2X barlow
- Integrated 12mm blocking filter 21mm clear filter aperture
- Best performance with F/4 - F/8 refractors
- Full disk viewing possible on refractors up to ~450mm focal length refractors
- No aperture limitations. May be used on larger refractors for higher magnification views
- Ships in convenient Twist-Case for safe, dust-free storage.
- Not suited for off-axis application.
By popular demand, we are introducing a MgI b2 line version of the Quark, for use in refractors F/4-F/9. Magnesium, a bright green color is easily visible in the center of the human eye's highest sensitivity. Studies of the Mg line relate to boundary layers between granulation and spicule. In addition to heavy surface mottling and high contrast granulation, the Mg line also shows plague in equal or higher detail as the Calcium line. Magnesium wavelength studies will reveal Zeeman splitting in absorption of magnetized areas of active regions.
This new, All-In-One design marries high quality components of a telecentric barlow, adapters, snouts and Daystar MgI b2 line filter into one simple assembly. Through design efficiency and optimization, now users can enjoy the known high quality optics of DayStar* at an affordable price.
For use on refractors of F/4 to F/9, the user needn't worry about configurations. Just insert in your diagonal, add an eyepiece and view. The QUARK contains a custom Daystar Instruments 4.2X telecentric barlow lens fully optimized in coatings and optical design. This highly specialized telecentric lens offers superior field flatness. Exact filter bandpass will vary based on final telescope application. No specific FWHM bandpass is designated, however the etalon will be approximately 0.3-0.5 angstroms. Now observers can buy a filter based on their desired observing goals instead of their budget. The fully optimized design eliminates the need for any adapters. It's all combined in one lightweight eyepiece sized device. The new, compact design configuration eliminates unnecessary components, weight and associated costs. We even reduced power consumption, so the Quark can now operate all day off a small, palm-sized optional battery pack.
*The QUARK assembly is a product of DayStar Instruments, using DayStar Filters' Fabry Perot etalon technology.
- 1.25" or 2.0" combo eyepiece snouts with safety indent slot directly into your diagonal
- Standard 1.25 eyepiece drawtube output with optional 2" and SCT accessories available.
- Brass compression ring to protect eyepiece. Uses USB power, 5v 1.5amp Includes 90-240VAC wall adapter with international plug adapters.
- Tuning knob allows wing shifting +/- 0.5Å with detents at every 0.1Å LED indicator for power, warming, ready, fault 5 year warranty,
- Optional 8-hour battery pack available. Integrated, fully baffled 2 element telecentric 4.2X barlow
- Integrated 12mm blocking filter 21mm clear filter aperture
- Best performance with F/4 - F/8 refractors
- Full disk viewing possible on refractors up to ~450mm focal length refractors
- No aperture limitations. May be used on larger refractors for higher magnification views
- Ships in convenient Twist-Case for safe, dust-free storage.
- Not suited for off-axis application.
Additional Info
DayStar Video on YouTube: Setting up and using the DayStar Original Quark
Other Information
- Country of Manufacture: United States
