EmCan AZ40 Strain Wave Alt-Az Mount
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- Visual Astronomy Enthusiasts: Ideal for observing the night sky
- Multi-Telescope Synchronized Observation: Supports simultaneous use of multiple telescopes
- Astronomy Education & Outreach: Perfect for teaching and public science activities
- Field & Outdoor Stargazing: Convenient and portable for observing anywhere
AZ40 Strain Wave Alt-Az Mount: Visual-First Alt-Az Platform
Following the success of EM31 equatorial mount, EMCAN now brings the strain-wave drive to a visual-first Alt-Az platform: AZ40 Strain-Wave Alt-Az Mount. Built around a lightweight yet high load-capacity design, AZ40 features a standard top mount with optional side brackets, enabling observers to operate multiple instruments simultaneously while maintaining stable balance and smooth tracking. (Any telescopes or tripods pictured are just for demonstration purposes and do not come with the AZ40 mount head)
Why Choose the EmCan AZ40 Strain Wave Alt-Az Mount?

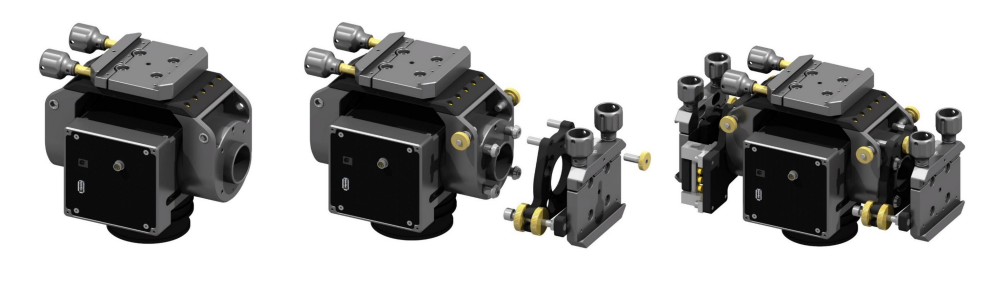

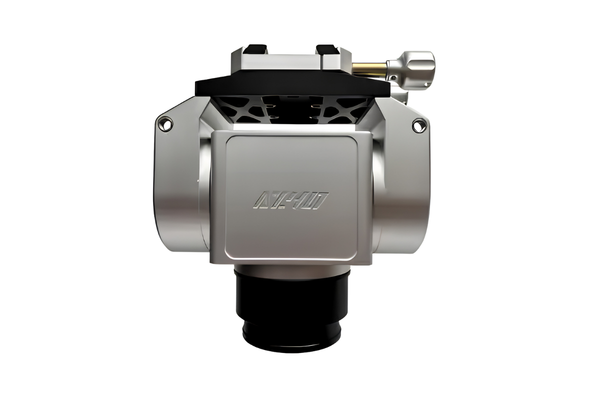

Standard Main Unit

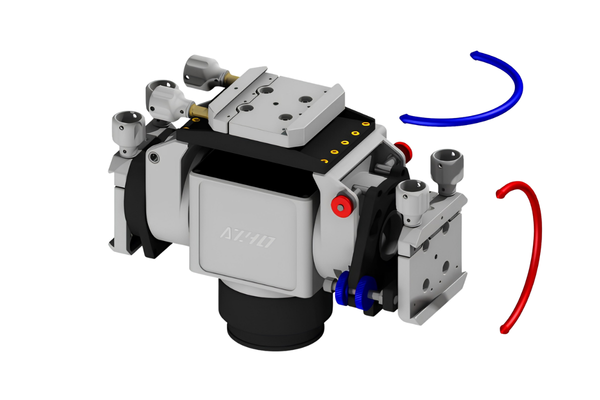

Its patented tool-free coaxial alignment system allows instruments on adjustable brackets to be aligned quickly and easily. Compatible with a wide range of optical setups from binocular telescopes to refractors and reflectors - the AZ40 provides a flexible and mechanically stable observing platform.
Strain Wave Drive
The AZ40 uses a strain-wave drive system similar to that in the EM31 equatorial mount. It delivers high torque, maintains a compact structure, simplifies balance requirements, and provides smooth motion for GoTo and tracking.
Multiple Telescope Mounting
The optional adjustable side bracket enables coaxial alignment, allowing multiple telescopes to be aligned without tools based on a patented design. This allows observers to quickly match the pointing direction of different instruments, simplifying multi-telescope observation.

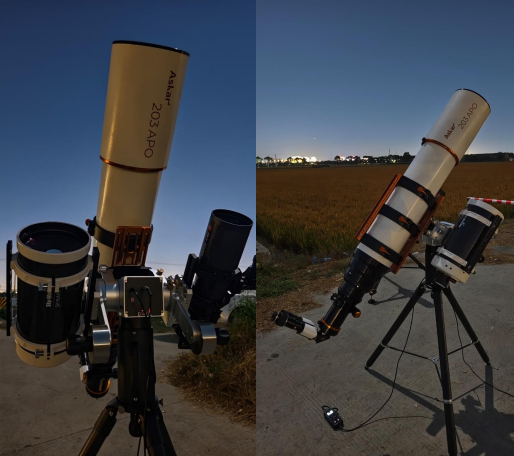

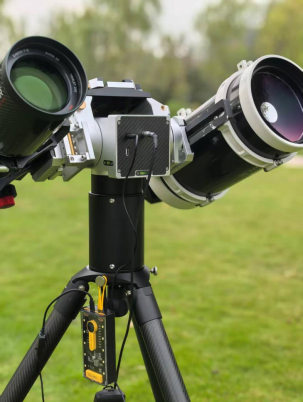

AZ40 + Askar 203 + side MK150 + side 90APO (approx. total 40kg)
Compact Body Heavy-Duty Performance
The AZ40 uses type-20 strain-wave reducers on both axes. With a body weight of 6.5 kgs (14.3 lbs) and a rigid structural design, it provides a stable load capacity of 20–30 kgs (44.1–66.1 lbs). When paired with the side brackets, each side can accommodate an additional 20 kgs (44.1 lbs), achieving an excellent balance between portability and strength—ideal for both backyard and field observation setups.

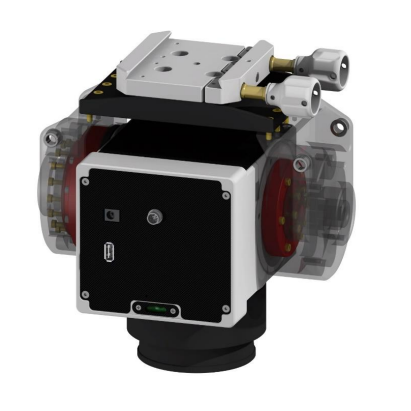

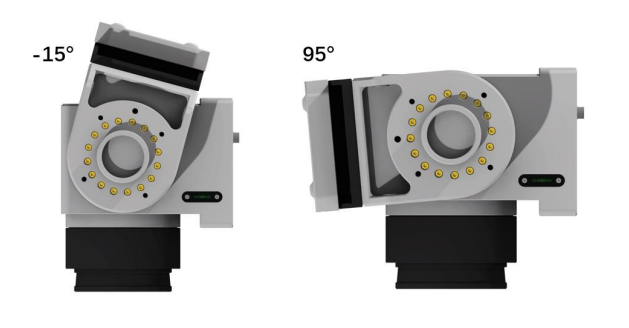

Innovative U-Shaped Support Base
The U-shaped frame is equipped with a strain wave reducer on the altitude axis and a support bearing on the opposite end. Combined with the high torque of the strain wave reducer, this design ensures excellent load capacity while optimizing both size and weight.

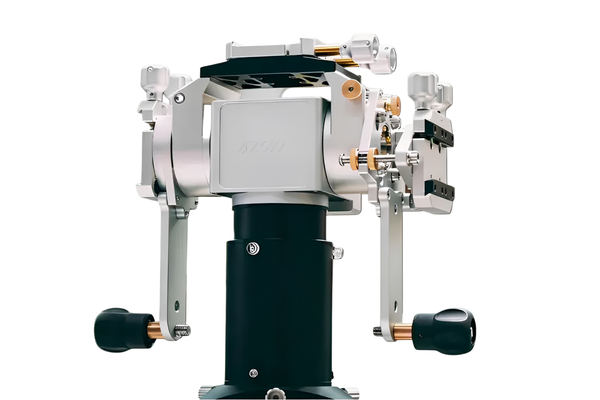

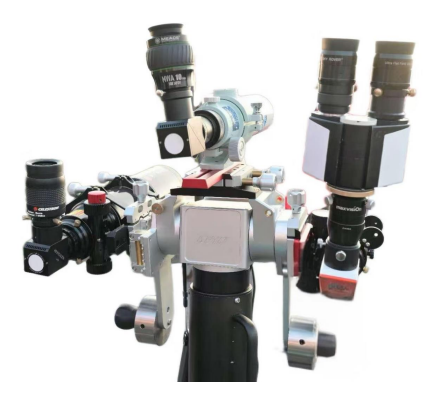

Flexible Multi-Telescopes Mounting
The AZ40 features a standard top mounting position, with optional side brackets allowing for up to two additional mounting positions.
It supports a wide range of optical setups - from binocular telescopes to refractors and reflectors.
Quick Calibration & Safe Operation
- Spiral star-search mode and 1-star alignment for fast and easy calibration
- Integrated bubble level for quick and accurate leveling
- Built-in altitude limit sensor and power-off brake system to prevent accidental drops or collisions

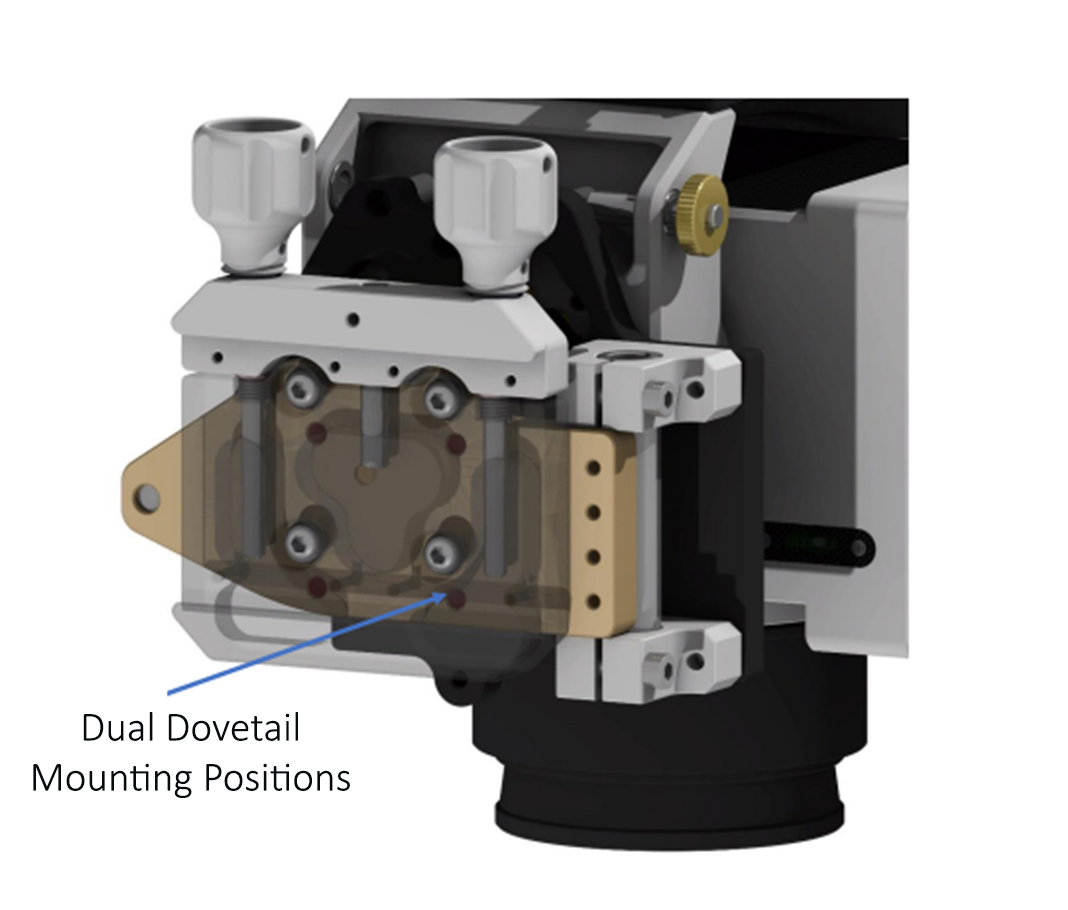

Innovative Counterbalance Design
The optional side bracket features a low-center-of-gravity design with dual dovetail mounting positions, allowing flexible adjustment of the system's balance.
Side-mounted telescopes enable multi-instrument observation while helping to maintain system balance.
Expandable Counterweight System
For heavier optical systems, the AZ40 provides an optional counterweight interface.
This allows additional counterweights to be added to increase load capacity while maintaining system balance and stability.
Quiet and Energy-Efficient Operation
AZ40 uses a closed-loop control system that ensures smooth tracking with low power consumption. The system operates quietly, making it ideal for nighttime observing sessions. The mount can be powered by a 12V DC source or portable power bank, providing excellent flexibility for outdoor use.
Specifications
-
Weight:
-
Head (without side brackets): 6.5 kg (14.3 lb)
-
With side brackets & dovetails: 7.8–9.0 kg (17.2–19.8 lb)
-
-
Load Capacity:
-
Top mount: Up to 20 kg (44.1 lb) without counterweight / Up to 30 kg (66.1 lb) with counterweight
-
Payload note: Calculated with telescope center of gravity (CG) 15 cm (5.9 in) from dovetail
-
Side mounts: Up to 20 kg (44.1 ib) each with optional side brackets
-
-
Altitude: 20-type Strain Wave Reducer
-
Azimuth: 20-type Strain Wave Reducer
-
GoTo Speed: Max 6°/s
-
Power Requirement: 12V 3A, DC 5.5 x 2.1 mm
-
Communication Interfaces: USB 2.0, Wi-Fi, Bluetooth
-
Mode: Alt-Az (Top & Side)
-
Support: SkySafari, Stellarium, ASCOM, INDI
-
Leveling & Safety: Bubble level, altitude-axis power-off brake, altitude-axis limit protection
-
Dovetail Compatibility: Losmandy & Vixen & Arca (optional)
-
Hand Controller: Wired

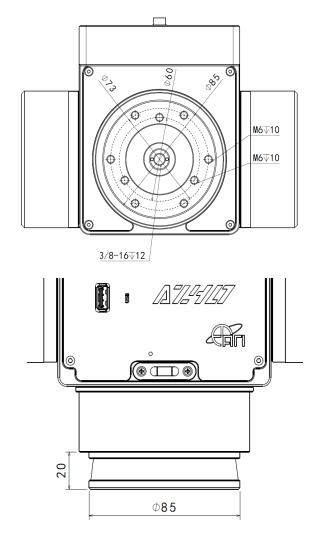

AZ40 Base Mounting Dimensions
Other Information
- Country of Manufacture: China
AZ40 Strain Wave Alt-Az Mount: Visual-First Alt-Az Platform
Following the success of EM31 equatorial mount, EMCAN now brings the strain-wave drive to a visual-first Alt-Az platform: AZ40 Strain-Wave Alt-Az Mount. Built around a lightweight yet high load-capacity design, AZ40 features a standard top mount with optional side brackets, enabling observers to operate multiple instruments simultaneously while maintaining stable balance and smooth tracking. (Any telescopes or tripods pictured are just for demonstration purposes and do not come with the AZ40 mount head)
Why Choose the EmCan AZ40 Strain Wave Alt-Az Mount?
Standard Main Unit
Its patented tool-free coaxial alignment system allows instruments on adjustable brackets to be aligned quickly and easily. Compatible with a wide range of optical setups from binocular telescopes to refractors and reflectors - the AZ40 provides a flexible and mechanically stable observing platform.
Strain Wave Drive
The AZ40 uses a strain-wave drive system similar to that in the EM31 equatorial mount. It delivers high torque, maintains a compact structure, simplifies balance requirements, and provides smooth motion for GoTo and tracking.
Multiple Telescope Mounting
The optional adjustable side bracket enables coaxial alignment, allowing multiple telescopes to be aligned without tools based on a patented design. This allows observers to quickly match the pointing direction of different instruments, simplifying multi-telescope observation.
AZ40 + Askar 203 + side MK150 + side 90APO (approx. total 40kg)
Compact Body Heavy-Duty Performance
The AZ40 uses type-20 strain-wave reducers on both axes. With a body weight of 6.5 kgs (14.3 lbs) and a rigid structural design, it provides a stable load capacity of 20–30 kgs (44.1–66.1 lbs). When paired with the side brackets, each side can accommodate an additional 20 kgs (44.1 lbs), achieving an excellent balance between portability and strength—ideal for both backyard and field observation setups.
Innovative U-Shaped Support Base
The U-shaped frame is equipped with a strain wave reducer on the altitude axis and a support bearing on the opposite end. Combined with the high torque of the strain wave reducer, this design ensures excellent load capacity while optimizing both size and weight.
Flexible Multi-Telescopes Mounting
The AZ40 features a standard top mounting position, with optional side brackets allowing for up to two additional mounting positions.
It supports a wide range of optical setups - from binocular telescopes to refractors and reflectors.
Quick Calibration & Safe Operation
- Spiral star-search mode and 1-star alignment for fast and easy calibration
- Integrated bubble level for quick and accurate leveling
- Built-in altitude limit sensor and power-off brake system to prevent accidental drops or collisions
Innovative Counterbalance Design
The optional side bracket features a low-center-of-gravity design with dual dovetail mounting positions, allowing flexible adjustment of the system's balance.
Side-mounted telescopes enable multi-instrument observation while helping to maintain system balance.
Expandable Counterweight System
For heavier optical systems, the AZ40 provides an optional counterweight interface.
This allows additional counterweights to be added to increase load capacity while maintaining system balance and stability.
Quiet and Energy-Efficient Operation
AZ40 uses a closed-loop control system that ensures smooth tracking with low power consumption. The system operates quietly, making it ideal for nighttime observing sessions. The mount can be powered by a 12V DC source or portable power bank, providing excellent flexibility for outdoor use.
Specifications
-
Weight:
-
Head (without side brackets): 6.5 kg (14.3 lb)
-
With side brackets & dovetails: 7.8–9.0 kg (17.2–19.8 lb)
-
-
Load Capacity:
-
Top mount: Up to 20 kg (44.1 lb) without counterweight / Up to 30 kg (66.1 lb) with counterweight
-
Payload note: Calculated with telescope center of gravity (CG) 15 cm (5.9 in) from dovetail
-
Side mounts: Up to 20 kg (44.1 ib) each with optional side brackets
-
-
Altitude: 20-type Strain Wave Reducer
-
Azimuth: 20-type Strain Wave Reducer
-
GoTo Speed: Max 6°/s
-
Power Requirement: 12V 3A, DC 5.5 x 2.1 mm
-
Communication Interfaces: USB 2.0, Wi-Fi, Bluetooth
-
Mode: Alt-Az (Top & Side)
-
Support: SkySafari, Stellarium, ASCOM, INDI
-
Leveling & Safety: Bubble level, altitude-axis power-off brake, altitude-axis limit protection
-
Dovetail Compatibility: Losmandy & Vixen & Arca (optional)
-
Hand Controller: Wired
AZ40 Base Mounting Dimensions

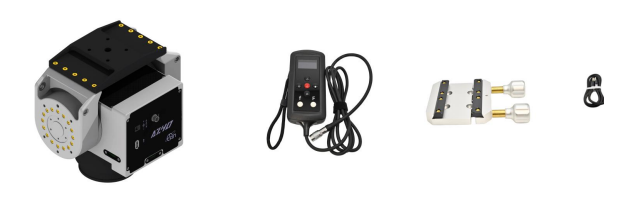

- 1x AZ40 Head
- 1x Hand Controller
- 1x Dovetail (VIXEN & LOSMANDY)
- 1x 0.5m USB2.0 Cable
*Supplied in a custom foam-fitted carton. Carrying case not included.
