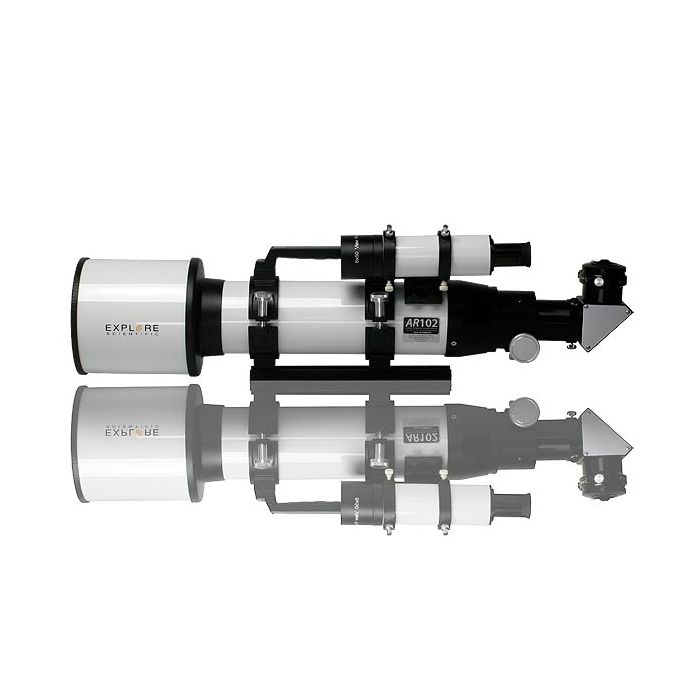

Explore Scientific AR102 102mm f/6.5 Air-Spaced Doublet Achromat Refractor Telescope

Our #: ZZT-ZZES-DAR102
Mfg #: DAR102065-01
Our Price: $399.99
Free shipping for this item in the Contiguous US Only
More Info

Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.

US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.

International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

Out of Stock
Availability: Item has been discontinued by Agena and we no longer carry this item

Availability: Item has been discontinued and is no longer available.

Quick Overview

Explore Scientific AR102 f/6.5 Air-Spaced Doublet; Two-Speed 2-inch Focuser; Cradle Rings w/ Handle and Vixen-Style Dovetail; 8x50 Straight Finder scope; 99% Reflective 2-inch Diagonal with 1.25-inch Adapter. Model number DAR102065-01.

Product Details

The latest addition to the Air-Spaced Doublet AR Series is the very portable, grab-and-go 102mm!

Like its two larger brothers, the AR127, and the AR152, these are classic air-spaced, crown-and-flint, doublet achromatic refractors with superior-class optical figure, in a short (f/6.5) focal length design. These optics are an extreme value, produce stunning images of deep sky objects, double stars, planets, and the moon that are a small fraction of the price of comparable aperture apochromat refractors. Finally one can own a diffraction-limited high quality refractor for a relatively modest investment.

Designed to handle the rigors of public star parties and educational outreach, the Explore Scientific AR Series has standard hardware which includes a precision two-speed focuser, a 99% Reflective 2-inch Diagonal Mirror, and an 8x50 Finder Scope. You can be confident that the quality and construction of these telescopes will allow heavy use for many years and are backed with the Explore STAR Transferrable Extended Life of the Product Warranty.

It's All About the Optics!
The optics in their collimatable lens cell are fully multi-coated to eliminate light scatter and maintain image contrast. We precision collimate every Explore Scientific telescope at our factory to give optimum performance. Although you may never need to adjust optical alignment, the AR Series allows for collimating the lens set should the telescope ever require it.

Deluxe Two-Speed Focuser
The Explore Scientific Air-Spaced Doublet AR Series telescopes include a precision 2-inch two-speed as standard equipment. The eyepiece holder uses a compression ring to prevent the eyepiece or camera barrel from scoring.

On those pristine nights of steady seeing, Saturn's Rings can forever affect the hearts and minds of almost anyone who lays eyes on them. It's nights like these that astronomers like to set up their refractors and push the magnification to the limits, not only to see the magnificence of the planet at greater scale but to really test the optical and mechanical quality of the telescope.

Many telescopes are only supplied with a standard single-speed focuser, you will find that a tiny nudge will throw out focus and turn your night into one of frustration.

So we included as standard equipment, on all Explore Scientific AR Series, a two-speed precision focuser with tension adjustment and lock to obtain and hold perfect focus. We think you'll agree that such precision is worth it.

Universal Mounting Plate
The Universal Adjustable Mounting Plate of the AR 102 fits on many popular equatorial and Altaz mounts, including mounts supplied by Explore Scientific, Celestron, Vixen, and others.

Instead of using a cast metal part, Explore Scientific's Universal Mounting Plate is made from extruded aluminum for added strength, it is afterall what secures your telescope to the mount. We also include adjustment screws and locking bolts to allow adjustments to position the angle of the telescope when it is placed on its mount, an important feature when using an equatorial mount.

Viewing Comfort and the Preservation of Precious Light
The Two-Inch Dielectric Diagonal includes a 1.25" eyepiece holder adapter and dust covers to protect the mirror.

The purpose of a diagonal is to securely hold your eyepiece and to give you a comfortable viewing angle. Provided as standard equipment, Explore Scientific's Two Inch Dielectric Diagonal incorporates a light-weight, one-piece diagonal body that securely cradles the precision polished diagonal flat mirror, insuring precision alignment. Ultra-high reflective coatings (99% reflective) composed of multiple thin layers of dielectric material delivers maximum light output.

Both 2" and 1.25" eyepiece holders use compression rings instead of a simple set-screw to more securely hold your valued eyepiece (or imaging device) and to minimize scoring of eyepiece barrels. You can thread standard 48mm filters into the barrel.

The purpose of a diagonal is to securely hold your eyepiece and to give you a comfortable viewing angle. Provided as standard equipment, Explore Scientific's Two Inch Diagonal incorporates a light-weight, one-piece diagonal body that securely cradles the precision polished diagonal flat mirror, insuring precision alignment.

8x50 Finder Scope
The Explore Scientific 8x50 Finder Scope provides a true field of view of 6°. Its coated optics provide a bright high-resolution image so that many faint stars and nebulosity can be detected for precise aiming.

The front objective can be custom focused to provide a sharp image every time.

Explore STAR Transferrable Extended Life of the Product Warranty!
Buy a telescope for yourself or give it as a gift, then send in the registration form to receive our exclusive Explore STAR Warranty in the Americas!

All Explore Scientific telescopes and telescope accessories are covered under our standard U.S.A. One Year Limited Warranty against defects with proof of purchase, but you can extend this limited warranty to Explore STAR by simply filling out the product registration and submit it in within 60 days.

This program is also available to the person who receives your gift of an Explore Scientific telescope. You don't need to give them the purchase receipt, just remind them to fill out the registration and submit it, and we'll take care of the rest.

Other Information

  • Country of Manufacture: China
Optical Design: Air-Spaced Doublet Achromatic Refractor
Clear Aperture: 102mm
Focal Length: 663mm
Focal Ratio: f/6.5
Resolving Power: 1.14 arc seconds
Coatings: Fully Multi-Coated
Limiting Stellar Magnitude: 12.5
Focuser: Two-Speed w/ Adjustable Tension and Lock
Finder Scope: 8x50 Straight; Adjustable Objective Focus; Dual-Ring, Six-Point, Bracket w/Quick Release Shoe
Cradle/Saddle Plate: Dual Ring Style - Fits Explore Scientific Mounts; and Other Third Party Mounts that Accept Vixen-Type Rail
Tube Diameter: 3.96" - 100.7mm
Dew Shield Diameter: 7.5" - 100.7mm
Tube Length (eyepiece holder to end of dew shield: 25.5" - 648mm
Tube Construction: Aluminum; Stainless Steel
Optical Tube Assembly Weight (with all standard accessories): 11.3 lbs - 4.67 kg
