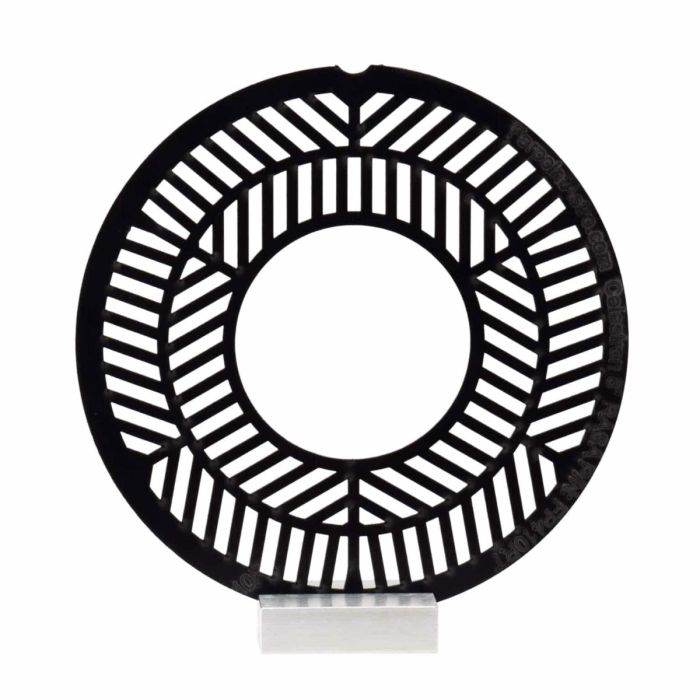

Farpoint Tri-Bahtinov Focus and Collimation Mask for Celestron 11" Classic SCT
This item has been discontinued by Agena and we no longer offer this.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Tri-Bahtinov Mask based off the classic Bahtinov mask: it allows to focus a bit more objective compared to visual star focusing.
The Bahtinov will produce Cross-shaped stars, with one clear line that moves along the cross as you focus. When the line is centered on the cross, you should have achieved perfect focus.
What is the Tri-Bahtinov?
It essentially three Bahtinov masks in one, rotated over 120 degrees. It gives you three lines and three crosses to check collimation, along three axis simultaneously.
In addition to focusing, the tri-Bahtinov so also indicates collimation status along three axis.
This is interesting for e.g. Schmidt-Cassegrain telescopes, where the collimation is done by push-pull screws of the secondary mirror along three axis.
When you position the tri-Bahtinov alongside these axis, it will give you insight not only per axis of the focus but also how different these focus points are for each axis.
Bahtinov mask is a less expensive method of getting focus on objects in the night sky compared to a standard motor focuser.
With the right mask and setup, it’s easy to get crystal clear focus on a star in less than 90 seconds.
How it Works
The slits in the mask are the focus assist, when the star is in focus it will appear on your screen display as an “X” with a line through the center (see above).
These mask will work equally as well on the end of a scope or on the end of a dew shield on top of that the mask itself does not need to be perfected centered on the scope this is due to the angle of the slits themselves.
Select a bright star, this will be your guiding object. Place the Bahtinov focusing mask on your telescope’s lens and secure it into place using the provided rubber tabs.
The slits in the mask design create a set of diffraction spikes on the star that will assist in the accuracy of our focus. It will appear on your DSLR display screen or computer as an “X” with a line through the center (when in focus).
As you adjust the focuser of your telescope, the central spike will move in and out of the X-pattern. If you are using capture software be sure to compensate for the lag time between exposures on the screen, typically 4-5 seconds.
The same process applies using Live view display on your DSLR camera. The difference is, the image will be much dimmer, as you are essentially looking at a live video feed rather than a short image exposure.
Additional Info
- The Tri-Bahtinov Mask is an advanced version of the Bahtinov mask that allows for even more precise adjustments and can also be used as a collimation tool
- Tri-Bahtinov Focus and Collimation Mask for Celestron 8″ SCT with Hyperstar or Fastar- is an ingenious new way to easily focus a telescope. Pavel Bahtinov, a Russian amateur telescope maker and astronomer, created this simple, very intuitive method and the device has universally been named after him: The Bahtinov Mask.
Other Information
- Country of Manufacture: United States
