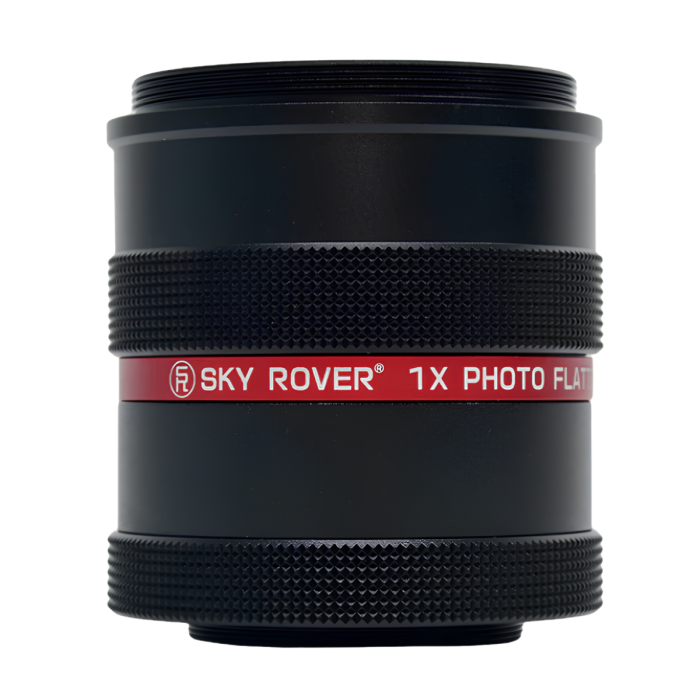

Sky Rover Optics 1x Field Flattener for 90GPS Telescope
Sky Rover's new 1x Field flattener for 90GPS adopts M63X1 front threads and M48X0.75 rear threads, which meet the illumination requirements of full-frame photography. Considering the use of CCD and OAG, the shell can be removed to use, which can have longer work distance to satisfy the use of filter wheel/OGA/CCD.
Specifications
- Model: 1x field flattener for 90GPS
- Magnification: 1x
- Objective Interface: M63X1
- Ocular Interface: M48X0.75
- Filter Threads: M48X0.75
- Back Focus: 55mm
- Net Weight: 420g
Back Focus Diagram (55mm)
Connection Diagram
- Removing the adapter at the end
- Installing filter
- Screwing adapteer into flattener
- Full frame camera will be with light vignetting when install inner 2" filter
Camera Connection Diagram
①1x flattener ②Filter ③Adaptor (M48x0.75 thread) ④SLR mount (M48 T) ⑤SLR ⑥CCD mount ⑦CCD
OAG Connection Diagram
①1x flattener ②Filter ③Adapter (M48x0.75 thread) ④M48 adapter ⑤OAG ⑥Filter wheel ⑦CCD
Other Information
- Country of Manufacture: China
Sky Rover Optics 1x Field Flattener for 90GPS Telescope
Sky Rover's new 1x Field flattener for 90GPS adopts M63X1 front threads and M48X0.75 rear threads, which meet the illumination requirements of full-frame photography. Considering the use of CCD and OAG, the shell can be removed to use, which can have longer work distance to satisfy the use of filter wheel/OGA/CCD.
Specifications
- Model: 1x field flattener for 90GPS
- Magnification: 1x
- Objective Interface: M63X1
- Ocular Interface: M48X0.75
- Filter Threads: M48X0.75
- Back Focus: 55mm
- Net Weight: 420g
Back Focus Diagram (55mm)
Connection Diagram
- Removing the adapter at the end
- Installing filter
- Screwing adapteer into flattener
- Full frame camera will be with light vignetting when install inner 2" filter
Camera Connection Diagram
①1x flattener ②Filter ③Adaptor (M48x0.75 thread) ④SLR mount (M48 T) ⑤SLR ⑥CCD mount ⑦CCD
OAG Connection Diagram
①1x flattener ②Filter ③Adapter (M48x0.75 thread) ④M48 adapter ⑤OAG ⑥Filter wheel ⑦CCD
- 1x Flattener
- 1x Rubber dust cover
- 1x Metal dust cover
