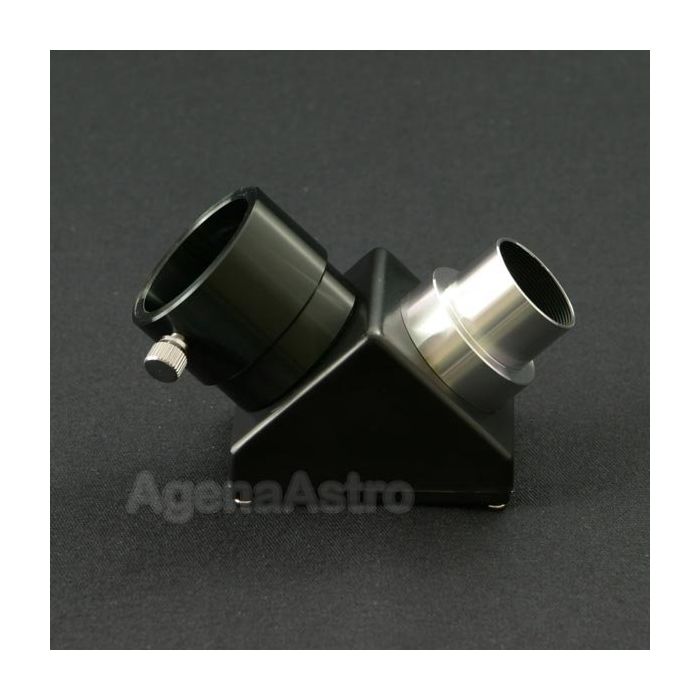

GSO 0.965"/1.25" 90-deg Hybrid Mirror Star Diagonal

This item is discontinued by the manufacturer and is no longer available.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- Economical hybrid 0.965” - 1.25” 90-deg star diagonal for refractor or catadioptric scopes
- Allows use of 1.25” eyepieces and accessories in telescopes with 0.965” focusers
- Dual-step aluminum barrel also allows diagonal to fit directly into 1.25” focusers
- Aluminized 1/10-wave mirror with SiO2 coating at 92% reflectivity
Important Note: Please note that the length of the 0.965" nosepiece, as listed below, is 15mm (0.59"). Before purchase, please make sure that the thumbscrew on your telescope is within this distance from the rear end of your focuser drawtube. Otherwise, the thumbscrew will not be able to engage and lock the diagonal. This is a known issue with some vintage telescopes in which the locking thumbscrew on the telescope is recessed by more than 0.6", and this diagonal will not work for you.
Disappointed by the lack of quality 0.965" eyepieces for your vintage telescope? Missing a diagonal for that small telescope you picked up in a garage sale? Wish you could use wider angle 1.25" eyepieces with your small spotting scope? Here's the solution you need!
Many vintage telescopes sold up to the 1960s, cheap introductory telescopes sold today, and many spotting scopes use a smaller, older, almost obsolete 0.965" diameter format for diagonals and eyepieces. Having a 0.965" barrel severely limits the number of eyepieces and accessories you can buy and use in the after-market.
This popular hybrid diagonal from GSO allows 1.25" eyepieces, diagonals, and other accessories to be used in 0.965" focusers, and at once allows hundreds of more common 1.25" format astronomy items to be used with your telescope.
GSO's hybrid 0.965"-1.25" 90-degree mirror diagonal features Al+SiO2 coatings with 92% reflectivity across the visible spectrum and a 1/10 wave mirror. The main mirror housing is made of precision molded ABS plastic and the two end barrels are precision machined from aluminum.
A unique feature of this hybrid diagonal is the use of a dual step 0.965"/1.25" chrome barrel on the telescope end. While designed primarily for use with 0.965" focusers, the step barrel also allows you to use this diagonal in 1.25" focusers (although your field of view might vignette in some situations if used in this manner). Total length of the nosepiece is 25mm (0.98"); length of 1.25" portion of nosepiece = 10mm (0.39"); length of 0.965" portion of nosepiece = 15mm (0.59").
Weight: 3.5oz; 2 end caps included. Made in Taiwan.
Please Note: This diagonal can only be used with refractor telescopes and some catadioptric telescopes like Schmidt-Cassegrain, Maksutov-Cassegrain, etc. It not meant for use with Newtonian / Dobsonian reflector telescopes or other variants of Newtonian telescopes.
Other Information
- Country of Manufacture: Taiwan
