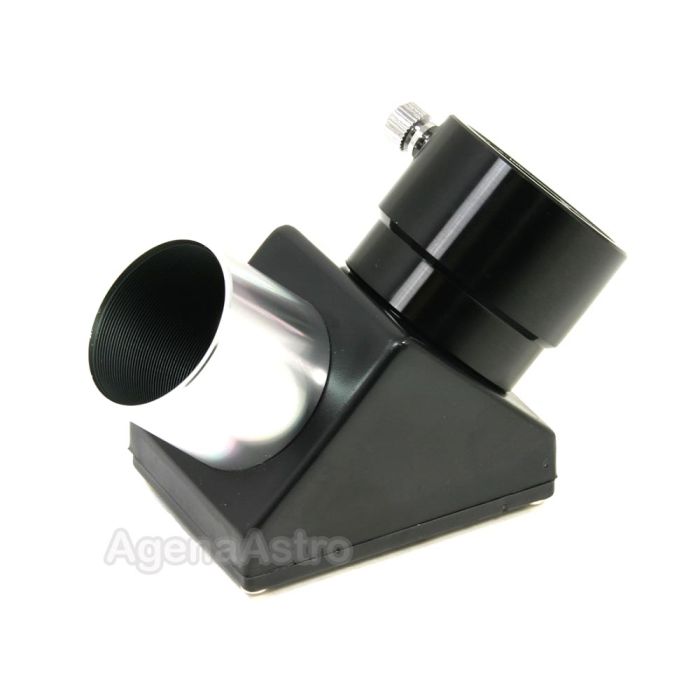

GSO 1.25" 90-deg Mirror Star Diagonal for Refractors
This item is discontinued by the manufacturer and is no longer available.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- Economical 1.25” 90-deg star diagonal for refractor or catadioptric scopes
- Aluminized 1/10-wave mirror with SiO2 coating at 92% reflectivity
- Threaded for standard 1.25” filters
New version: Now with brass compression ring!
GSO's 90-deg mirror diagonal is a very good, economical replacement for the generic diagonal that probably came with your otherwise fine scope. Features Al+SiO2 coatings with 92% reflectivity across the visible spectrum and a 1/10 wave mirror.
The clear aperture is 27.9mm. The main mirror housing is made of precision molded ABS plastic and the two end barrels are precision machined from aluminum. The 1.25" nosepiece is threaded to accept standard 1.25" astronomy filters. Weight: 4.4oz; 2 end caps included. Made in Taiwan.
GSO has not specified the optical path length of this diagonal, but our measurements indicate that is is 76mm.
Please Note: This diagonal can only be used with refractor telescopes and some catadioptric telescopes like Schmidt-Cassegrain, Maksutov-Cassegrain, etc. It not meant for use with Newtonian / Dobsonian reflector telescopes or other variants of Newtonian telescopes.
Other Information
- Country of Manufacture: Taiwan
New version: Now with brass compression ring!
GSO's 90-deg mirror diagonal is a very good, economical replacement for the generic diagonal that probably came with your otherwise fine scope. Features Al+SiO2 coatings with 92% reflectivity across the visible spectrum and a 1/10 wave mirror.
The clear aperture is 27.9mm. The main mirror housing is made of precision molded ABS plastic and the two end barrels are precision machined from aluminum. The 1.25" nosepiece is threaded to accept standard 1.25" astronomy filters. Weight: 4.4oz; 2 end caps included. Made in Taiwan.
GSO has not specified the optical path length of this diagonal, but our measurements indicate that is is 76mm.
Please Note: This diagonal can only be used with refractor telescopes and some catadioptric telescopes like Schmidt-Cassegrain, Maksutov-Cassegrain, etc. It not meant for use with Newtonian / Dobsonian reflector telescopes or other variants of Newtonian telescopes.
- Economical 1.25” 90-deg star diagonal for refractor or catadioptric scopes
- Aluminized 1/10-wave mirror with SiO2 coating at 92% reflectivity
- Threaded for standard 1.25” filters
New version: Now with brass compression ring!
GSO's 90-deg mirror diagonal is a very good, economical replacement for the generic diagonal that probably came with your otherwise fine scope. Features Al+SiO2 coatings with 92% reflectivity across the visible spectrum and a 1/10 wave mirror.
The clear aperture is 27.9mm. The main mirror housing is made of precision molded ABS plastic and the two end barrels are precision machined from aluminum. The 1.25" nosepiece is threaded to accept standard 1.25" astronomy filters. Weight: 4.4oz; 2 end caps included. Made in Taiwan.
GSO has not specified the optical path length of this diagonal, but our measurements indicate that is is 76mm.
Please Note: This diagonal can only be used with refractor telescopes and some catadioptric telescopes like Schmidt-Cassegrain, Maksutov-Cassegrain, etc. It not meant for use with Newtonian / Dobsonian reflector telescopes or other variants of Newtonian telescopes.
Other Information
- Country of Manufacture: Taiwan
