GSO 10" f/4 Imaging Newtonian Reflector Telescope - Truss Tube OTA # GS-800 NT

Our Price: $1,795.00
Free shipping for this item in the Contiguous US Only Click here for more info

Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.

US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.

International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

Our Product ID: T-GS-GSIN10-T
Manufacturer SKU: GS-800 NT
Item Can Ship: To US Only

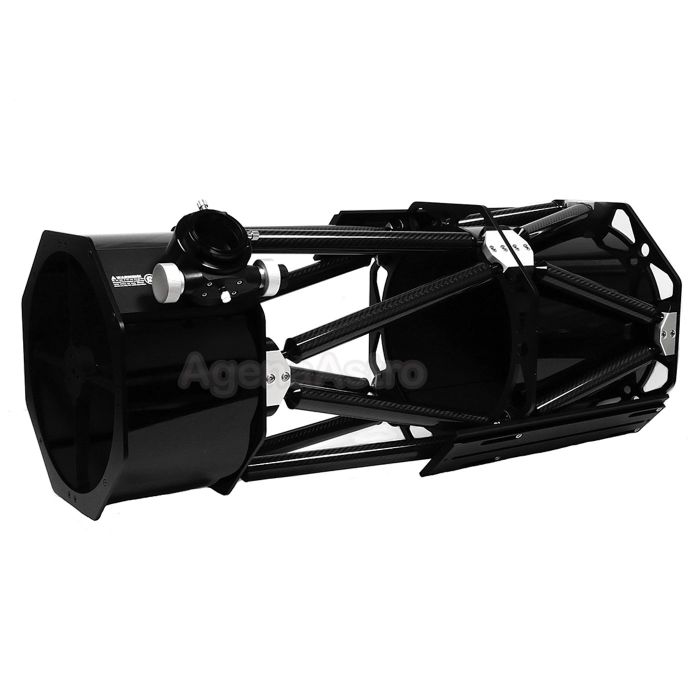

GSO 10" f/4 Imaging Newtonian Reflector Telescope - Truss Tube OTA # GS-800 NT

More Views

Quick Overview

This compact and affordable 250mm (approx. 10") f/4 Newtonian optical tube assembly (OTA) from GSO has fast optics for imaging extended deep-sky objects with a DSLR, webcam, or dedicated astronomy camera. Relatively lightweight and easy to guide, this Newtonian comes ready to go out of the box with a 3.25" Crayford-style focuser with 2" eyepiece holder, carbon-fiber truss tube, an 8x50 straight-through finder, and two Losmandy-style dovetail plates.

  • Fast 10" f/4 Newtonian optics for wide-field imaging with DSLRs and a wide range of CCD and CMOS astronomy cameras
  • Fully and rigorously tested on site for cosmetics, mechanical operation, and optical performance by a master optician to ensure excellent overall telescope operation and customer satisfaction (an Agena exclusive service)
  • Dual-speed 3.25" Crayford linear bearing focuser securely holds your camera and accessories with minimal wear and flexure
  • Includes 2" 35mm-long extension tube and 2"-1.25" eyepiece adapter
  • Two Losmandy-style dovetail plates
  • 8x50 straight-through achromatic finder mounted on quick-release bracket
  • Center dot on primary mirror for quick and easy collimation
  • Carbon-fiber truss tube to minimize thermal effects; Shielded primary and secondary mirrors to reduce stray light and improve image contrast
  • Three low noise, long-lifetime cooling fans on primary mirror cell powered by 8 AA batteries (not included)

Product Details

1. Portable, Light Weight, and Economical

The GSO 250mm (approx. 10") f/4 imaging Newtonian offers a fast focal ratio that's ideal for capturing wide-field images of hundreds of celestial objects. The 1,000mm focal length keeps the tube length to a farily compact 32.6", making it easier to guide during extended exposures. It has a total weight of 36lbs (34lbs-6oz with OTA and focuser only). And with a price that's less than many ED refractors or Ritchey-Chretien scopes, this OTA offers an economical alternative for beginning and advanced imagers.

2. Full Optical and Mechanical Testing and Quality Control - An Agena Exclusive!

GSO telescopes are available from several suppliers, but Agena does much more than simply move the telescope boxes from GSO to you. Each GSO imaging Newtonian telescope at Agena undergoes a thorough physical, mechanical, and optical evaluation at our shop upon arrival - all at no extra cost to you.

Every GSO telescope is inspected to ensure good cosmetics, collimation, smooth focuser operation, and to make sure all parts are included by the manufacturer. Most importantly, we also check each telescope using a rigorous three-point on-site optical evaluation consisting of the following optical bench tests to ensure that your telescope delivers excellent optical performance:

  • Foucault Test: This knife-edge test is performed at the center of curvature of the primary mirror to evaluate the quality of the mirror's conic shape.
  • Ronchi Test: We then perform a Ronchi grating test at the center of curvature at inside focus, at focus, and outside focus. This is a qualitative method to evaluate primary mirror smoothness and figure.
  • Star test: Finally, we collimate the complete telescope and perform an autocollimation test with an artificial star to examine the overall system's image performance at the focus point.

This testing is performed and certified by a master optician to make sure each GSO instrument sold by Agena has excellent optical performance before it ships. Each telescope should be ready to go out of the box when you receive it.

3. Fast and Precision Optics

The precisely figured 10" f/4 primary mirror is made from BK7 optical glass for enhanced thermal stability. BK7 is far superior in thermal characteristics to soda lime float glass - the glass used in consumer products like cookware - that's used in many reflectors in this price range. The mirror is coated with enhanced aluminum to at least 92% reflectivity and coated with a protective layer of SiO2 (quartz) for durability. The primary mirror is mounted in a cell with six external push-pull collimation knobs on the back of the tube, and the center-marked primary makes collimation with a laser a snap.

With a cropped-sensor DSLR camera or an astronomy camera such as the ZWO ASI071MC-Pro with an APS-C sensor, this scope gives a wide field of view, more than enough to frame the brightest regions of extended deep-sky objects like the Andromeda and Triangulum galaxies, the Orion Nebula, and the Horsehead Nebula.

4. Focuser and Accessories

The solid dual-speed 3.25" Crayford-style linear bearing focuser with 2" eyepiece holder handles DSLR cameras, webcams, astronomy video cams, and large sensor CCD and CMOS cameras for astrophotography. It also has a tension knob to allow you to secure heavier loads. The ridged focus knobs give you a good feel and grip, even with gloved hands in cold weather, and the 10:1 fine focus knob lets you snap your image into perfect focus. The drawtube of the focuser is engineered to have minimal wear and very little flexure with most cameras. It offers 2" of focus travel and includes a focusing scale on the top of the drawtube to make it easy to return to the correct focus position during each observing session.

This OTA comes with a 1.25" eyepiece adapter with compression ring so you can use cameras with 1.25" nose pieces, and it includes a 2" extension tube with 35mm (1.38") extension to give you flexibility in back-focus adjustment for visual use. This instrument can also be used with 1.25" or 2" eyepieces for visual observations of solar system or deep sky objects. It includes a big 8x50 straight-through achromatic finder with non-illuminated crosshair.

5. Tube and Mounting Rings

This imaging Newtonian uses a truss tube made from carbon-fiber struts and CNC-machined stainless steel and aluminum hardware for good thermal stability. The tube includes two Losmandy-style plates for mounting on a solid equatorial mount and for accessories such as guides scopes. The tube is 15.25" in diameter and 36.2" long. The primary mirror cell also includes three long-lifetime cooling fans powered by 8 AA batteries (not included). Both the primary and diagonal mirrors include built-in light shields to block stray light and improve image contrast. The scope includes a cap for the primary mirror.

6. What's in the Box

  • 250mm f/4 Newtonian optical tube assembly
  • 3.25" Crayford-style linear bearing focuser with 2" eyepiece holder and 1.25" eyepiece adapter
  • 8x50mm straight-through finder with bracket and base
  • Carbon-fiber truss trube
  • Two Losmandy-style dovetail rails
  • 2" extension tube with 35mm extension
  • Primary mirror cap
  • No instruction manual is included at this time (coming soon)

7. Specifications

  • Optical design: Newtonian reflector
  • Aperture: 250mm (9.8")
  • Focal ratio: f/4
  • Focal length: 1,000mm
  • Primary mirror: Parabolic primary mirror; minimum 92% reflectivity; protective quartz layer
  • Secondary mirror: Minimum 92% reflectivity; protective quartz layer
  • Secondary mirror holder: 4-vane all metal spider
  • Tube outside diameter: 15.25"
  • Tube length = 32.6"
  • Tube weight (with included accessories): 36lbs
  • Shipped size / weight = 38"x22"x21" / 49lbs-4oz
  • Warranty: 2 years
