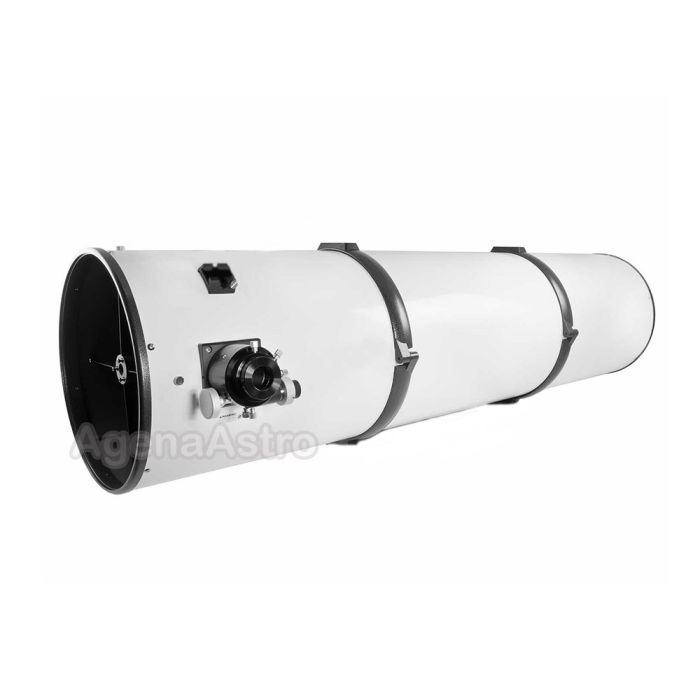

GSO 12" f/5 Newtonian Reflector Telescope with LB Focuser Upgrade - Steel OTA (White)
This item has been discontinued by Agena and we no longer offer this.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
The GS930 GSO 12" f/5 telescope (sold separately) comes with a very capable dual speed Crayford focuser. While that included focuser is adequate for visual or light imaging use, serious astrophotographers might want to upgrade to this GS930-LRN version of the same scope that features the more robust and heavier-duty Linear Bearing Crayford Focuser.
To learn about the advantages of the linear bearing focuser over the standard dual speed Crayford focuser, please see the "Eliminate Focuser Drawtube Slop" section at this link.
This linear bearing focuser has 50mm of tube travel compared to 40mm in the regular Crayford focuser and its body is a bit taller. Due to this you will also lose 5mm of available backfocus compared to the regular dual speed version.
Other than the focuser, the GS930 and GS930-LRN are identical.
This affordable 300mm (approx. 12") f/5 Newtonian optical tube assembly (OTA) from GSO has fast optics for wide-field views of the night sky. With classic Newtonian optics, this scope is easy to use and comes ready to go out of the box. It includes a 2" dual-speed linear-bearing Crayford-style focuser, dual split-hinged mounting rings, a 8x50mm straight-through finder, and a 15.5" Losmandy/Synta-style black dovetail plate..
- Fast 12" f/5 Newtonian optics for wide-field observations of the night sky
- Fully and rigorously tested on site for cosmetics, mechanical operation, and optical performance by a master optician to ensure excellent overall telescope operation and customer satisfaction (an Agena exclusive service)
- Dual-speed 2" linear bearing Crayford focuser securely holds your eyepiece or lightweight camera with minimal wear and flexure
- Includes 2" 35mm-long extension tube and 2"-1.25" eyepiece adapter
- 15.5" black Losmandy-style dovetail plate with dual split-hinged felt-lined mounting rings to protect tube finish
- 8x50mm straight-through achromatic finder mounted on quick-release bracket
- Center dot on primary mirror for quick and easy collimation
- Solid rolled steel telescope tube with gloss white exterior finish and matte black interior finish to increase contrast and minimize thermal effects
1. Portable, Light Weight, and Economical
The GSO 300mm (approx. 12") f/5 Newtonian offers a fast focal ratio that's ideal for observing wide-field views of deep sky objects. The 1500mm focal length makes for a tube length of about 56.6". With a total weight of only 50lbs 6oz (with all included accessories) this scope is ideal for use with a heavy-duty equatorial mount. And with a price that's far less than many small ED refractors or Ritchey-Chretien scopes, this OTA offers an economical alternative for imagers and visual observers on a budget who want a larger aperture.
While this scope has a smaller field of view than a faster f/4 Newtonian, it exhibits less coma and field curvature, especially when used for visual observing with long focal-length eyepieces or small cameras.
2. Full Optical and Mechanical Testing and Quality Control - An Agena Exclusive!
GSO telescopes are available from several suppliers, but Agena does much more than simply move the telescope boxes from GSO to you. Each GSO imaging Newtonian telescope at Agena undergoes a thorough physical, mechanical, and optical evaluation at our shop upon arrival - all at no extra cost to you.
Every GSO telescope is inspected to ensure good cosmetics, collimation, smooth focuser operation, and to make sure all parts are included by the manufacturer. Most importantly, we also check each telescope using a rigorous three-point on-site optical evaluation consisting of the following optical bench tests to ensure that your telescope delivers excellent optical performance:
- Foucault Test: This knife-edge test is performed at the center of curvature of the primary mirror to evaluate the quality of the mirror's conic shape.
- Ronchi Test: We then perform a Ronchi grating test at the center of curvature at inside focus, at focus, and outside focus. This is a qualitative method to evaluate primary mirror smoothness and figure.
- Star test: Finally, we collimate the complete telescope and perform an autocollimation test with an artificial star to examine the overall system's image performance at the focus point.
This testing is performed and certified by a master optician to make sure each GSO instrument sold by Agena has excellent optical performance before it ships. Each telescope should be ready to go out of the box when you receive it.
3. Fast and Precision Optics
The precisely figured 12" f/5 primary mirror is made from BK7 optical glass for enhanced thermal stability. BK7 is far superior in thermal characteristics to soda lime float glass - the glass used in consumer products like cookware - that's used in many reflectors in this price range. The mirror is coated with enhanced aluminum to at least 92% reflectivity and coated with a protective layer of SiO2 (quartz) for durability. The primary mirror is mounted in a cell with six external push-pull collimation knobs on the back of the tube, and the center-marked primary makes collimation with a laser a snap.
4. Focuser and Accessories
The solid dual-speed 3.25" Crayford-style linear bearing focuser with 2" eyepiece holder handles DSLR cameras, webcams, astronomy video cams, and large sensor CCD and CMOS cameras for astrophotography. It also has a tension knob to allow you to secure heavier loads. The ridged focus knobs give you a good feel and grip, even with gloved hands in cold weather, and the 10:1 fine focus knob lets you snap your image into perfect focus. The drawtube of the focuser is engineered to have minimal wear and very little flexure with most cameras. It offers 2" of focus travel and includes a focusing scale on the top of the drawtube to make it easy to return to the correct focus position during each observing session.
This OTA comes with a 1.25" eyepiece adapter with a compression ring to match 1.25" eyepieces and accessories, and it includes a 35mm-long 2" extension tube to let you achieve focus with a 1.25" or 2" eyepiece when using the telescope for visual use. It includes a 8x50mm straight-through achromatic finder with non-illuminated crosshair.
5. Tube and Mounting Rings
The tube of this Newtonian is made from rolled steel for good thermal stability and it's capped with end rings of die-cut aluminum for protection and rigidity. It includes a dust cap. The scope also comes with two split-hinged die-cast aluminum mounting rings to protect the finish of the tube. These rings make it easy to rotate the tube to bring the focuser and finder to the most comfortable viewing position. The bottoms of the rings have threaded mounting holes for a Vixen-style mounting plate (which is included).
The tube also has an attractive outside gloss white finish and a matte black interior finish to reduce stray reflection and increase image contrast. The tube is 13.6" in diameter (14.25" at the end rings), 56.6" long, and it extends beyond the focuser to act as a shield to prevent stray light from entering the tube and reducing image contrast.
6. What's in the Box
- 300mm f/5 Newtonian optical tube assembly
- 2" dual-speed linear-bearing Crayford-style focuser with 1.25" eyepiece adapter
- 8x50mm straight-through finder with bracket and base
- Tube rings
- 15.5" Losmandy-style black dovetail Plate
- 2" extension tube with 35mm extension
- Front dust cover
- No instruction manual is included
7. Specifications
- Optical design: Newtonian reflector
- Aperture: 300mm (11.8")
- Focal ratio: f/5
- Focal length: 1500mm
- Primary mirror: Parabolic primary mirror; minimum 92% reflectivity; protective quartz layer
- Secondary mirror: 70mm minor axis diameter; minimum 92% reflectivity; protective quartz layer
- Secondary mirror holder: 4-vane all metal spider
- Secondary obstruction size: 23.3% by diameter; 5.4% by area
- Tube outside diameter: End rings = 14.25"; tube = 13.6"
- Tube length = 56.6"
- Tube weight (with all included accessories): 50lbs 6oz
- Shipped size / weight = 61"x20"x20" / 68lbs-4oz
- Inspected for collimation and focuser operation at Agena AstroProducts
- Warranty: 2 years
Other Information
- Country of Manufacture: Taiwan
1. Portable, Light Weight, and Economical
The GSO 300mm (approx. 12") f/5 Newtonian offers a fast focal ratio that's ideal for observing wide-field views of deep sky objects. The 1500mm focal length makes for a tube length of about 56.6". With a total weight of only 50lbs 6oz (with all included accessories) this scope is ideal for use with a heavy-duty equatorial mount. And with a price that's far less than many small ED refractors or Ritchey-Chretien scopes, this OTA offers an economical alternative for imagers and visual observers on a budget who want a larger aperture.
While this scope has a smaller field of view than a faster f/4 Newtonian, it exhibits less coma and field curvature, especially when used for visual observing with long focal-length eyepieces or small cameras.
2. Full Optical and Mechanical Testing and Quality Control - An Agena Exclusive!
GSO telescopes are available from several suppliers, but Agena does much more than simply move the telescope boxes from GSO to you. Each GSO imaging Newtonian telescope at Agena undergoes a thorough physical, mechanical, and optical evaluation at our shop upon arrival - all at no extra cost to you.
Every GSO telescope is inspected to ensure good cosmetics, collimation, smooth focuser operation, and to make sure all parts are included by the manufacturer. Most importantly, we also check each telescope using a rigorous three-point on-site optical evaluation consisting of the following optical bench tests to ensure that your telescope delivers excellent optical performance:
- Foucault Test: This knife-edge test is performed at the center of curvature of the primary mirror to evaluate the quality of the mirror's conic shape.
- Ronchi Test: We then perform a Ronchi grating test at the center of curvature at inside focus, at focus, and outside focus. This is a qualitative method to evaluate primary mirror smoothness and figure.
- Star test: Finally, we collimate the complete telescope and perform an autocollimation test with an artificial star to examine the overall system's image performance at the focus point.
This testing is performed and certified by a master optician to make sure each GSO instrument sold by Agena has excellent optical performance before it ships. Each telescope should be ready to go out of the box when you receive it.
3. Fast and Precision Optics
The precisely figured 12" f/5 primary mirror is made from BK7 optical glass for enhanced thermal stability. BK7 is far superior in thermal characteristics to soda lime float glass - the glass used in consumer products like cookware - that's used in many reflectors in this price range. The mirror is coated with enhanced aluminum to at least 92% reflectivity and coated with a protective layer of SiO2 (quartz) for durability. The primary mirror is mounted in a cell with six external push-pull collimation knobs on the back of the tube, and the center-marked primary makes collimation with a laser a snap.
4. Focuser and Accessories
The solid dual-speed 3.25" Crayford-style linear bearing focuser with 2" eyepiece holder handles DSLR cameras, webcams, astronomy video cams, and large sensor CCD and CMOS cameras for astrophotography. It also has a tension knob to allow you to secure heavier loads. The ridged focus knobs give you a good feel and grip, even with gloved hands in cold weather, and the 10:1 fine focus knob lets you snap your image into perfect focus. The drawtube of the focuser is engineered to have minimal wear and very little flexure with most cameras. It offers 2" of focus travel and includes a focusing scale on the top of the drawtube to make it easy to return to the correct focus position during each observing session.
This OTA comes with a 1.25" eyepiece adapter with a compression ring to match 1.25" eyepieces and accessories, and it includes a 35mm-long 2" extension tube to let you achieve focus with a 1.25" or 2" eyepiece when using the telescope for visual use. It includes a 8x50mm straight-through achromatic finder with non-illuminated crosshair.
5. Tube and Mounting Rings
The tube of this Newtonian is made from rolled steel for good thermal stability and it's capped with end rings of die-cut aluminum for protection and rigidity. It includes a dust cap. The scope also comes with two split-hinged die-cast aluminum mounting rings to protect the finish of the tube. These rings make it easy to rotate the tube to bring the focuser and finder to the most comfortable viewing position. The bottoms of the rings have threaded mounting holes for a Vixen-style mounting plate (which is included).
The tube also has an attractive outside gloss white finish and a matte black interior finish to reduce stray reflection and increase image contrast. The tube is 13.6" in diameter (14.25" at the end rings), 56.6" long, and it extends beyond the focuser to act as a shield to prevent stray light from entering the tube and reducing image contrast.
6. What's in the Box
- 300mm f/5 Newtonian optical tube assembly
- 2" dual-speed linear-bearing Crayford-style focuser with 1.25" eyepiece adapter
- 8x50mm straight-through finder with bracket and base
- Tube rings
- 15.5" Losmandy-style black dovetail Plate
- 2" extension tube with 35mm extension
- Front dust cover
- No instruction manual is included
7. Specifications
- Optical design: Newtonian reflector
- Aperture: 300mm (11.8")
- Focal ratio: f/5
- Focal length: 1500mm
- Primary mirror: Parabolic primary mirror; minimum 92% reflectivity; protective quartz layer
- Secondary mirror: 70mm minor axis diameter; minimum 92% reflectivity; protective quartz layer
- Secondary mirror holder: 4-vane all metal spider
- Secondary obstruction size: 23.3% by diameter; 5.4% by area
- Tube outside diameter: End rings = 14.25"; tube = 13.6"
- Tube length = 56.6"
- Tube weight (with all included accessories): 50lbs 6oz
- Shipped size / weight = 61"x20"x20" / 68lbs-4oz
- Inspected for collimation and focuser operation at Agena AstroProducts
- Warranty: 2 years
The GS930 GSO 12" f/5 telescope (sold separately) comes with a very capable dual speed Crayford focuser. While that included focuser is adequate for visual or light imaging use, serious astrophotographers might want to upgrade to this GS930-LRN version of the same scope that features the more robust and heavier-duty Linear Bearing Crayford Focuser.
To learn about the advantages of the linear bearing focuser over the standard dual speed Crayford focuser, please see the "Eliminate Focuser Drawtube Slop" section at this link.
This linear bearing focuser has 50mm of tube travel compared to 40mm in the regular Crayford focuser and its body is a bit taller. Due to this you will also lose 5mm of available backfocus compared to the regular dual speed version.
Other than the focuser, the GS930 and GS930-LRN are identical.
This affordable 300mm (approx. 12") f/5 Newtonian optical tube assembly (OTA) from GSO has fast optics for wide-field views of the night sky. With classic Newtonian optics, this scope is easy to use and comes ready to go out of the box. It includes a 2" dual-speed linear-bearing Crayford-style focuser, dual split-hinged mounting rings, a 8x50mm straight-through finder, and a 15.5" Losmandy/Synta-style black dovetail plate..
- Fast 12" f/5 Newtonian optics for wide-field observations of the night sky
- Fully and rigorously tested on site for cosmetics, mechanical operation, and optical performance by a master optician to ensure excellent overall telescope operation and customer satisfaction (an Agena exclusive service)
- Dual-speed 2" linear bearing Crayford focuser securely holds your eyepiece or lightweight camera with minimal wear and flexure
- Includes 2" 35mm-long extension tube and 2"-1.25" eyepiece adapter
- 15.5" black Losmandy-style dovetail plate with dual split-hinged felt-lined mounting rings to protect tube finish
- 8x50mm straight-through achromatic finder mounted on quick-release bracket
- Center dot on primary mirror for quick and easy collimation
- Solid rolled steel telescope tube with gloss white exterior finish and matte black interior finish to increase contrast and minimize thermal effects
1. Portable, Light Weight, and Economical
The GSO 300mm (approx. 12") f/5 Newtonian offers a fast focal ratio that's ideal for observing wide-field views of deep sky objects. The 1500mm focal length makes for a tube length of about 56.6". With a total weight of only 50lbs 6oz (with all included accessories) this scope is ideal for use with a heavy-duty equatorial mount. And with a price that's far less than many small ED refractors or Ritchey-Chretien scopes, this OTA offers an economical alternative for imagers and visual observers on a budget who want a larger aperture.
While this scope has a smaller field of view than a faster f/4 Newtonian, it exhibits less coma and field curvature, especially when used for visual observing with long focal-length eyepieces or small cameras.
2. Full Optical and Mechanical Testing and Quality Control - An Agena Exclusive!
GSO telescopes are available from several suppliers, but Agena does much more than simply move the telescope boxes from GSO to you. Each GSO imaging Newtonian telescope at Agena undergoes a thorough physical, mechanical, and optical evaluation at our shop upon arrival - all at no extra cost to you.
Every GSO telescope is inspected to ensure good cosmetics, collimation, smooth focuser operation, and to make sure all parts are included by the manufacturer. Most importantly, we also check each telescope using a rigorous three-point on-site optical evaluation consisting of the following optical bench tests to ensure that your telescope delivers excellent optical performance:
- Foucault Test: This knife-edge test is performed at the center of curvature of the primary mirror to evaluate the quality of the mirror's conic shape.
- Ronchi Test: We then perform a Ronchi grating test at the center of curvature at inside focus, at focus, and outside focus. This is a qualitative method to evaluate primary mirror smoothness and figure.
- Star test: Finally, we collimate the complete telescope and perform an autocollimation test with an artificial star to examine the overall system's image performance at the focus point.
This testing is performed and certified by a master optician to make sure each GSO instrument sold by Agena has excellent optical performance before it ships. Each telescope should be ready to go out of the box when you receive it.
3. Fast and Precision Optics
The precisely figured 12" f/5 primary mirror is made from BK7 optical glass for enhanced thermal stability. BK7 is far superior in thermal characteristics to soda lime float glass - the glass used in consumer products like cookware - that's used in many reflectors in this price range. The mirror is coated with enhanced aluminum to at least 92% reflectivity and coated with a protective layer of SiO2 (quartz) for durability. The primary mirror is mounted in a cell with six external push-pull collimation knobs on the back of the tube, and the center-marked primary makes collimation with a laser a snap.
4. Focuser and Accessories
The solid dual-speed 3.25" Crayford-style linear bearing focuser with 2" eyepiece holder handles DSLR cameras, webcams, astronomy video cams, and large sensor CCD and CMOS cameras for astrophotography. It also has a tension knob to allow you to secure heavier loads. The ridged focus knobs give you a good feel and grip, even with gloved hands in cold weather, and the 10:1 fine focus knob lets you snap your image into perfect focus. The drawtube of the focuser is engineered to have minimal wear and very little flexure with most cameras. It offers 2" of focus travel and includes a focusing scale on the top of the drawtube to make it easy to return to the correct focus position during each observing session.
This OTA comes with a 1.25" eyepiece adapter with a compression ring to match 1.25" eyepieces and accessories, and it includes a 35mm-long 2" extension tube to let you achieve focus with a 1.25" or 2" eyepiece when using the telescope for visual use. It includes a 8x50mm straight-through achromatic finder with non-illuminated crosshair.
5. Tube and Mounting Rings
The tube of this Newtonian is made from rolled steel for good thermal stability and it's capped with end rings of die-cut aluminum for protection and rigidity. It includes a dust cap. The scope also comes with two split-hinged die-cast aluminum mounting rings to protect the finish of the tube. These rings make it easy to rotate the tube to bring the focuser and finder to the most comfortable viewing position. The bottoms of the rings have threaded mounting holes for a Vixen-style mounting plate (which is included).
The tube also has an attractive outside gloss white finish and a matte black interior finish to reduce stray reflection and increase image contrast. The tube is 13.6" in diameter (14.25" at the end rings), 56.6" long, and it extends beyond the focuser to act as a shield to prevent stray light from entering the tube and reducing image contrast.
6. What's in the Box
- 300mm f/5 Newtonian optical tube assembly
- 2" dual-speed linear-bearing Crayford-style focuser with 1.25" eyepiece adapter
- 8x50mm straight-through finder with bracket and base
- Tube rings
- 15.5" Losmandy-style black dovetail Plate
- 2" extension tube with 35mm extension
- Front dust cover
- No instruction manual is included
7. Specifications
- Optical design: Newtonian reflector
- Aperture: 300mm (11.8")
- Focal ratio: f/5
- Focal length: 1500mm
- Primary mirror: Parabolic primary mirror; minimum 92% reflectivity; protective quartz layer
- Secondary mirror: 70mm minor axis diameter; minimum 92% reflectivity; protective quartz layer
- Secondary mirror holder: 4-vane all metal spider
- Secondary obstruction size: 23.3% by diameter; 5.4% by area
- Tube outside diameter: End rings = 14.25"; tube = 13.6"
- Tube length = 56.6"
- Tube weight (with all included accessories): 50lbs 6oz
- Shipped size / weight = 61"x20"x20" / 68lbs-4oz
- Inspected for collimation and focuser operation at Agena AstroProducts
- Warranty: 2 years
Other Information
- Country of Manufacture: Taiwan
| Telescope Focal Length | 1251 - 1500mm |
|---|
