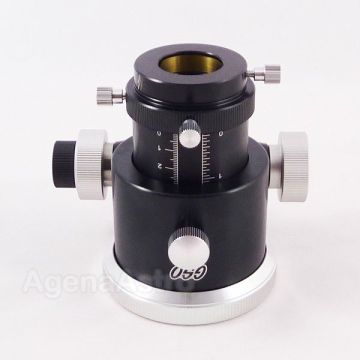

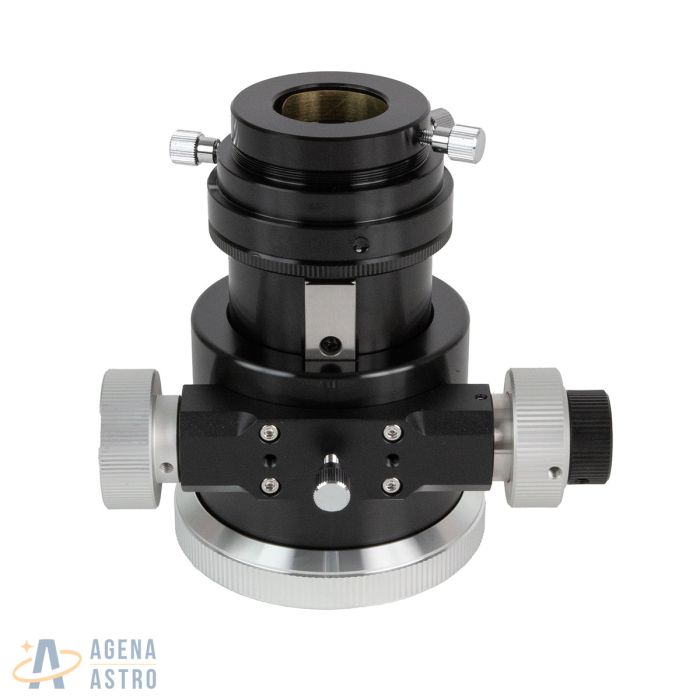

GSO 2" EAF Compatible Linear Bearing Crayford Focuser with Camera Rotator & M56 Thread for 6" or 8" GSO Ritchey-Chretien RC & Classical Cassegrain CC Telescopes
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
New part #: PAF-GS-RC-DW397; Previous part #s: PAF-GS-M-LRS-D-2 or PAF-GS-M-LRS-D-RC
1. Available in 2 Versions:
GSO 2" RC/CC Crayford focusers are available in 2 versions:
- Dual speed linear bearing focuser # GS-M-LRS-2 (sold separately):
Suitable for visual applications with fine focus control for heavier eyepieces or for heavier imaging applications. Not compatible with the ZWO EAF out of the box but can be adapted with 3rd party 3d-printed brackets. - Dual speed ZWO EAF-compatible linear bearing focuser # GS-M-LRS-D-2 (this item):
Suitable for visual applications with fine focus control for heavier eyepieces or for heavier imaging applications. Compatible with select ZWO EAF models out of the box without the need for other 3rd party brackets. A 4mm coupler is included for the current EAFN and EAF-Pro models. A 5mm coupler for older EAF-STD and EAF-5V models is available separately.
2. Description:
This GSO Dual-Speed Linear Focuser for RC (Ritchey-Chretien) or CC (Classical Cassegrain) telescopes features the most recent innovation in focuser design to hit the astronomy market in recent years. It is designed specifically to meet the heavier equipment and stability requirements of astrophotography equipment and heavy eyepieces. The linear stability and repeatable quality of focus reached with this focuser will have you returning night after night for more spectacular views, sharper images, and consistent enjoyment!
A. Eliminate Focuser Drawtube Slop
In conventional Crayford focusers, the drawtube is held in place by four roller bearings. Because of the small area of contact between the focuser tube and these bearings, changes in load or telescope orientation can cause some amount of slop in the focuser drawtube. The new linear bearing focuser is built with a cutting-edge rail system made of stainless steel which provides extended, consistent, and linear contact with the focusing mechanism and the inside of the focuser body, even when the focuser is fully extended. The result is zero flexure throughout the focus travel range, even in the worst case scenario when the focuser is parallel to the ground and carrying a heavy load such as a large CCD camera. This linear bearing rail mechanism also allows the use of heavier loads (GSO's rated load capacity for their linear bearing focusers is about 9 lbs (4.1 kgs)).
B. Smooth Focusing Action
The ultra-smooth focuser adjustment knob is only topped by the 10:1 fine adjustment knob which yields superior fine-tuning that will stay in place without slippage for hours on end. You'll feel as if the focuser is gliding on air as you meticulously seek the perfect focus. For critical imaging applications, the focuser position can be locked in place via the large thumbscrew provided for this purpose on the top of the focuser. The focusing tension can be controlled by another large screw on the underside of the focuser. The drawtube features a laser-etched measurement scale for quick and repeatable focusing.
C. Out of the Box Compatibility with the ZWO EAF Electronic Automatic Focuser
All other versions of GSO's reflector focusers have a rounded or curved housing over the focusing mechanism, making it either impossible or hard to attach ZWO's EAF for automatic focusing control. After our prodding for almost 2 years, GSO redesigned the housing with a flat surface and with additional screw holes to allow users to easily and directly mount the ZWO EAF using the standard mounting bracket that the EAF comes with. The housing in this version is also made of aluminum for a secure, robust fit. Imagers can now use the EAF to precisely control the focuser's movement for visual or critical imaging applications. Note that the EAF is not included and is sold separately. Compatible with select ZWO EAF models out of the box without the need for other 3rd party brackets. A 4mm coupler is included for the current EAFN and EAF-Pro models. A 5mm coupler for older EAF-STD and EAF-5V models is available separately.
D. Very High Quality Construction and Features
The highly polished, anodized black aluminum is complemented by the meticulous CNC machining. Every part is carefully selected and designed to deliver a linear focusing system that will provide both beauty and quality for years to come. The 2" focuser barrel features a brass compression ring. Also included is a 2"-1.25" adapter with brass compression rings and threads to accept standard 2" filters. The focus travel is 2".
E. 360-degree Rotation
These focusers are rotatable, i.e., you can turn the entire focuser body/diagonal/eyepiece combination into a better observing position by loosening the silver collar, turning the focuser body, and locking the silver collar again into place.
F. Telescope Compatibility and Focuser Installation
The telescope end of this focuser has a silver ring with an M90x1 female thread. Thus, it can be easily screwed on to 6" or 8" Ritchey-Chretien telescopes manufactured by GSO that feature this male thread on the rear end. These telescopes are sold all over the world under various brand names (Astro-Tech, GSO, Altair Astro, Orion, iOptron, etc.).
G. Focus Travel Issues
Most Crayford focuser units are shorter than existing R&P focusers. So while you will typically have more in-focus travel with a new Crayford focuser (which is great for imaging or binoviewing applications), you might not have sufficient out-focus travel to reach focus with all your eyepieces/accessories. In such cases, the problem can be easily fixed with 2" extension tubes that are available separately.
3. Specifications:
• Base flange knurled outer diameter = 3.78" (96mm)
• Base flange thread = M90x1 female (90mm nominal diameter; 1mm thread pitch)
• Minimum focuser height (without 1.25" adapter; including flange) = 3.58" (91mm)
• Maximum focuser height (without 1.25" adapter; including flange) = 5.55" (141mm)
• 2"-1.25" adapter height = 0.39" (10mm)
• Tube travel = 1.97" (50mm)
• Drawtube outside diameter = 2.32" (59mm)
• Steel rail width = 0.56" (14.1mm)
• Focuser weight (with 1.25" adapter) = 1lb-15oz (876g)
• Focus knob diameter = 1.57" (40mm)
• Microfocus knob diameter = 1.06" (27mm)
• Maximum outer body diameter = 3.23" (82mm)
• Measurement scale on focuser drawtube: Yes
• Rotatable: Yes
• Dust plug: One 1.25" dust plug included
4. Additional Comments:
• The focuser is shipped in a foam-fitted padded box.
• No instruction manual is included.
Other Information
- Country of Manufacture: Taiwan
