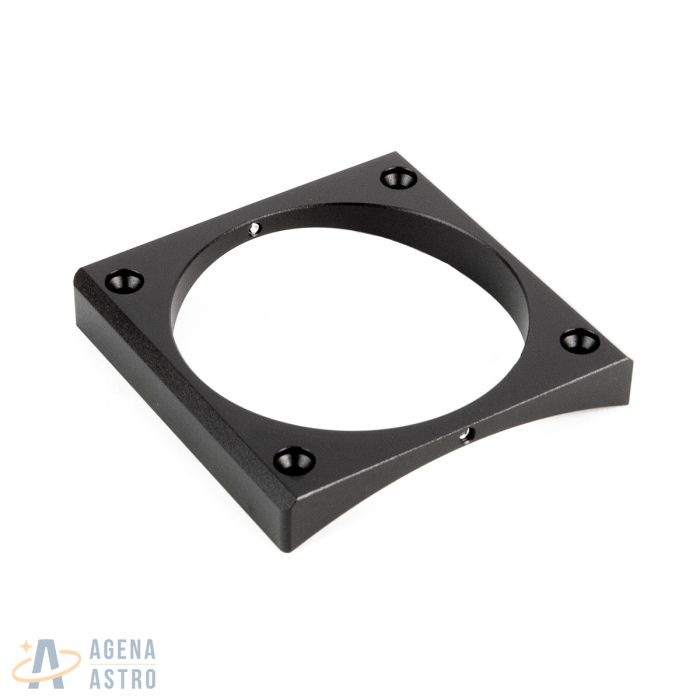

GSO Base Plate for 2" GSO Reflector Focusers - 230mm Curve (For 8"/10" Telescopes)
Sku:
PAF-GS-FF435
Mfg #:
FF435
Item Can Ship:
Worldwide
$20.00
In Stock
(10+ Available)
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
SKU:
PAF-GS-FF435
Mfg #:
FF435
Item Can Ship:
Worldwide
Description
Description
Overview:
- GSO 230mm base plate # FF435 for use with GSO 2" reflector focusers only. Not for use with GSO's 1.25" or 3" focusers.
- Will fit GSO-made 2" reflector focusers sold under other brands like TPO, Apertura, TS, Zhumell, some Orion, some Meade, etc. Should also fit 8"/10" Celestron Star Hopper and Meade Lightbridge (but not Meade Lightbridge Plus) telescopes. May fit some model years of Orion XT dobsonians (but not most). Do not assume that your focuser is made by GSO. If you are not sure about this, email us with a photo of your focuser and we can advise you.
- Not for use with reflector focusers from any other brand (such as Celestron, Sky-Watcher, Long Perng, Astro-Tech, Kuming United Optics, most Orion, most Meade, etc.).
- Designed to fit telescope tubes with an outside diameter of about 9", close to that of many 8" and 10" aperture telescopes.
- If your tube OD (outside diameter) is a little less than 230mm, there will be a small, inconsequential gap between the underside of the base plate and your telescope tube surface. You can plug this gap with foam if you want to.
- If your tube OD is slightly larger than 230mm, you will need to add shims between the base plate's mounting holes and the tube surface and/or carefully align the focuser orientation to make it perpendicular to the telescope's optical axis.
- No mounting screws are included. You may be able to use the ones already on your scope or may need to purchase other ones locally.
- Includes allen key to attach this base plate to your GSO focuser.
- We cannot advise you if this base plate is the right fit for your telescope or focuser as these specifications are not standardized in the astronomy industry. Hence, please do not purchase this item without carefully comparing its specifications to that of your telescope tube.
Key Specifications:
Please detailed the schematic diagram above for more information.
- Base plate curve diameter: 9.06" (230mm)
- Base plate dimensions: 3.54" x 3.54" (90.1mm x 90.1mm)
- Hole Spacing (center-to-center along telescope tube/optical axis): 70mm (2.76")
- Hole Spacing (center-to-center perpendicular to telescope tube; straight line measurement): 73mm (2.87")
- Hole Spacing (center-to-center perpendicular to telescope tube; measured along curve of base plate): 74.3mm (2.93")
- Inside diameter of central hole: 3.07" (77.9mm)
- Mounting hole specification: Unthreaded inside diameter of 4.9mm
Other Information
- Country of Manufacture: Taiwan
Overview:
- GSO 230mm base plate # FF435 for use with GSO 2" reflector focusers only. Not for use with GSO's 1.25" or 3" focusers.
- Will fit GSO-made 2" reflector focusers sold under other brands like TPO, Apertura, TS, Zhumell, some Orion, some Meade, etc. Should also fit 8"/10" Celestron Star Hopper and Meade Lightbridge (but not Meade Lightbridge Plus) telescopes. May fit some model years of Orion XT dobsonians (but not most). Do not assume that your focuser is made by GSO. If you are not sure about this, email us with a photo of your focuser and we can advise you.
- Not for use with reflector focusers from any other brand (such as Celestron, Sky-Watcher, Long Perng, Astro-Tech, Kuming United Optics, most Orion, most Meade, etc.).
- Designed to fit telescope tubes with an outside diameter of about 9", close to that of many 8" and 10" aperture telescopes.
- If your tube OD (outside diameter) is a little less than 230mm, there will be a small, inconsequential gap between the underside of the base plate and your telescope tube surface. You can plug this gap with foam if you want to.
- If your tube OD is slightly larger than 230mm, you will need to add shims between the base plate's mounting holes and the tube surface and/or carefully align the focuser orientation to make it perpendicular to the telescope's optical axis.
- No mounting screws are included. You may be able to use the ones already on your scope or may need to purchase other ones locally.
- Includes allen key to attach this base plate to your GSO focuser.
- We cannot advise you if this base plate is the right fit for your telescope or focuser as these specifications are not standardized in the astronomy industry. Hence, please do not purchase this item without carefully comparing its specifications to that of your telescope tube.
Key Specifications:
Please detailed the schematic diagram above for more information.
- Base plate curve diameter: 9.06" (230mm)
- Base plate dimensions: 3.54" x 3.54" (90.1mm x 90.1mm)
- Hole Spacing (center-to-center along telescope tube/optical axis): 70mm (2.76")
- Hole Spacing (center-to-center perpendicular to telescope tube; straight line measurement): 73mm (2.87")
- Hole Spacing (center-to-center perpendicular to telescope tube; measured along curve of base plate): 74.3mm (2.93")
- Inside diameter of central hole: 3.07" (77.9mm)
- Mounting hole specification: Unthreaded inside diameter of 4.9mm
