Howie Glatter Holographic Attachment for Laser Collimator - Concentric Circle Pattern (New Version)
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- Designed for use with the Howie Glatter Laser Collimator

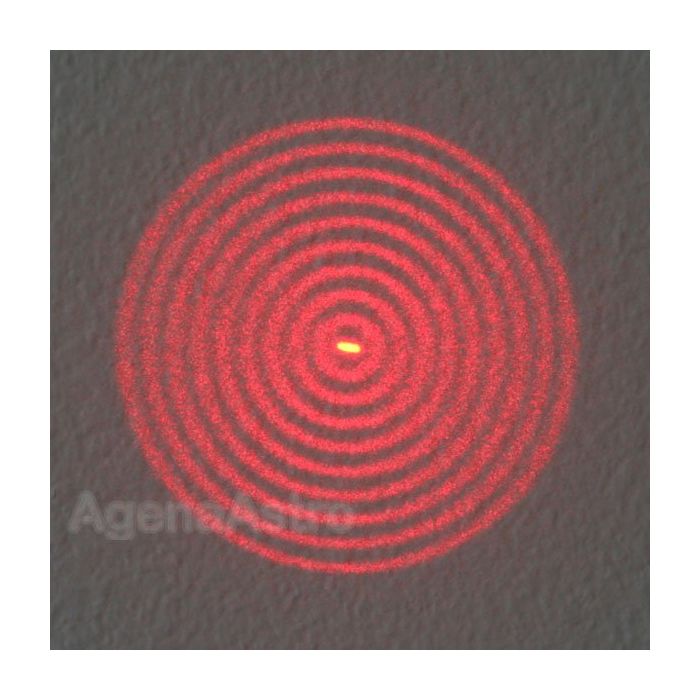

- Screws into the laser aperture and diffracts the laser beam into 9 concentric circles spanning 10 degrees
- Recommended for superb collimation accuracy - especially with f/5.7 or slower Cassegrain telescopes
- Useful for checking and aligning interior baffles
- Allows accurate verification of mechanical centering and aligning the internal elements of the telescope to each other
Please Note:
- This is the new "NV" version and not the old version.
- New Version (this item): Bigger & coarser 3/8-32 thread diameter. Identified by a visible ring. Old Version (no longer available from Agena): Super fine 5/16-56 thread diameter. No visible ring
- If you plan to use one of their holographic attachments such as this item, you need to make sure that you match the "old" Howie Glatter collimator with the "old" holographic attachment, and the "NV" collimator with the "NV" holographic attachment.
Optional holographic attachments for Howie Glatter laser collimators screw into the laser aperture and have a white screen front surface. They contain an optical element that diffracts most of the laser light into a diverging symmetrical pattern around the central beam. The projected pattern is useful for centering optical elements by making it symmetrical with the edge of the optic.
The holographic attachment’s pattern’s nine-concentric circles span 10 degrees and reach to the edge of f/ 5.7 optics. This pattern is recommended for scopes having approximately this focal ratio or slower. It is brighter than the standard square grid pattern because the laser light is spread over a smaller area. This makes it particularly useful with Cassegrain telescopes where the pattern is sometimes seen on the mirror surfaces.
All of the optical elements of the telescope should be centered and made square with the optical axis which should ideally coincide with the mechanical axis of the telescope tube. In practice the procedure may be complicated by restriction of the beam by baffles inside the tube and the refractive elements in some designs. With the holographic attachment, baffles can also be checked and aligned using the projected pattern.
The projected reticle pattern from the collimator is perfectly symmetrical around the central beam so it can be used for verifying mechanical centering. The position of the reticle pattern or central beam projected from one element onto another can be used to align the elements with each other.
Here is the general procedure as prescribed by Howie:
- Check drawtube or back centering with a ruler or caliper
- Check drawtube or back squareness by projecting the single beam down the tube and checking beam centering at the front by measurement from the tube walls
- Check centering of the secondary mirror by measurement from tube walls
- Check that reticle pattern is centered on secondary
- Check centering of the primary by measurement to the tube structure
- Adjust the secondary to reflect the reticle pattern symmetrically onto the primary. This should also fold the central beam back on itself.
- The pattern reflected by the primary is projected in a parallel beam out the front of the telescope.
- The angular adjustment of the primary is done by projecting the pattern onto a surface or screen in front of the telescope and adjusting the primary to center the pattern around the shadow of the secondary or secondary baffle (If a baffle, its centering should be checked).
Some collimation adjustments require observing the position of the reticle pattern on the primary and secondary surfaces. Viewing is done from far enough off-axis so that the reflected reticle pattern is not aimed towards your eyes. The reticle beam dot or pattern on a mirror (or lens) is only seen by light that is scattered from dirt, dust, or optical roughness on the surfaces. Be aware that visibility of the pattern impact can easily wash out in daylight, room light, or low ambient light, especially if the mirrors are clean. Because of this it is recommended that the brighter 635nm collimator be used for Cassegrain collimation in conditions other than darkness.
This item is meant for use ONLY with compatible Howie Glatter laser collimators. It cannot be used with collimators from any other brand.
