IDAS H-a Enhancement Filter with UV/IR Cut - For Select Drop-In Mount Adapters
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- Enhanced Hα Imaging: Boosts the 656.3nm hydrogen-alpha line for cleaner, more detailed emission nebula shots.
- Tames Red Star “Bloat”: Reduces red-end spectrum interference for more natural star color and balanced backgrounds.
- UV/IR Cut with Better Color Balance: Blocks unwanted UV and infrared light while restoring more natural color in modified DSLRs and OSC cameras.
- IGAD Coating Tech: Ultra-durable, high-density coatings with excellent long-term stability against humidity and temperature changes.
- Filter Holder Sold Separately: DRT filter version require a compatible filter drawer or holder, which is not included.
The IDAS DRT framed filters are mounted in a 3d printed holder and designed to be inserted directly into the following ZWO filter drawers:
- Canon EF-EOSR drop-in mount adapter
- Meike MK-EFTR-C (EF-R)
- MK-EFTE-C (EF-E) drop-in mount adapters
- Kolari EF-EOS R Drop-In Filter Mount Adapter For Canon
- RED RF cameras
- More details at: IDAS DRT framed Filter

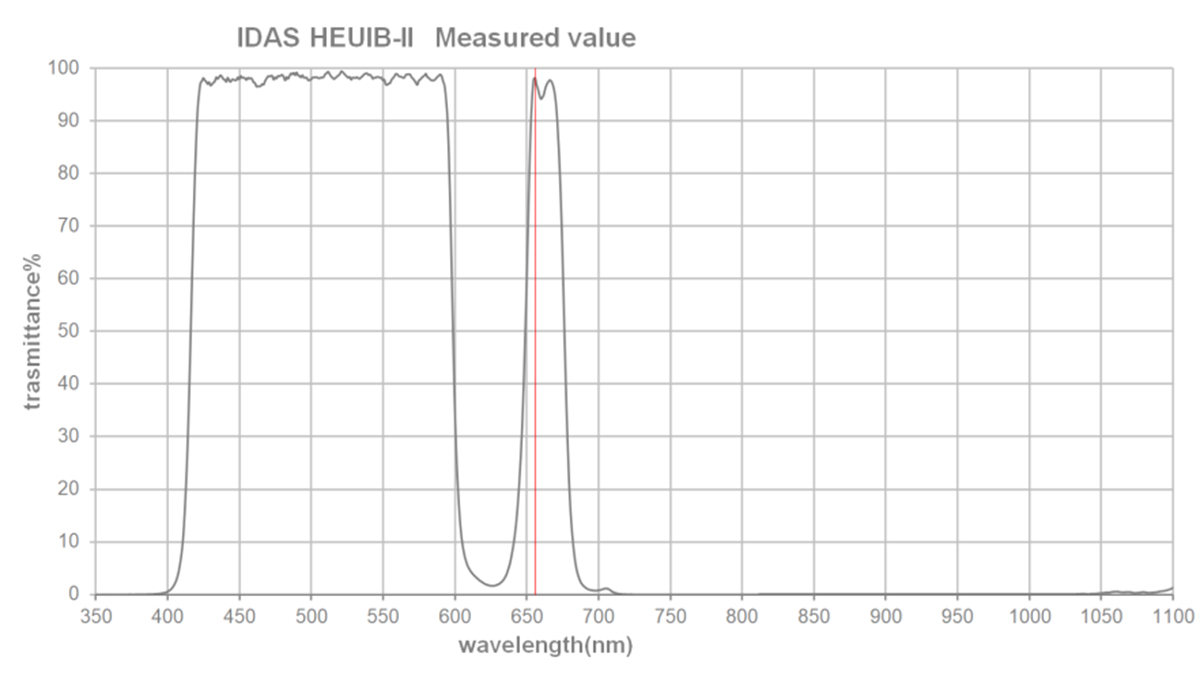

IDAS HEUIB-II: H-Alpha Enhancement with UV/near IR Suppression Filter!
This IDAS HEUIB-II filter will reduce the interference from the red end spectrum associated with regular astronomical IR-cut filters such as UIBAR-III, and as a result enhance the wavelength of H-alpha nebulae. Even in comparison with our conventional HEUIB filter, HEUIB-II has less interference from the red end spectrum as a result of the increase in the red spectrum suppression range. Thus, the image of nebulae in the H-alpha region will get enhanced.
The HEUIB-II, thus, works to bring the reddish color balance of an UV/IR modified camera closer to the normal color balance.The HEUIB-II is the only UV/IR-cut astronomical filter that can obtain images with a good white balance even with the auto white balance setting. Please note: The drop-in mounted filter holder is not included in the DRT filter purchase.
The NGS1 is highly effective at cutting out light pollution from legacy low-pressure and high-pressure sodium lamps.
Nightglow interferance taken by Mr.Shigemi Numasawa
Image processed to reproduce the NGS1 nightglow suppression
IGAD Coatings
The HEUIB-II filter utilizes advanced IGAD (Ion-Gun Assisted Deposition) coating technology, a proven process featured across the IDAS light pollution filter lineup. This technology densifies the interference multi-layers, providing superior physical and optical properties that traditional coating methods simply cannot match.
-
Exceptional Durability: The resilient thin-film layers achieve a hardness comparable to quartz glass, maximizing scratch resistance.
-
Superior Adherence: The bond between the glass substrate and the optical multi-layers is tremendously reinforced, preventing delamination.
-
Rock-Solid Stability: The filter exhibits virtually zero drift or aging variation in its spectral performance due to temperature or humidity fluctuations, ensuring consistent results in any standard environment.

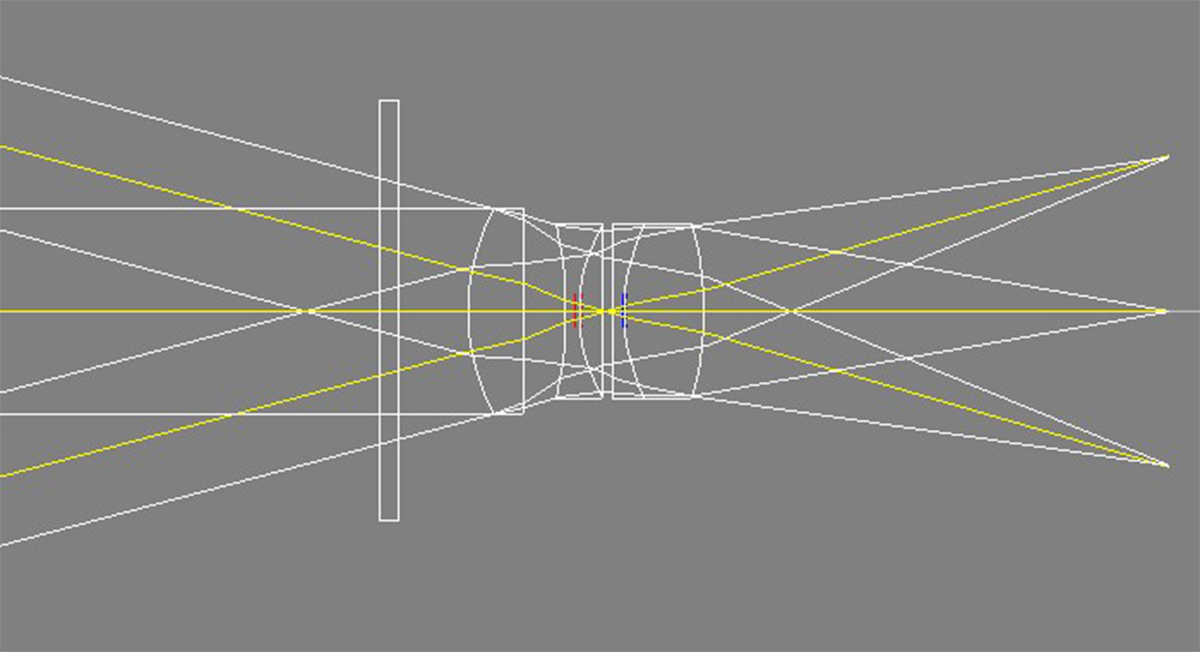

HEUIB-II Placed Before Lens
Use a lens having the light incidence angle of 14 degrees or lower (field angle of 34 degrees or lower).
- This product is an interference filter. Its spectrum characteristics will be subject to the incidence of incoming light. Please carefully read the following few features carefully for proper use.

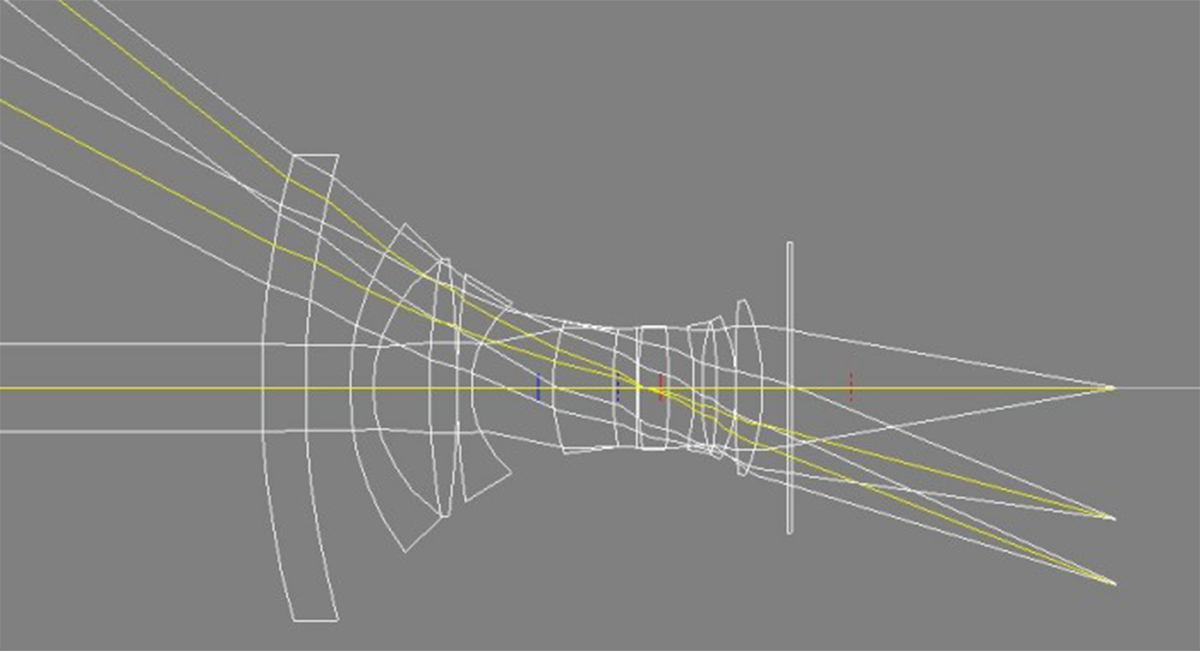

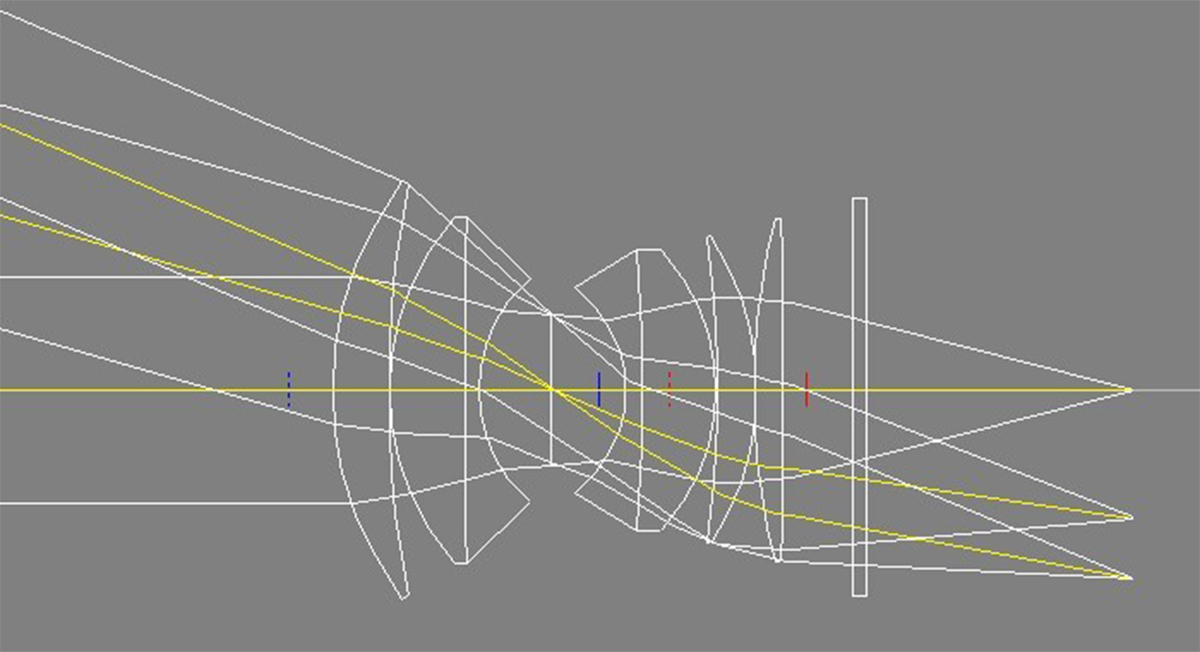

HEUIB-II Placed Between Lens (applies to IDASmio filters)
When your camera is equipped with an APS-C image sensor and uses a lens with a *back focal distance of 40mm or greater and F value of two or faster, it is possible to hold down the maximum averaged incidence angle of the incoming light ray against the filter within about 14°. Under the conditions of the above mentioned camera, there will be almost no field angle requirements for the lens to be used.
*Please note: the smaller the diameter of the rear lens element, the more likely the maximum averaged incidence angle would exceed 14° where the transmittance of nebula emission lines could be deteriorated around the peripheral of the image.
Other Information
- Country of Manufacture: Japan
The IDAS DRT framed filters are mounted in a 3d printed holder and designed to be inserted directly into the following ZWO filter drawers:
- Canon EF-EOSR drop-in mount adapter
- Meike MK-EFTR-C (EF-R)
- MK-EFTE-C (EF-E) drop-in mount adapters
- Kolari EF-EOS R Drop-In Filter Mount Adapter For Canon
- RED RF cameras
- More details at: IDAS DRT framed Filter
IDAS HEUIB-II: H-Alpha Enhancement with UV/near IR Suppression Filter!
This IDAS HEUIB-II filter will reduce the interference from the red end spectrum associated with regular astronomical IR-cut filters such as UIBAR-III, and as a result enhance the wavelength of H-alpha nebulae. Even in comparison with our conventional HEUIB filter, HEUIB-II has less interference from the red end spectrum as a result of the increase in the red spectrum suppression range. Thus, the image of nebulae in the H-alpha region will get enhanced.
The HEUIB-II, thus, works to bring the reddish color balance of an UV/IR modified camera closer to the normal color balance.The HEUIB-II is the only UV/IR-cut astronomical filter that can obtain images with a good white balance even with the auto white balance setting. Please note: The drop-in mounted filter holder is not included in the DRT filter purchase.
The NGS1 is highly effective at cutting out light pollution from legacy low-pressure and high-pressure sodium lamps.
Nightglow interferance taken by Mr.Shigemi Numasawa
Image processed to reproduce the NGS1 nightglow suppression
IGAD Coatings
The HEUIB-II filter utilizes advanced IGAD (Ion-Gun Assisted Deposition) coating technology, a proven process featured across the IDAS light pollution filter lineup. This technology densifies the interference multi-layers, providing superior physical and optical properties that traditional coating methods simply cannot match.
-
Exceptional Durability: The resilient thin-film layers achieve a hardness comparable to quartz glass, maximizing scratch resistance.
-
Superior Adherence: The bond between the glass substrate and the optical multi-layers is tremendously reinforced, preventing delamination.
-
Rock-Solid Stability: The filter exhibits virtually zero drift or aging variation in its spectral performance due to temperature or humidity fluctuations, ensuring consistent results in any standard environment.
HEUIB-II Placed Before Lens
Use a lens having the light incidence angle of 14 degrees or lower (field angle of 34 degrees or lower).
- This product is an interference filter. Its spectrum characteristics will be subject to the incidence of incoming light. Please carefully read the following few features carefully for proper use.
HEUIB-II Placed Between Lens (applies to IDASmio filters)
When your camera is equipped with an APS-C image sensor and uses a lens with a *back focal distance of 40mm or greater and F value of two or faster, it is possible to hold down the maximum averaged incidence angle of the incoming light ray against the filter within about 14°. Under the conditions of the above mentioned camera, there will be almost no field angle requirements for the lens to be used.
*Please note: the smaller the diameter of the rear lens element, the more likely the maximum averaged incidence angle would exceed 14° where the transmittance of nebula emission lines could be deteriorated around the peripheral of the image.
- 1x HEUIB-II DRT framed filter
- Enhanced Hα Imaging: Boosts the 656.3nm hydrogen-alpha line for cleaner, more detailed emission nebula shots.
- Tames Red Star “Bloat”: Reduces red-end spectrum interference for more natural star color and balanced backgrounds.
- UV/IR Cut with Better Color Balance: Blocks unwanted UV and infrared light while restoring more natural color in modified DSLRs and OSC cameras.
- IGAD Coating Tech: Ultra-durable, high-density coatings with excellent long-term stability against humidity and temperature changes.
- Filter Holder Sold Separately: DRT filter version require a compatible filter drawer or holder, which is not included.
The IDAS DRT framed filters are mounted in a 3d printed holder and designed to be inserted directly into the following ZWO filter drawers:
- Canon EF-EOSR drop-in mount adapter
- Meike MK-EFTR-C (EF-R)
- MK-EFTE-C (EF-E) drop-in mount adapters
- Kolari EF-EOS R Drop-In Filter Mount Adapter For Canon
- RED RF cameras
- More details at: IDAS DRT framed Filter
IDAS HEUIB-II: H-Alpha Enhancement with UV/near IR Suppression Filter!
This IDAS HEUIB-II filter will reduce the interference from the red end spectrum associated with regular astronomical IR-cut filters such as UIBAR-III, and as a result enhance the wavelength of H-alpha nebulae. Even in comparison with our conventional HEUIB filter, HEUIB-II has less interference from the red end spectrum as a result of the increase in the red spectrum suppression range. Thus, the image of nebulae in the H-alpha region will get enhanced.
The HEUIB-II, thus, works to bring the reddish color balance of an UV/IR modified camera closer to the normal color balance.The HEUIB-II is the only UV/IR-cut astronomical filter that can obtain images with a good white balance even with the auto white balance setting. Please note: The drop-in mounted filter holder is not included in the DRT filter purchase.
The NGS1 is highly effective at cutting out light pollution from legacy low-pressure and high-pressure sodium lamps.
Nightglow interferance taken by Mr.Shigemi Numasawa
Image processed to reproduce the NGS1 nightglow suppression
IGAD Coatings
The HEUIB-II filter utilizes advanced IGAD (Ion-Gun Assisted Deposition) coating technology, a proven process featured across the IDAS light pollution filter lineup. This technology densifies the interference multi-layers, providing superior physical and optical properties that traditional coating methods simply cannot match.
-
Exceptional Durability: The resilient thin-film layers achieve a hardness comparable to quartz glass, maximizing scratch resistance.
-
Superior Adherence: The bond between the glass substrate and the optical multi-layers is tremendously reinforced, preventing delamination.
-
Rock-Solid Stability: The filter exhibits virtually zero drift or aging variation in its spectral performance due to temperature or humidity fluctuations, ensuring consistent results in any standard environment.
HEUIB-II Placed Before Lens
Use a lens having the light incidence angle of 14 degrees or lower (field angle of 34 degrees or lower).
- This product is an interference filter. Its spectrum characteristics will be subject to the incidence of incoming light. Please carefully read the following few features carefully for proper use.
HEUIB-II Placed Between Lens (applies to IDASmio filters)
When your camera is equipped with an APS-C image sensor and uses a lens with a *back focal distance of 40mm or greater and F value of two or faster, it is possible to hold down the maximum averaged incidence angle of the incoming light ray against the filter within about 14°. Under the conditions of the above mentioned camera, there will be almost no field angle requirements for the lens to be used.
*Please note: the smaller the diameter of the rear lens element, the more likely the maximum averaged incidence angle would exceed 14° where the transmittance of nebula emission lines could be deteriorated around the peripheral of the image.
Other Information
- Country of Manufacture: Japan
- 1x HEUIB-II DRT framed filter
