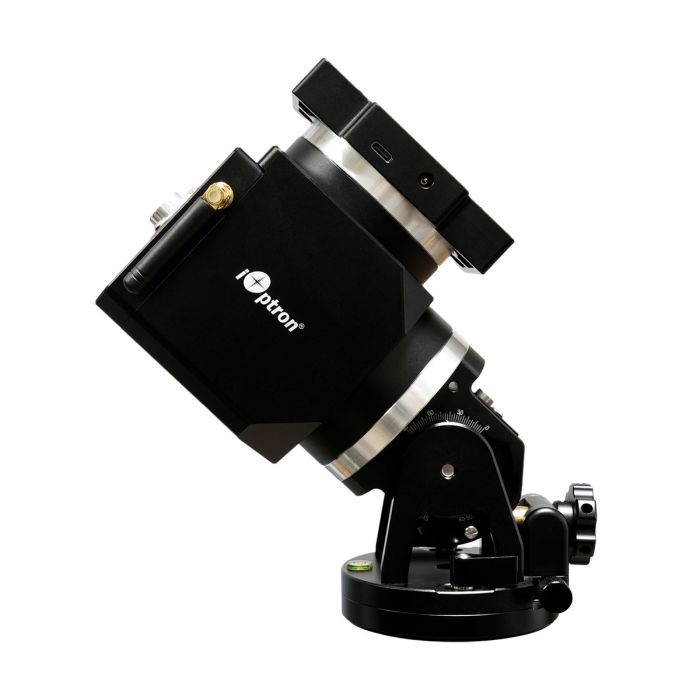

iOptron HAE18C Ultra Compact Dual Strain Wave AZ/EQ Mount Head and Case
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- Advanced strain wave gear system technology
- Payload capacity of 8.5 kg (18.7 lbs) with the mount weight of 2.82 kg (6.2lbs, include dovetail saddle)
- PE< 36 arcsec (<±18 arcsec)
- CNC machined
- Unique friction brake to safely stop movement during a planned or unplanned power interruption
- 360 second gear period
- Dual saddle (Vixen and Losmandy-D styles)
- Built in zero position search and locator
- Built-in Wi-Fi
- USB-C ports on mount base and dovetail saddle for firmware upgrade and computer control
- Hard carrying case
- Two year warranty
- Optional iPolar electronic polar scope
- Optional 8411 handset with OLED display
Please note: No tripod is included with this item. iOptron offers a carbon fiber tripod separately for this mount.
Introducing a new member of iOptron strain wave gear mount family - Ultra Portable AZ/EQ dual mount HAE18C! This light weight, high payload to weight little titan will deliver an astronomy experience like never before. Imagine a mount head weighing in at ~6 lbs with a payload capability close to 19lbs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HAE18 brings this vision to reality.
Utilizing state of the art strain wave gear technology for both RA and DEC movement, the HAE18 delivers unparalleled weight to payload efficiency. Its black anodized metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features include an electronic friction brake that allows the mount to stop safely.
An HAE18C mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a Smartphone/Tablet via iOptron Commander Lite or an App like SkySafari Pro; or a Raspberry Pi device via INDI driver, “C” models (internal main board versions) with built-in Wi-Fi allow for external control without need for a handset. Those who prefer using a handset, the optional 8411 Go2Nova® controller is available. The mount has on saddle USB and 12V ports for easier cable management. A quality form fit hard case is included.
(Actual contents may differ from the image)
Specifications:
- Mount: Strain Wave Altazimuth/Equatorial Mount
- RA gear system: Strain Wave Gear
- DEC gear system: Strain Wave Gear
- RA reduction ratio: RA 360:1, DEC 360:1
- Payload w/o CW*: 18.7 lbs (8.5 kg)
- Mount weight: 6.2 lbs (2.82 kg) with dovetail saddle
- Payload/Mount weight: 3.01
- Payload with CW*: 26.5 lbs (12 kg)
- Period: 360 second
- PE: < 36 arcsec (< ± 18 arcsec)
- Drive motor: Stepper motor
- Structure Material: All metal, CNC machined
- Exterior finish: Anodized blacj
- Level indicator: Level bubble
- Control system: GOTONOVA/Commander
- Handset: Optional Go2Nova® 8411
- Tracking: Automatic
- Maximum slew speed: 6º/sec
- Power consumption: 0.6A (Tracking), 1A (GOTO)
- Power: DC12V-5A (5.5/2.1mm DC plug)
- AC adapter: 100V ~ 240V (included, indoor use only)
- Power off brake: Electronic friction brake
- Wi-Fi: Built-in
- Communication port: Yes (Wi-Fi and USB)
- Autoguide: Pulse guiding via ASCOM
- Firmware upgrade: Yes
- Dovetail saddle: Vixen & Losmandy
- Tripod: Optional
- Counterweight Shaft: SS Φ20X200mm, 3/8"-16 thread (Optional)
- Counterweight: 10 lbs (4.5kg) (Optional)
- Operation temperature: -20ºC ~ 45ºC
- Warranty: Two year limited
* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.
Other Information
- Country of Manufacture: China
