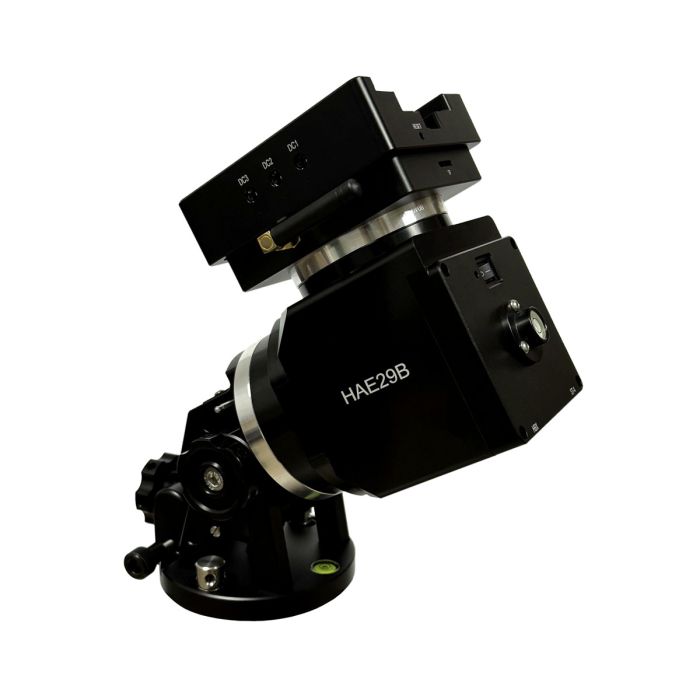

iOptron HE29B Hybrid SWG Equatorial Mount Head with iMate
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- Advanced strain wave gear system technology
- Onboard iMate computer
- Payload capacity of 13 kg (29 lbs) with the mount weight of 3.8 kg (8.4 lbs, include dovetail saddle)
- CNC machined
- Unique friction brake on both RA and DEC to safely stop movement during a planned or unplanned power interruption
- 360 second gear period
- Dual saddle (Vixen and Losmandy-D styles)
- Built in zero position search and locator
- Integrated ST-4 autoguiding port
- Built-in Wi-Fi (for iMate connection)
- USB port for firmware upgrade and computer control
- Carrying case
- Two year warranty
Please note: No tripod is included with this item. iOptron offers a carbon fiber tripod separately for this mount.
The newest membersof iOptron strain wave gear mount family - AZ/EQ dual mount HAE29B! This light weight, compact, medium payload titan will deliver an astronomy experience like never before. Imagine a mount head weighing in at less than 8lbs with a payload capability 29.7lbs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HAE29 brings this vision to reality.
Utilizing state-of-the-art strain wave gear technology for both RA and DEC movement, the HAE29s deliver unparalleled weight to payload efficiency. Its black anodized, all metal CNC machined body is appealing to the eye and is a rugged platform that will perform at the highest level for many years to come. Unique features include an electronic friction break to safely stop movement during a planned or unplanned power interruption.
The new “B” iMate HAE29 model mounts feature a powerful 64-bit ARM based on-board computer with Wi-Fi, preloaded KStars planetarium software, Ekos control and automation tool with INDI drivers. This hardware-software combination will support the use of most current and future devices allowing the user choice of brand and model (cameras, focusers, filter wheels, etc.).
With 32GB eMMC storage along with a slot for an up to 64 GB TF(microSD) memory, the iMate has the ability to control and capture an entire automated imaging session. The iMate is cross-platform; use it with Windows, IOS, Linux, Android etc .
All HAE iMate dual SWG Alt-az/Eq mounts now have an internal main board and no longer requires a handset for operation. All the accessories can be connected to the iMate and there is no cable drags when the mount is operating.
An HAE29B mount can also be controlled by a computer via the USB-C port on the mount base, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a Mac OS software.
(Actual contents may differ from the image. 8411 handset and 3339 iPolar are optional.)
Specifications
- Mount: Strain Wave Altazimuth/Equatorial Mount
- RA gear system: Strain Wave Gear
- DEC gear system: Strain Wave Gear
- Reduction ratio: RA 480:1, DEC 360:1
- Payload w/o CW *: 29 lbs (13 kg)
- Mount weight: 8.4 lbs (3.8 kg) with dovetail saddle
- Payload/Mount weight: 3.42
- Payload with CW*: 40 lbs (18 kg)
- Period: 360 second
- Period Error: < 36 arcsec (± 18 arcsec)
- Drive motor: Stepper motor
- Structure Material: All metal, CNC machined
- Exterior finish: Anodized black
- Level indicator: Level bubble
- Control system: GOTONOVA/Commander
- Handset: Optional OLED Go2Nova® 8411
- Tracking: Automatic
- Maximum slew speed: 6º/sec
- Power consumption: 0.6A(Tracking), 1A(GOTO)
- Power: DC12V-5A (5.5/2.5mm DC plug)
- AC adapter: 100V ~ 240V (included, indoor use only)
- Power off brake: Electronic friction brake
- Wi-Fi: Built-in
- Communication port: Yes (Wi-Fi and USB)
- Autoguide port: Yes (ST-4 compatible)
- Firmware upgrade: Yes
- Dovetail saddle: Vixen & Losmandy
- Tripod: Optional
- Counterweight Shaft: SS Φ20X200mm, 3/8"-16 thread (Optional)
- Counterweight: 10 lbs (4.5kg)(Optional)
- Operation temperature: -20ºC ~ 45ºC (hand controller -10ºC ~ 40ºC)
- Warranty: Two year limited
* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.
Other Information
