6" (150mm) iOptron Pier Top flange plate for building your own pier or modifying your existing tripod/pier. Click here for the Pier Top CAD drawing.
The Pier Top can be used to mount the following mounts (with appropriate mounting accessories). Please select the correct version you need from the choices above.
- CEM70: CEM60/CEM70 (w/ center post)
- CEM40: CEM40/HAE43/HEM44/GEM45(w/ center post & alignment peg)*
- iEQ30: iEQ30/iEQ30 Pro (w/ center post & alignment peg)*
- iEQ30: iEQ45/iEQ45 Pro (w/ center post and alignment peg)*

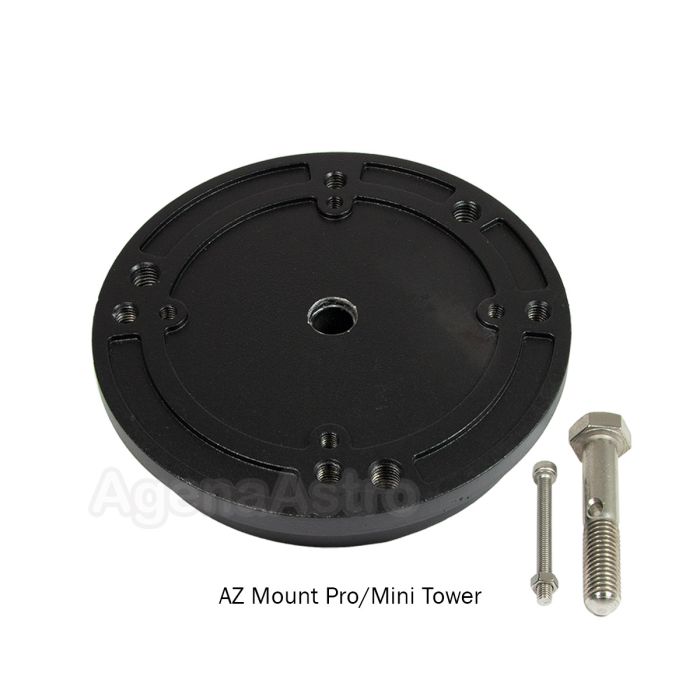

- AZ Mount Pro: AZ Mount Pro & MiniTower/MiniTower II/MiniTower Pro (w/ a center T-bolt)
* Due to the small mount base of the mount, the low latitude operation may be affected.
Specifications:
- Plate diameter: 6" (150mm)
- Three (3) M10 threaded through holes for MT/MT2/MTP and AZ Mount Pro
- Four (4) M8 threaded through holes for CEM60/CEM60-EC, or iEQ45/iEQ45 Pro
- Four (4) M6 threaded through holes for CEM40/GEM45/iEQ30/iEQ30 Pro.
Other Information
- Country of Manufacture: China
