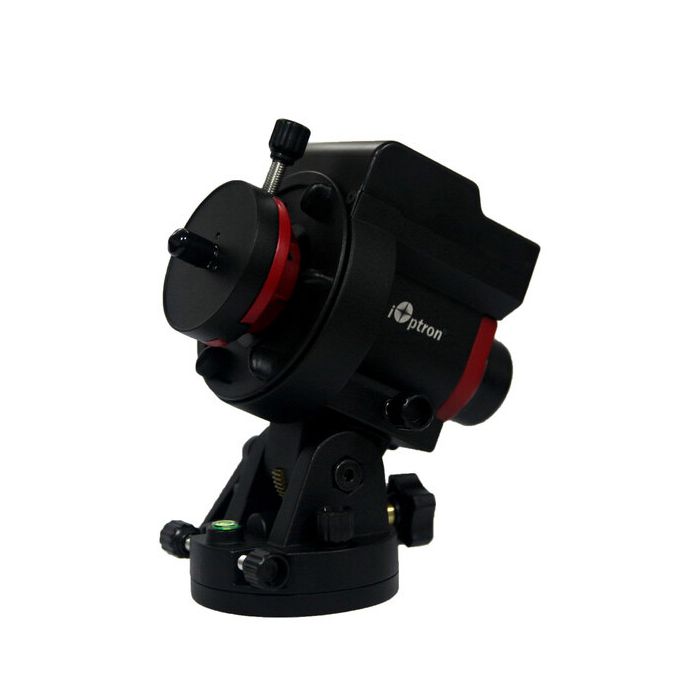

iOptron SkyGuider Pro EQ Camera Mount with iPolar
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
Please note: Item or trim color may vary. Tripod not included.
Having difficulty to polar align, especially in Southern Hemisphere? We have a solution: SkyGuider Pro with built-in iPolar!
The SkyGuiderTM Pro -- iOptron’s next generation camera tracking device! Leading the camera tracker market for nearly four years, iOptron's SkyGuider Pro pushes closer to perfection.
The redesigned SkyGuiderTM Pro mount head is more compact, small enough to fit on your palm, better precision, silent tracking, built-in rechargeable power source, ST-4 guiding port and camera trigger port. The improved precision polar scope maintains a fine engraved reticule, now features adjustable illumination with different brightness levels. Using with our iOS app, quick and accurate polar alignment is just a joy. The DEC mounting bracket allows you to balance a heavy camera and/or lens better, or even mount a light telescope. The optional 8408 hand controller allows you to check the Pole Star position for the polar alignment, slew the mount, adjust the guiding rate, change the mount settings and control the camera trigger.
This mount has an integrated electronic polar finder scope known as the iPolar (requires PC to run iPolar software). This tool ensures the accurate alignment of a telescope, even when the pole star is obscured. There are large levers on the quick-lock drive engagement system; these large levers make it easy to snap the gears into place.
The SkyGuiderTM Pro features four tracking rates, 1X or sidereal, 1/2X for sky and landscape combined, solar and lunar. All 4 tracking rates work in both northern and southern hemispheres. We have also added a quick slew mode with both forward and reverse to help quickly reframing your image without disrupting the cameras position.
We have made big improvements on the SkyGuiderTM Pro’s removable alt-azimuth base, which features a precision bubble level, degree markings for the altitude and a built in post for the azimuth control. You can also mount the SkyGuiderTM Pro head (without the base) directly to any standard photographic tripod with 1/4” or 3/8” threads.
The DEC mounting bracket package, which includes DEC mounting bracket, counterweight shaft, counterweight and Vixen-type dovetail saddle, makes the SkyGuideTM Pro mount suitable for a heavier camera/lens system, even a lightweight telescope.
The SkyGuiderTM Pro is certainly a must have tool for any photographer interested in astroscape or wide field astrophotography.
Features
- All metal mechanical structure
- Attaches to a camera tripod with 3/8” or 1/4” threads
- Payload 11 lbs (5kg) (balanced, with DEC mounting bracket, exclude CW)
- Silent tracking for smooth camera motion, perfect for long-term exposures
- Detachable alt-azi base with fine latitude and azimuth adjusters for easy polar alignment
- Includes iOptron iPolarTM electronic polar scope (requires PC to run iPolar software)
- 4 tracking speed (1X, 1/2X, solar and lunar). 1X celestial tracking for imaging the sky and stars; 1/2X tracking speed for imaging both the starry night and the landscapes at the same time
- Operation in both northern and southern hemisphere
- Quick slew (144X) for camera framing adjustment
- Built-in rechargeable battery for up to 20 hours of operation (20°C)
- Built-in ST-4 auto-guiding port
- HBX port for external hand controller
- Micro USB port for power, charging and firmware upgrade
- Built-in shutter triggering port
- Padded carry bag included
- DEC mounting bracket
- Counterweight and CW shaft
- Vixen dovetail saddle for scope mounting
- Optional ball heads available separately (#3305A)
- Optional tripod (#3221)
- Optional Go2Nova® 8408 hand controller (#8408)
- Optional DSLR camera shutter trigger cable
Technical Specifications:
- Mount: Compact single axis tracking EQ
- Payload (Max.): 11 lbs (5kg), balanced
- Mount weight: 2.2 lbs (1kg) with battery
- Mount weight with base: 3.2 lbs (1.45kg) with battery
- Body material: All metal
- RA shaft: Φ35mm, steel
- Worm wheel: Φ88mm, 144 teeth aluminum alloy
- R.A. worm: Φ15.2mm, brass
- Bearing: 4 pieces
- Motor drive: DC servo motor with optical encoder
- Tracking: R.A. automatic
- Tracking speed: Solar, Lunar, Cel, 1/2 Cel, and N/S
- Fast slew speed: 144X, forward and reverse
- Guiding port: ST-4 compatible
- Polar scope: AccuAlign TM dark field illuminated (~6º FOV)
- Camera trigger: Yes
- Hand controller: Yes (with optional 8408 HC)
- Power Requirement: Internal rechargeable battery
- Battery type: Li-Poly, 3.7V, 2000mAh
- Duration of operation: Up to 20 hours at 20ºC
- Power charge port: Micro USB (5V), 80% charge in 5 hours
- Camera mounting block: Φ62mm, 3/8" post thread
- Body base connection: Vixen dovetail, 3/8” socket (1/4” converter)
- Alt-Azi adjustable base: Vixen style saddle, 3/8” socket
- Alt-Azi adjustable base diameter: Φ80 mm
- Latitude adjustment range: -30º ~ 65º (with alt-azi base)
- Azimuth adjustment range: ±5º
- Level indicator: Level bubble
- Body dimension: 133x115x95 mm (w/o alt-azi base)
- Counterweight shaft: Φ20x200 mm w/ 3/8”-16 threads
- Counterweight: 1.35kg
- Firmware upgrade: Yes (via USB port)
- Operation Temperature: -10ºC ~40ºC
- Warranty: One year limited (90 day on battery)
Other Information
- Country of Manufacture: China
Please note: Item or trim color may vary. Tripod not included.
Having difficulty to polar align, especially in Southern Hemisphere? We have a solution: SkyGuider Pro with built-in iPolar!
The SkyGuiderTM Pro -- iOptron’s next generation camera tracking device! Leading the camera tracker market for nearly four years, iOptron's SkyGuider Pro pushes closer to perfection.
The redesigned SkyGuiderTM Pro mount head is more compact, small enough to fit on your palm, better precision, silent tracking, built-in rechargeable power source, ST-4 guiding port and camera trigger port. The improved precision polar scope maintains a fine engraved reticule, now features adjustable illumination with different brightness levels. Using with our iOS app, quick and accurate polar alignment is just a joy. The DEC mounting bracket allows you to balance a heavy camera and/or lens better, or even mount a light telescope. The optional 8408 hand controller allows you to check the Pole Star position for the polar alignment, slew the mount, adjust the guiding rate, change the mount settings and control the camera trigger.
This mount has an integrated electronic polar finder scope known as the iPolar (requires PC to run iPolar software). This tool ensures the accurate alignment of a telescope, even when the pole star is obscured. There are large levers on the quick-lock drive engagement system; these large levers make it easy to snap the gears into place.
The SkyGuiderTM Pro features four tracking rates, 1X or sidereal, 1/2X for sky and landscape combined, solar and lunar. All 4 tracking rates work in both northern and southern hemispheres. We have also added a quick slew mode with both forward and reverse to help quickly reframing your image without disrupting the cameras position.
We have made big improvements on the SkyGuiderTM Pro’s removable alt-azimuth base, which features a precision bubble level, degree markings for the altitude and a built in post for the azimuth control. You can also mount the SkyGuiderTM Pro head (without the base) directly to any standard photographic tripod with 1/4” or 3/8” threads.
The DEC mounting bracket package, which includes DEC mounting bracket, counterweight shaft, counterweight and Vixen-type dovetail saddle, makes the SkyGuideTM Pro mount suitable for a heavier camera/lens system, even a lightweight telescope.
The SkyGuiderTM Pro is certainly a must have tool for any photographer interested in astroscape or wide field astrophotography.
Features
- All metal mechanical structure
- Attaches to a camera tripod with 3/8” or 1/4” threads
- Payload 11 lbs (5kg) (balanced, with DEC mounting bracket, exclude CW)
- Silent tracking for smooth camera motion, perfect for long-term exposures
- Detachable alt-azi base with fine latitude and azimuth adjusters for easy polar alignment
- Includes iOptron iPolarTM electronic polar scope (requires PC to run iPolar software)
- 4 tracking speed (1X, 1/2X, solar and lunar). 1X celestial tracking for imaging the sky and stars; 1/2X tracking speed for imaging both the starry night and the landscapes at the same time
- Operation in both northern and southern hemisphere
- Quick slew (144X) for camera framing adjustment
- Built-in rechargeable battery for up to 20 hours of operation (20°C)
- Built-in ST-4 auto-guiding port
- HBX port for external hand controller
- Micro USB port for power, charging and firmware upgrade
- Built-in shutter triggering port
- Padded carry bag included
- DEC mounting bracket
- Counterweight and CW shaft
- Vixen dovetail saddle for scope mounting
- Optional ball heads available separately (#3305A)
- Optional tripod (#3221)
- Optional Go2Nova® 8408 hand controller (#8408)
- Optional DSLR camera shutter trigger cable
Technical Specifications:
- Mount: Compact single axis tracking EQ
- Payload (Max.): 11 lbs (5kg), balanced
- Mount weight: 2.2 lbs (1kg) with battery
- Mount weight with base: 3.2 lbs (1.45kg) with battery
- Body material: All metal
- RA shaft: Φ35mm, steel
- Worm wheel: Φ88mm, 144 teeth aluminum alloy
- R.A. worm: Φ15.2mm, brass
- Bearing: 4 pieces
- Motor drive: DC servo motor with optical encoder
- Tracking: R.A. automatic
- Tracking speed: Solar, Lunar, Cel, 1/2 Cel, and N/S
- Fast slew speed: 144X, forward and reverse
- Guiding port: ST-4 compatible
- Polar scope: AccuAlign TM dark field illuminated (~6º FOV)
- Camera trigger: Yes
- Hand controller: Yes (with optional 8408 HC)
- Power Requirement: Internal rechargeable battery
- Battery type: Li-Poly, 3.7V, 2000mAh
- Duration of operation: Up to 20 hours at 20ºC
- Power charge port: Micro USB (5V), 80% charge in 5 hours
- Camera mounting block: Φ62mm, 3/8" post thread
- Body base connection: Vixen dovetail, 3/8” socket (1/4” converter)
- Alt-Azi adjustable base: Vixen style saddle, 3/8” socket
- Alt-Azi adjustable base diameter: Φ80 mm
- Latitude adjustment range: -30º ~ 65º (with alt-azi base)
- Azimuth adjustment range: ±5º
- Level indicator: Level bubble
- Body dimension: 133x115x95 mm (w/o alt-azi base)
- Counterweight shaft: Φ20x200 mm w/ 3/8”-16 threads
- Counterweight: 1.35kg
- Firmware upgrade: Yes (via USB port)
- Operation Temperature: -10ºC ~40ºC
- Warranty: One year limited (90 day on battery)
- SkyGuider Pro camera mount
- Alt-azi base (installed)
- iPolar electronic polar scope (installed)
- Micro USB charging cable
- Padded carry bag
- DEC mounting bracket w/ camera mounting disk
- 1.35kg counterweight
- CW shaft
- One Year Limited Warranty (90 day on battery)
Please note: Item or trim color may vary. Tripod not included.
Having difficulty to polar align, especially in Southern Hemisphere? We have a solution: SkyGuider Pro with built-in iPolar!
The SkyGuiderTM Pro -- iOptron’s next generation camera tracking device! Leading the camera tracker market for nearly four years, iOptron's SkyGuider Pro pushes closer to perfection.
The redesigned SkyGuiderTM Pro mount head is more compact, small enough to fit on your palm, better precision, silent tracking, built-in rechargeable power source, ST-4 guiding port and camera trigger port. The improved precision polar scope maintains a fine engraved reticule, now features adjustable illumination with different brightness levels. Using with our iOS app, quick and accurate polar alignment is just a joy. The DEC mounting bracket allows you to balance a heavy camera and/or lens better, or even mount a light telescope. The optional 8408 hand controller allows you to check the Pole Star position for the polar alignment, slew the mount, adjust the guiding rate, change the mount settings and control the camera trigger.
This mount has an integrated electronic polar finder scope known as the iPolar (requires PC to run iPolar software). This tool ensures the accurate alignment of a telescope, even when the pole star is obscured. There are large levers on the quick-lock drive engagement system; these large levers make it easy to snap the gears into place.
The SkyGuiderTM Pro features four tracking rates, 1X or sidereal, 1/2X for sky and landscape combined, solar and lunar. All 4 tracking rates work in both northern and southern hemispheres. We have also added a quick slew mode with both forward and reverse to help quickly reframing your image without disrupting the cameras position.
We have made big improvements on the SkyGuiderTM Pro’s removable alt-azimuth base, which features a precision bubble level, degree markings for the altitude and a built in post for the azimuth control. You can also mount the SkyGuiderTM Pro head (without the base) directly to any standard photographic tripod with 1/4” or 3/8” threads.
The DEC mounting bracket package, which includes DEC mounting bracket, counterweight shaft, counterweight and Vixen-type dovetail saddle, makes the SkyGuideTM Pro mount suitable for a heavier camera/lens system, even a lightweight telescope.
The SkyGuiderTM Pro is certainly a must have tool for any photographer interested in astroscape or wide field astrophotography.
Features
- All metal mechanical structure
- Attaches to a camera tripod with 3/8” or 1/4” threads
- Payload 11 lbs (5kg) (balanced, with DEC mounting bracket, exclude CW)
- Silent tracking for smooth camera motion, perfect for long-term exposures
- Detachable alt-azi base with fine latitude and azimuth adjusters for easy polar alignment
- Includes iOptron iPolarTM electronic polar scope (requires PC to run iPolar software)
- 4 tracking speed (1X, 1/2X, solar and lunar). 1X celestial tracking for imaging the sky and stars; 1/2X tracking speed for imaging both the starry night and the landscapes at the same time
- Operation in both northern and southern hemisphere
- Quick slew (144X) for camera framing adjustment
- Built-in rechargeable battery for up to 20 hours of operation (20°C)
- Built-in ST-4 auto-guiding port
- HBX port for external hand controller
- Micro USB port for power, charging and firmware upgrade
- Built-in shutter triggering port
- Padded carry bag included
- DEC mounting bracket
- Counterweight and CW shaft
- Vixen dovetail saddle for scope mounting
- Optional ball heads available separately (#3305A)
- Optional tripod (#3221)
- Optional Go2Nova® 8408 hand controller (#8408)
- Optional DSLR camera shutter trigger cable
Technical Specifications:
- Mount: Compact single axis tracking EQ
- Payload (Max.): 11 lbs (5kg), balanced
- Mount weight: 2.2 lbs (1kg) with battery
- Mount weight with base: 3.2 lbs (1.45kg) with battery
- Body material: All metal
- RA shaft: Φ35mm, steel
- Worm wheel: Φ88mm, 144 teeth aluminum alloy
- R.A. worm: Φ15.2mm, brass
- Bearing: 4 pieces
- Motor drive: DC servo motor with optical encoder
- Tracking: R.A. automatic
- Tracking speed: Solar, Lunar, Cel, 1/2 Cel, and N/S
- Fast slew speed: 144X, forward and reverse
- Guiding port: ST-4 compatible
- Polar scope: AccuAlign TM dark field illuminated (~6º FOV)
- Camera trigger: Yes
- Hand controller: Yes (with optional 8408 HC)
- Power Requirement: Internal rechargeable battery
- Battery type: Li-Poly, 3.7V, 2000mAh
- Duration of operation: Up to 20 hours at 20ºC
- Power charge port: Micro USB (5V), 80% charge in 5 hours
- Camera mounting block: Φ62mm, 3/8" post thread
- Body base connection: Vixen dovetail, 3/8” socket (1/4” converter)
- Alt-Azi adjustable base: Vixen style saddle, 3/8” socket
- Alt-Azi adjustable base diameter: Φ80 mm
- Latitude adjustment range: -30º ~ 65º (with alt-azi base)
- Azimuth adjustment range: ±5º
- Level indicator: Level bubble
- Body dimension: 133x115x95 mm (w/o alt-azi base)
- Counterweight shaft: Φ20x200 mm w/ 3/8”-16 threads
- Counterweight: 1.35kg
- Firmware upgrade: Yes (via USB port)
- Operation Temperature: -10ºC ~40ºC
- Warranty: One year limited (90 day on battery)
Other Information
- Country of Manufacture: China
- SkyGuider Pro camera mount
- Alt-azi base (installed)
- iPolar electronic polar scope (installed)
- Micro USB charging cable
- Padded carry bag
- DEC mounting bracket w/ camera mounting disk
- 1.35kg counterweight
- CW shaft
- One Year Limited Warranty (90 day on battery)
