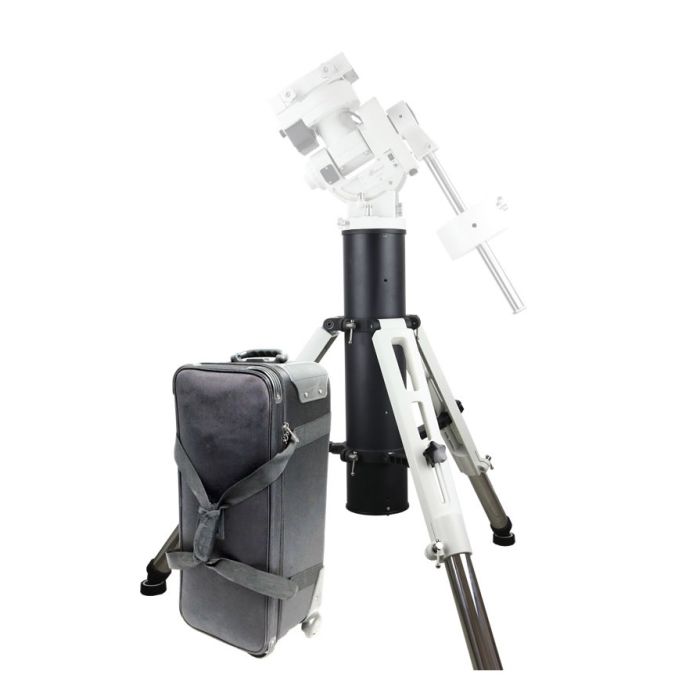

iOptron Tri-Pier for GoTo Mounts with Rolling Case
This item is discontinued by the manufacturer and is no longer available.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Introducing a new concept in mount support...
The iOptron Tri-Pier combines the strength and stableness of a pier with the levelling flexibility of a tripod. Aluminum pier and leg tops. Stainless steel leg extensions. The Tri-Pier feet has built-in vibration suspension pads.
The Tri-pier fits these iOptron mounts (may need extra mounting accessories):
- CEM70A/CEM70AG
- CEM60/CEM60EC
- CEM40/CEM40EC
- GEM45/GEM45EC (may limit low latitude application)
- iEQ45/iEQ45 Pro
- iEQ30/iEQ30 Pro (may limit low latitude application)
- HAE43
- AZ Mount Pro/MiniTower/MiniTower II/MiniTower Pro (needs a center post and three leveling screws #8340-PIER, not included)
The Tri-pier also fits other brand mounts with a suitable adapter.
Technical Specifications:
- Max Payload: 220 lbs (100 kg)
- Self Weight: ~25.8 lbs (11.7 kg)
- Pier Diameter: 5.7" (144 mm) with 150mm top plate
- Adjustable Height: 31.5"-42.5" (800-1080 mm)
- Uneven Ground Range: 3.35" (85 mm)
- Leg Maximum Spread: Ø48.8" (Ø1240 mm)
- Pier Dimension (folded): Ø12.8"x 26” (Ø325 x 660 mm)
- Warranty: One year limited
Other Information
- Country of Manufacture: China
