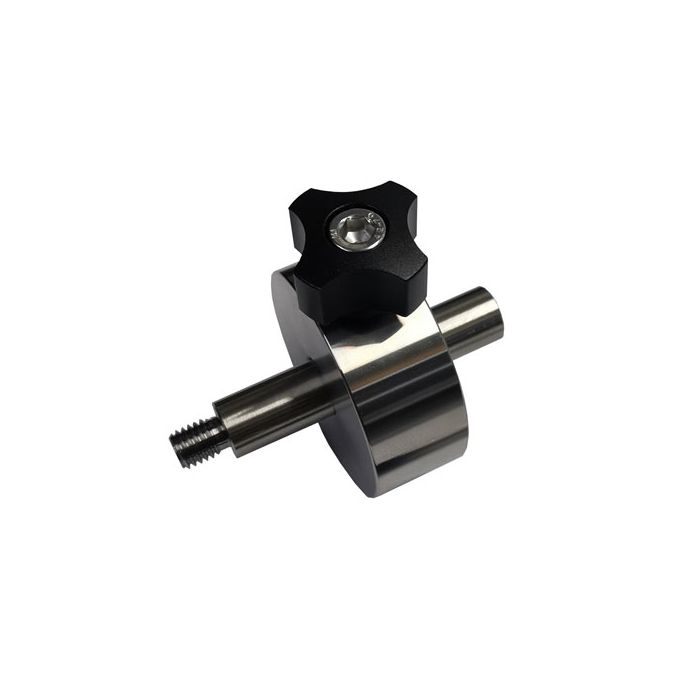

Special designed counterweight kit for Z-axis balance # 8439.
It fits on following iOptron mounts (has a M8 threaded holes on dovetail saddle):
- CEM120
- CEM70
- CEM40 (6" V/D dual saddle with a M8 threaded hole)
- GEM45 (6" V/D dual saddle with a M8 threaded hole)
It can also be used for other mounts with a M8 threaded hole, on dovetail saddle or counterweight.
Specifications:
- Counterweight
- Outer Diameter: 1.9in (49mm)
- Inner Diameter: 0.5in (12mm)
- Thickness: 0.9in (20mm)
- Weight: 10.3oz (292g)
- Material: Stainless Steel
- Counterweight shaft
- Diameter: 0.5in (12mm)
- Length: 2.4in (60mm)
- Thread: M8X1.25mm (both ends)
- Weight: 1.5oz (48g)
- CW shaft end screw: No
- Material: Stainless Steel
Other Information
- Country of Manufacture: China
Special designed counterweight kit for Z-axis balance # 8439.
It fits on following iOptron mounts (has a M8 threaded holes on dovetail saddle):
- CEM120
- CEM70
- CEM40 (6" V/D dual saddle with a M8 threaded hole)
- GEM45 (6" V/D dual saddle with a M8 threaded hole)
It can also be used for other mounts with a M8 threaded hole, on dovetail saddle or counterweight.
Specifications:
- Counterweight
- Outer Diameter: 1.9in (49mm)
- Inner Diameter: 0.5in (12mm)
- Thickness: 0.9in (20mm)
- Weight: 10.3oz (292g)
- Material: Stainless Steel
- Counterweight shaft
- Diameter: 0.5in (12mm)
- Length: 2.4in (60mm)
- Thread: M8X1.25mm (both ends)
- Weight: 1.5oz (48g)
- CW shaft end screw: No
- Material: Stainless Steel
Special designed counterweight kit for Z-axis balance # 8439.
It fits on following iOptron mounts (has a M8 threaded holes on dovetail saddle):
- CEM120
- CEM70
- CEM40 (6" V/D dual saddle with a M8 threaded hole)
- GEM45 (6" V/D dual saddle with a M8 threaded hole)
It can also be used for other mounts with a M8 threaded hole, on dovetail saddle or counterweight.
Specifications:
- Counterweight
- Outer Diameter: 1.9in (49mm)
- Inner Diameter: 0.5in (12mm)
- Thickness: 0.9in (20mm)
- Weight: 10.3oz (292g)
- Material: Stainless Steel
- Counterweight shaft
- Diameter: 0.5in (12mm)
- Length: 2.4in (60mm)
- Thread: M8X1.25mm (both ends)
- Weight: 1.5oz (48g)
- CW shaft end screw: No
- Material: Stainless Steel
Other Information
- Country of Manufacture: China
