Kasai Trading Co. 1.25" AstroPlan Eyepiece - 15mm

Our Price: $139.00
Free shipping for this item in the US Click here for more info

Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.

US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.

International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

Out of Stock
Availability: Item has been discontinued by the manufacturer
Our Product ID: ZZE-ZZKT-KAP15
Manufacturer SKU: K-AP15
Item Can Ship: Worldwide

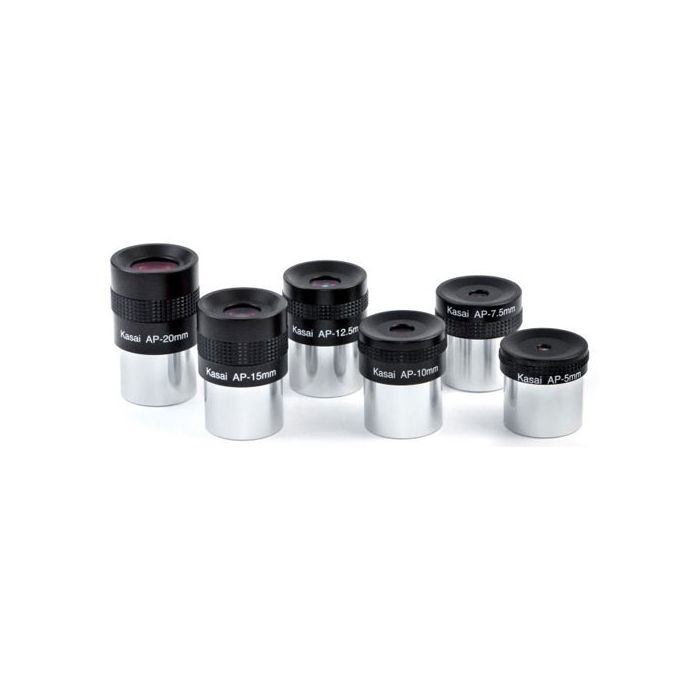

Kasai Trading Co. 1.25" AstroPlan Eyepieces

More Views

  • Kasai Trading Co. 1.25" AstroPlan Eyepieces

Availability: Item has been discontinued and is no longer available.

Product Details

The Kasai Astroplan eyepieces are excellent all-round eyepieces, especially for the discerning lunar or planetary observer. They combine the crisp definition of orthoscopic eyepieces with good field correction over a larger 50-deg apparent field of view. While these are good performers even at shorter focal ratios, they really come into their own with sharp, crisp, contrasty views in long focal ratio scopes.

Superior lens polishing with multi-coating on all internal air-glass surfaces (so these are FMC), a modern 5 element design, edge blackened optics, engraved lettering, end caps, and standard filter threaded barrels attest to the excellent craftsmanship of these Japanese eyepieces. The body of the eyepiece is made from strong, lightweight aluminum and features a knurled rubber ring, while the 1.25" barrel is made from chrome-plated brass.

These optical characteristics coupled with their small size make these Kasai AstroPlan eyepieces perfect for visual observation (especially in binoviewers) as well for afocal projection photography.

Eyepiece Series AstroPlan
Focal Length 15mm
Barrel Size 1.25" (31.7mm)
Apparent Field of View (Mfg Specified) 50°
Eye Relief (Designed) 12.8mm
Filter Threads Standard 1.25" Filter Thread (M28.5 x 0.6)
Coatings Fully Multi-Coated
Lens Elements 5
Lens Groups 3
Blackened Lens Edges Yes
Barrel Type Smooth sided
Protective Plastic Storage Container Discontinued Item
Protective Plastic Storage Container Size Agena 42x60mm
Height (Without Eyeguard) 53.0mm
Maximum Width 35.9mm
End Caps 2
Eye Lens Diameter 14.5mm
Weight 3.5oz (99g)
Country of Manufacture Japan
