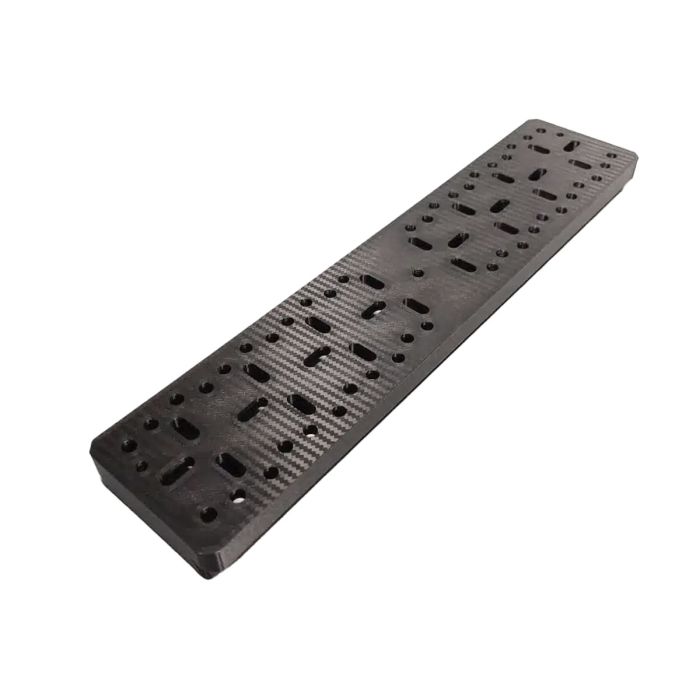

Rouz Astro 14" Losmandy-Style Lightweight Carbon Dovetail
Finding ways to cut down on unnecessary weight can make a big difference. These lightweight dovetail bars are an excellent solution for mounting accessories without the bulk of heavy metal hardware weighing you down. Designed specifically for situations where strength is needed but a full-sized, heavy-duty dovetail isn’t required, they offer a reliable yet streamlined option for your gear. The Light Duty Version is ideal for securely holding accessories up to 12 lbs (5 kg), such as guide scopes, cameras, or other add-ons, please note that they’re not intended for mounting full telescopes.
Carbon Fiber Dovetail Features and Configurations:
- FDM Print: Carbon fiber composite material
- Ultra-lightweight carbon fiber design: significantly lighter than traditional aluminum or metal plates
- Durable and Resistant: resists against flexing, warping, and environmental wear
- Ultra lightweight combo: pair carbon fiber top plate with the optional aluminum bottom plate
- Multiple Bolt-Spacing System: compatible spacing with most brands
- 50 mm (2.0 in) - Rouz Astro Tube Rings
- 32 mm (1.25 in) – Standard hole spacing used on some rings and plates
- Center holes & slots – flexible mounting options
- 20 mm (0.8 in), 35 mm (1.4 in), 50 mm (2.0 in) - MoreBlue
- 38.1 mm (1.5 in) - William Opt., Stellarvue
- 55 mm (2.2 in) - PrimaLuceLab
- 60 mm (2.4 in) - Astro Physics, StellaMira
Specifications:
- Length: 14 in (355.6 mm):
- Weight: 0.2 lbs (100 g)
- Bolt spacing width: 20 mm to 51 mm (0.8 in to 2.0 in)
- FDM Print: Saves weight (typically 1/4 of metal), improves mount tracking performance
- Various hole spacing and slots to accept M6 or 1/4-20 bolts
- High UV, water, chemical, salt, and temperature resistance (60°C – 140°F)
- Carbon Fiber composite of high modulus carbon fiber & polymers fused at high temperatures over 540 °F (no glue or epoxy is used)
Other Information
- Country of Manufacture: United States
