Includes:
- (Out Of Stock)
- (Out Of Stock)
- 1x(Out Of Stock)Lunt Solar 2" Crayford Focuser with 10:1 Reduction
Lunt Solar 60mm Ha Solar Telescope / B1200 Blocking Filter / 2" Crayford Focuser
Sku:
ZZT-ZZLS-6012C
Mfg #:
LS60THa/B1200C
The price depends on the chosen options
Final product price
Discontinued by Manufacturer
This item is discontinued by the manufacturer and is no longer available.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
SKU:
ZZT-ZZLS-6012C
Mfg #:
LS60THa/B1200C
Description
Description

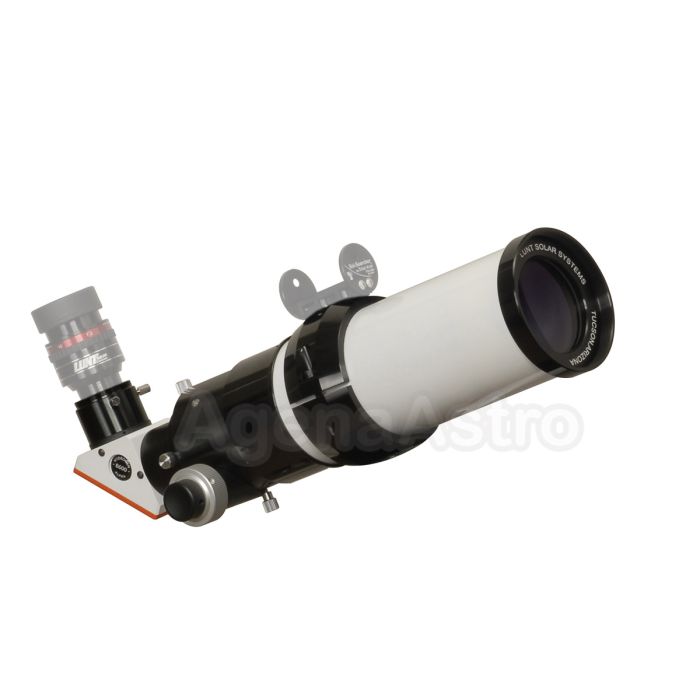

The LS60THa is a complete Solar Telescope. The refractor based system has a precision aligned singlet chromatical lens with a 60mm aperture. The front singlet lens reduces half the stray light of an achromat, fully eliminating the possibility of on-axis coma, astigmatism, de-centering aberrations, and provides, with the matched collimation lens set, a full spherical corrected flat-field Solar Telescope. The focal length is 500mm providing a ~4.5 mm image through a 12mm blocking filter. Fine adjustment is achieved with a Crayford style focuser with 10:1 reduction standard. An internal etalon with tune adjustment allows for a <0.8 Angstrom bandpass.
LS60THa Specifications: (single stacked)
- Optical Aperture: 60mm
- Etalon: Internal <0.75 Angstrom
- Tuning: Tilt
- Focal Length: 500mm
- F Ratio: F/8.3
- Focuser: 2" Crayford with 10:1 fine adjustment
- Mounting: Integrated clamshell style with 1/4-20 tapped base
- Diagonal: B1200 Blocking Filter with 1.25" eyepiece holder and male T thread
- Storage: Aluminum finished hard case with fitted foam
- Weight: 6 lbs
Other Information
- Country of Manufacture: United States
The LS60THa is a complete Solar Telescope. The refractor based system has a precision aligned singlet chromatical lens with a 60mm aperture. The front singlet lens reduces half the stray light of an achromat, fully eliminating the possibility of on-axis coma, astigmatism, de-centering aberrations, and provides, with the matched collimation lens set, a full spherical corrected flat-field Solar Telescope. The focal length is 500mm providing a ~4.5 mm image through a 12mm blocking filter. Fine adjustment is achieved with a Crayford style focuser with 10:1 reduction standard. An internal etalon with tune adjustment allows for a <0.8 Angstrom bandpass.
LS60THa Specifications: (single stacked)
- Optical Aperture: 60mm
- Etalon: Internal <0.75 Angstrom
- Tuning: Tilt
- Focal Length: 500mm
- F Ratio: F/8.3
- Focuser: 2" Crayford with 10:1 fine adjustment
- Mounting: Integrated clamshell style with 1/4-20 tapped base
- Diagonal: B1200 Blocking Filter with 1.25" eyepiece holder and male T thread
- Storage: Aluminum finished hard case with fitted foam
- Weight: 6 lbs
Read Full Description
Reviews / Q&A
Reviews / Q&A
Description
Reviews / Q&A
Description
The LS60THa is a complete Solar Telescope. The refractor based system has a precision aligned singlet chromatical lens with a 60mm aperture. The front singlet lens reduces half the stray light of an achromat, fully eliminating the possibility of on-axis coma, astigmatism, de-centering aberrations, and provides, with the matched collimation lens set, a full spherical corrected flat-field Solar Telescope. The focal length is 500mm providing a ~4.5 mm image through a 12mm blocking filter. Fine adjustment is achieved with a Crayford style focuser with 10:1 reduction standard. An internal etalon with tune adjustment allows for a <0.8 Angstrom bandpass.
LS60THa Specifications: (single stacked)
- Optical Aperture: 60mm
- Etalon: Internal <0.75 Angstrom
- Tuning: Tilt
- Focal Length: 500mm
- F Ratio: F/8.3
- Focuser: 2" Crayford with 10:1 fine adjustment
- Mounting: Integrated clamshell style with 1/4-20 tapped base
- Diagonal: B1200 Blocking Filter with 1.25" eyepiece holder and male T thread
- Storage: Aluminum finished hard case with fitted foam
- Weight: 6 lbs
Other Information
- Country of Manufacture: United States
