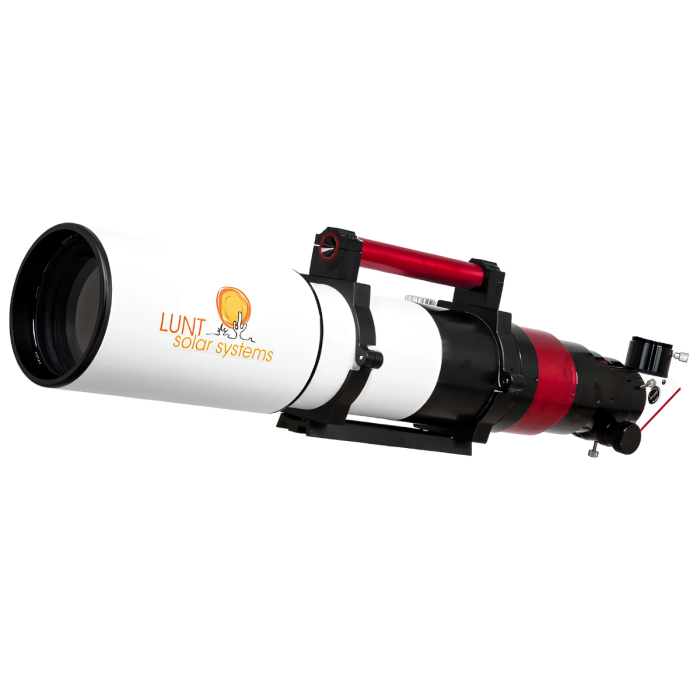

Lunt 100mm Universal Ha Solar Telescope with B1800 Blocking Filter & 10:1 R&P Focuser
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
Lunt Solar Systems has recently upgraded this telescope with a new 0.4Å etalon (standard), delivering even higher contrast and finer solar detail than previous versions. All orders will ship with this latest, improved configuration—no action needed!
- Full 100mm H-alpha aperture reveals stunning prominences, filaments, active regions, and rich solar surface texture
- Quickly converts from a H-Alpha solar telescope to a nighttime Triplet ED APO refractor
- Precision Doppler True pressure tuning allows fine adjustment for maximum contrast and enhanced visibility of subtle solar features
- Optional internal double-stack filter available for ultra-narrow <0.28Å (sold separately)
Lunt Universal Day & Night Solar Telescope: Brighter Prominences and Darker Skies!
By day, the Lunt Solar Systems LS100MT operates as an H-alpha solar powerhouse, utilizing a premium 100 mm FPL51/FPL53 ED Triplet optical system with ion-assisted broadband AR coatings. This reference-grade glass works in tandem with an internal pressure-tuned etalon to deliver a verified, uniform <0.4Å bandpass across the entire aperture, resolving finer prominence structures, sharper filament definition, and pristine chromospheric detail. Equipped with a generous B1800 blocking filter to fully illuminate full-frame imaging sensors without vignetting, the system features a ZWO EAF-compatible dual-speed focuser built for serious imaging and visual observation. The modular design allows you to add a DS100 double-stack module at any time ( sold seperately ) to drop the combined bandpass to an industry-leading <0.28Å.
When the sun sets, the LS100MT easily transitions into one of the finest 100 mm f/7 nighttime triplet refractors available by simply removing the H-alpha module and installing the night-sky backing plate. Because it is built around reference-grade FPL53 ED triplet optics rather than a standard doublet, it eliminates chromatic aberration to deliver exceptional color correction, contrast, and resolution across the night sky. Whether you are hunting for faint deep-sky nebulae, imaging distant galaxies, or observing crisp planetary detail, this telescope applies its world-class mechanical and optical quality to everything the night sky has to offer without requiring a second instrument.
True Doppler Tuning.
At the heart of the system is Lunt’s precision Doppler True pressure tuning technology, allowing you to make fine adjustments to the etalon for optimal contrast and visibility of different solar features. The upgraded etalon system enhances the viewing experience even further, bringing out more structure and subtle detail across the solar disk.
Please note: Mounts and tripods shown are for display purposes only and are not included with Solar Ready packages.
Specifications
- Telescope Type: Universal Day and Night
- Aperture: 100 mm
- Objective Type: Professional Grade APO Triplet
- Objective Material: FLP53
- Objective Coating: Ion Assist Broadband AR
- Focal Ratio: F/7
- Focal Length: 700 mm
-
Blocking Filter Included: B1800 1.25-inch diagonal
-
Focuser:
-
-
2" R&P dual-speed 10:1
-
ZWO EAF compatible
- 55-60 mm (2.2-2.4 in) focus travel
- 6.6 lb (3 kg) capacity
-
-
- H-alpha Etalon Type: Modular
- Etalon Bandpass: <0.4Å Single Stack - Individually verified
-
Double Stack (sold separately): <0.28Å combined
- Telescope Weight: 12.7 lb (5.76 kg)
- Etalon Tuning: Doppler True Barometric Pressure Tuning
- Theoretical Max Magnification: 175x
Other Information
- Country of Manufacture: United States
