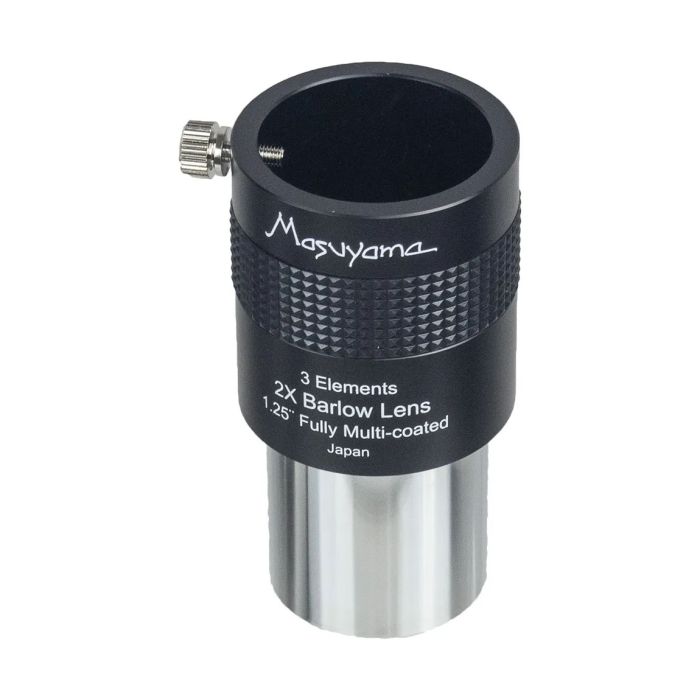

Masuyama 1.25" 2x 3-Element Barlow Lens
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
Note: The recommended bolt case for this Masuyama barlow with the set screw attached is 45mmx80mm (not included)
Masuyama 1.25" 2x 3-Element Barlow Lens
- Triplet lens configuration
- Weighs 3.9 oz / 110.5 g
- Fully multi-coated
Other Information
- Country of Manufacture: Japan
Note: The recommended bolt case for this Masuyama barlow with the set screw attached is 45mmx80mm (not included)
Masuyama 1.25" 2x 3-Element Barlow Lens
- Triplet lens configuration
- Weighs 3.9 oz / 110.5 g
- Fully multi-coated
| Manufacturer | Masuyama |
|---|
| Size Format | 1.25 inch |
|---|---|
| Magnification Factor | 2x |
| Number of Lens Elements | 3 |
| Lens Coatings | Fully multi-coated |
| Total Length | 2.94 inches / 74.6mm |
| Length of Nosepiece | 1.25 inches / 31.6 mm |
| Outside Length of Upper Body | 1.69 inches / 43 mm |
| Insertion Depth | 1.25 inches / 31.6mm |
| Max Diameter Excluding Thumbscrew | 1.57 inches / 39.9 mm |
| Clear Aperture | 1.06 inches / 27 mm |
| Weight | 3.9 oz / 110.5 g |
| Barlow Lens Cell Removable | No |
| Filter Threads at Bottom of Barlow Cell | No |
| Filter Threads Between Barlow Cell and Tube | N/A |
| Barrel Type | Smooth side |
| Compatible Agena Bolt Case (with Screw Removed) | 42x80 |
| Compatible Bolt Case (with Screw Attached) | 45x80 |
| Number of Thumbscews | 1 |
| Thumbscrew Thread Specification | M3.5x0.6 |
| End Caps (Subject to change without notice) | 2 |
| Compression Band/Ring in Eyepiece Holder | No |
| Country of Manufacture | Japan |
Note: The recommended bolt case for this Masuyama barlow with the set screw attached is 45mmx80mm (not included)
Masuyama 1.25" 2x 3-Element Barlow Lens
- Triplet lens configuration
- Weighs 3.9 oz / 110.5 g
- Fully multi-coated
Other Information
- Country of Manufacture: Japan
| Manufacturer | Masuyama |
|---|
| Size Format | 1.25 inch |
|---|---|
| Magnification Factor | 2x |
| Number of Lens Elements | 3 |
| Lens Coatings | Fully multi-coated |
| Total Length | 2.94 inches / 74.6mm |
| Length of Nosepiece | 1.25 inches / 31.6 mm |
| Outside Length of Upper Body | 1.69 inches / 43 mm |
| Insertion Depth | 1.25 inches / 31.6mm |
| Max Diameter Excluding Thumbscrew | 1.57 inches / 39.9 mm |
| Clear Aperture | 1.06 inches / 27 mm |
| Weight | 3.9 oz / 110.5 g |
| Barlow Lens Cell Removable | No |
| Filter Threads at Bottom of Barlow Cell | No |
| Filter Threads Between Barlow Cell and Tube | N/A |
| Barrel Type | Smooth side |
| Compatible Agena Bolt Case (with Screw Removed) | 42x80 |
| Compatible Bolt Case (with Screw Attached) | 45x80 |
| Number of Thumbscews | 1 |
| Thumbscrew Thread Specification | M3.5x0.6 |
| End Caps (Subject to change without notice) | 2 |
| Compression Band/Ring in Eyepiece Holder | No |
| Country of Manufacture | Japan |
Masuyama 1.25" 2x 3-Element Barlow Lens
