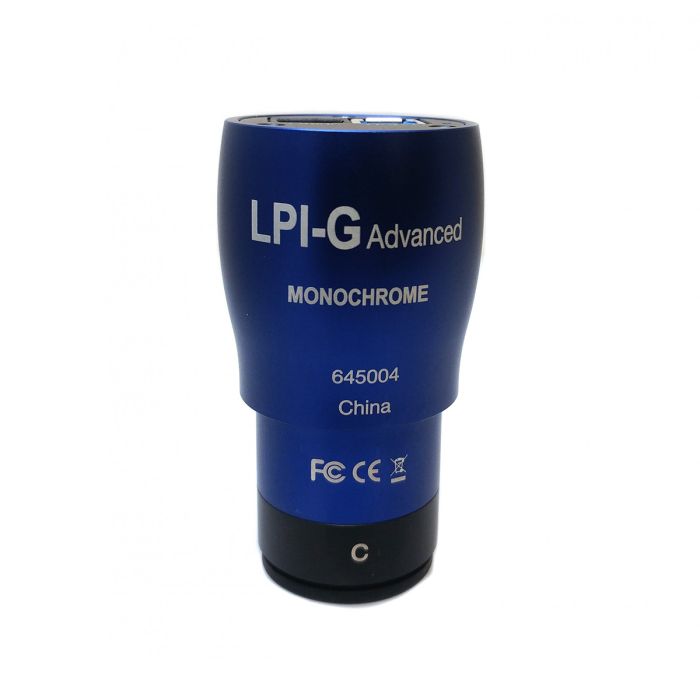

Meade LPI-G Advanced Camera - Lunar, Planetary Imager and Guider (Monochrome)
This item is discontinued by the manufacturer and is no longer available.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Closeout - All sales final
- CMOS - SONY IMX178 Image Sensor
- 6.3 Megapixels (3072 x 2048)
- 1.25" Nosepiece, C-Mount
- 2.4µm x 2.4µm Pixel Size
- Can be used for Auto-Guiding, or Astrophotography of Solar System Objects
The LPI-G Advanced allows the user to experience our universe on a whole new level with Meade's Advanced solar, lunar, and planetary guide camera.
This USB 3.0 14-bit camera allows for increased dynamic range allowing the user to experience the universe like never before! The LPI-G Advanced features a large image sensor along with a high pixel count that allows for increased resolution, making it ideal for planets and solar imaging. The LPI-G Advanced has a back illuminated CMOS - SONY IMX178, image sensor with 2.4 x 2.4 micron pixel size and pixel array of 6.3 Megapixels (3072 x 2048). This Imager & Guider is able to take 59 frames per second at full resolution. The camera has a 3.0 connection and ASCOM ST-4 Guider Port for easy connection to the mount.
The LPI-G Advanced also includes a high-speed USB 3.0 connecting cable, ST-4 Guide Cable, 1.25" nose extension with C-Mount, and Meade Sky Capture Software on CD Rom - includes Installation and Operating instructions.
The LPI-G Advanced is able to save images in a variety of formats including: JPEG, BITMAP, FITS, TIFF, PNG, PCX, TGA & BCM. It can also save videos in either SER or AVI formats.
Will work with the following Operating Systems:
- Microsoft Windows XP (32 & 64 Bit)
- Microsoft Windows Vista (32 & 64 Bit)
- Microsoft Windows 7 (32 & 64 Bit)
- Microsoft Windows 8 (32 & 64 Bit)
- Microsoft Windows 10 (32 & 64 Bit)
- Mac OS X
- Linux
Computer Requirements: Equal to Intel Core 2.8GHz or higher. Solid State hard drive recommended for getting the maximum frame rates.
The LPI-G Advanced is available in both Color & Monochrome.
*NOTE* When using to image the Sun, use appropriate solar filters.
Specifications:
- UPC: 709942999426
- Power Source: DC 5V over PC USB port
- Warranty: 1 Year
- Contents Included
- LPI-G Monochrome camera
- High Speed USB 3.0 A male to B male gold plated connectors' cable/ 1.5m
- ST-4 Guide cable - 1.5m guide cable
- 1.25" nose extension with C-mount
- Meade Sky Capture Software on CD ROM- Includes Installation and Operating Instructions.
- Operating Temperature: -10c - 50c
- Product Dimensions: 1.24" diameter. 1.7" x 2.8" (43mm x 72mm)
- Product Weight: 3.4 Ounces
Product carries full one year Meade factory limited warranty (within US/Canada only).
Other Information
- Country of Manufacture: China
