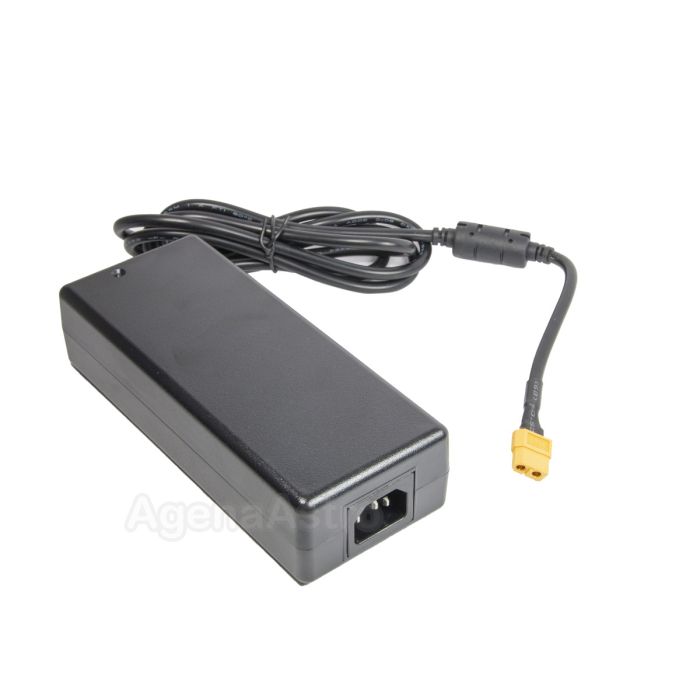

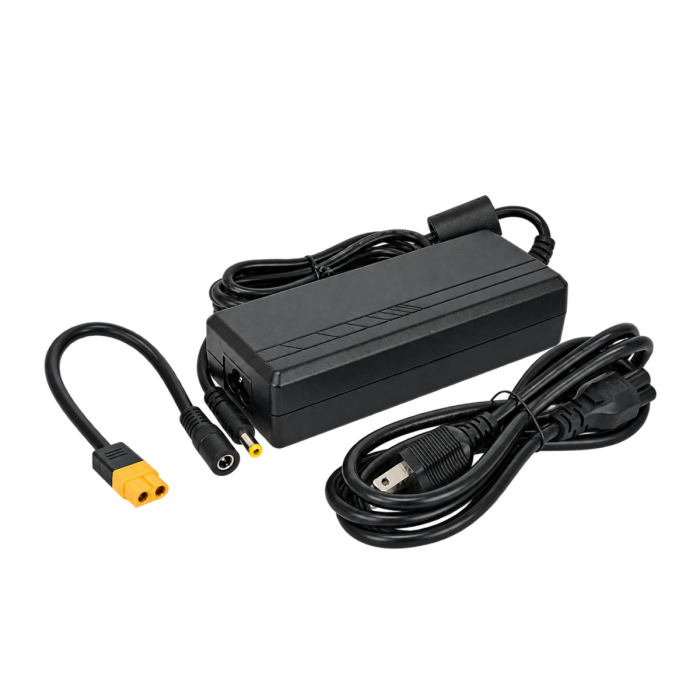

12V/10A DC Power Supply Unit: XT60 Connector Plug for UPB2 & UPB3 only
Please Note: This power supply # PA-PSU-XT60 features an XT connector for use with the Pegasus Ultimate Powerbox v2 (UPB2) and Ultimate Powerbox v3 (UPB3) only. It is NOT for use with the UPB version 1, Pocket Power Box (PPB) and other products that require a 2.1mm or 2.5mm connector.
Pegasus Astro's sealed and certified switching power supply unit is the perfect match for their astronomical products. It can provide 12V and up to 10Amps. (120W of total power). Low ripple and noise ensures that you will provide the required and correct “electric juice” to your precious equipment. Comes together with a 1.8m long US power cord.
Specification
- Output Voltage: 12V
- Loading: 0-10 Amps
- Max. Power: 120 Watt
- Input Voltage Range: 90-264V
- Connector Size: XT60 (2.1mm and 2.5mm versions sold separately)
- Frequency: (47-63) Hz
- Cord Length: 150cm / 5 feet
- Regulated Output With Low Ripple Noise
- Sealed / Protected Enclosure (humidity / dust cannot enter)
- Safety Agency Requirements and EMI/EMS Certified
- Efficiency level (ErP) : VI
- CE and FCC certificate acquired
- Dimensions: 169 x 61 x 39 [mm]
Protections
- Over current/ Short protection: The power supply will self-protect any output to ground & auto recovery when abnormal circuit faults remove. An output short circuit is defined as any output impedance less than 0.1 ohms.
- Over Voltage: The power supply will be auto recovered when faults remove
- Input protection: F1:6.3A 250V Fuse The power supply shall be protected against power line surges and any abnormal condition
- No Load protection: The power supply is provided with no load operation to prevent the power supply and system from damage.
- Protection class I, (ITU-T K.21 Surge 6KV on request)
Certifications
Other Information
- Country of Manufacture: Greece
