Pegasus Astro EQDir Bluetooth Adapter for EQMOD with RJ45 / DB9 Connectors
This item is discontinued by the manufacturer and is no longer available.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).

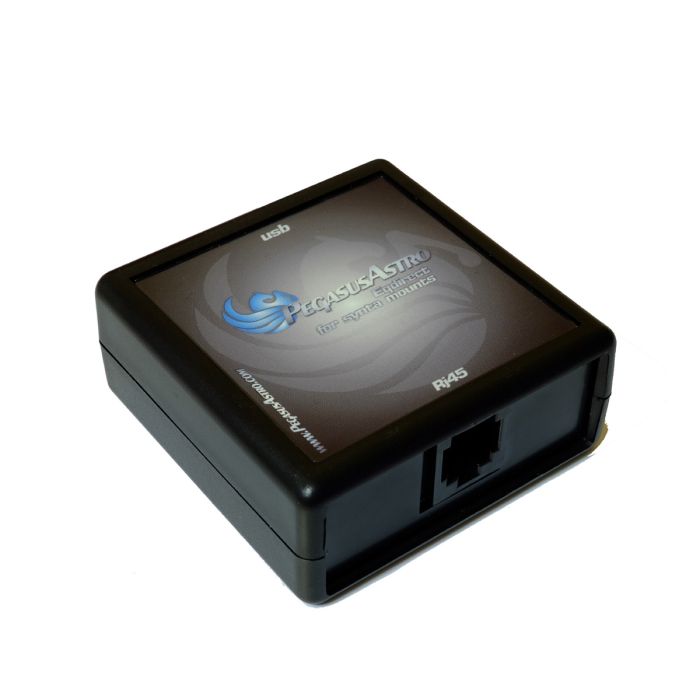

Our compact EQDir Bluetooth Adapter for EQMOD allows direct connection of Skywatcher EQ5 PRO, HEQ5 Syntrek/PRO, NEQ6 Syntrek/PRO, AZ EQ5-GT, AZ EQ6-GT, EQ6-R, and EQ8 mounts to your Bluetooth 2.1 supported PC or laptop. With this adapter you can remote control your Skywatcher mount directly via PC. No handbox controller is needed and the device is perfect for remote observatories
Bluetooth Module
The device uses a bluetooth module. This chip is fully compatible and functional with Windows XP, 7 , 8, 10, OSX, Linux. There is no need to install external drivers as Windows Update will install the latest bluetooth driver. Just plug it in your PC and associate bluetooth device..
Led indication
A red LED (operation indicator) exists on the side of the device. It will turn on when the device is plugged in the equatorial mount.
EQDIR adapter can use both cables (adapter included)
Choose the appropriate model (DB9 or RJ45) for your mount model. You can use the same device in both of your mounts. Just attach the RJ45 to DB9 adapter for Skywatcher EQ6 and NEQ6 mounts.
Compact size
66 x 66 x 28 mm
In the box
- EQDir Bluetooth adapter dDevice
- RJ45 to RJ45 cable
- RJ45 to DB9 connector plug
Mount Compatability
RJ45 Cable type
- Skywatcher HEQ5
- Skywatcher AZ-HEQ5
- Skywatcher AZ-EQ6
- Skywatcher EQ6-R
- Skywatcher EQ8
- Skywatcher EQ6-R Pro
DB9 Cable type
- Skywatcher EQ6
- Skywatcher NEQ6
Specifications
- Mount Connector: RJ45 Socket
- Bluetooth Specs:
- (Bluetooth Model) Bluetooth v2.1 version
- Name / ID: PA-EQDIR-XXXX (Where XXXX the unique identifier of the device) ,
- Baud rate: 9600 ,
- Pairing code / password: 1234
- Effective distance of operation: 10 meters
- Cable to mount RJ45 to RJ45 or RJ45 to DB9
- Dimensions 66 mm x 66 mm x 28 mm
Other Information
- Country of Manufacture: Greece
Our compact EQDir Bluetooth Adapter for EQMOD allows direct connection of Skywatcher EQ5 PRO, HEQ5 Syntrek/PRO, NEQ6 Syntrek/PRO, AZ EQ5-GT, AZ EQ6-GT, EQ6-R, and EQ8 mounts to your Bluetooth 2.1 supported PC or laptop. With this adapter you can remote control your Skywatcher mount directly via PC. No handbox controller is needed and the device is perfect for remote observatories
Bluetooth Module
The device uses a bluetooth module. This chip is fully compatible and functional with Windows XP, 7 , 8, 10, OSX, Linux. There is no need to install external drivers as Windows Update will install the latest bluetooth driver. Just plug it in your PC and associate bluetooth device..
Led indication
A red LED (operation indicator) exists on the side of the device. It will turn on when the device is plugged in the equatorial mount.
EQDIR adapter can use both cables (adapter included)
Choose the appropriate model (DB9 or RJ45) for your mount model. You can use the same device in both of your mounts. Just attach the RJ45 to DB9 adapter for Skywatcher EQ6 and NEQ6 mounts.
Compact size
66 x 66 x 28 mm
In the box
- EQDir Bluetooth adapter dDevice
- RJ45 to RJ45 cable
- RJ45 to DB9 connector plug
Mount Compatability
RJ45 Cable type
- Skywatcher HEQ5
- Skywatcher AZ-HEQ5
- Skywatcher AZ-EQ6
- Skywatcher EQ6-R
- Skywatcher EQ8
- Skywatcher EQ6-R Pro
DB9 Cable type
- Skywatcher EQ6
- Skywatcher NEQ6
Specifications
- Mount Connector: RJ45 Socket
- Bluetooth Specs:
- (Bluetooth Model) Bluetooth v2.1 version
- Name / ID: PA-EQDIR-XXXX (Where XXXX the unique identifier of the device) ,
- Baud rate: 9600 ,
- Pairing code / password: 1234
- Effective distance of operation: 10 meters
- Cable to mount RJ45 to RJ45 or RJ45 to DB9
- Dimensions 66 mm x 66 mm x 28 mm
Our compact EQDir Bluetooth Adapter for EQMOD allows direct connection of Skywatcher EQ5 PRO, HEQ5 Syntrek/PRO, NEQ6 Syntrek/PRO, AZ EQ5-GT, AZ EQ6-GT, EQ6-R, and EQ8 mounts to your Bluetooth 2.1 supported PC or laptop. With this adapter you can remote control your Skywatcher mount directly via PC. No handbox controller is needed and the device is perfect for remote observatories
Bluetooth Module
The device uses a bluetooth module. This chip is fully compatible and functional with Windows XP, 7 , 8, 10, OSX, Linux. There is no need to install external drivers as Windows Update will install the latest bluetooth driver. Just plug it in your PC and associate bluetooth device..
Led indication
A red LED (operation indicator) exists on the side of the device. It will turn on when the device is plugged in the equatorial mount.
EQDIR adapter can use both cables (adapter included)
Choose the appropriate model (DB9 or RJ45) for your mount model. You can use the same device in both of your mounts. Just attach the RJ45 to DB9 adapter for Skywatcher EQ6 and NEQ6 mounts.
Compact size
66 x 66 x 28 mm
In the box
- EQDir Bluetooth adapter dDevice
- RJ45 to RJ45 cable
- RJ45 to DB9 connector plug
Mount Compatability
RJ45 Cable type
- Skywatcher HEQ5
- Skywatcher AZ-HEQ5
- Skywatcher AZ-EQ6
- Skywatcher EQ6-R
- Skywatcher EQ8
- Skywatcher EQ6-R Pro
DB9 Cable type
- Skywatcher EQ6
- Skywatcher NEQ6
Specifications
- Mount Connector: RJ45 Socket
- Bluetooth Specs:
- (Bluetooth Model) Bluetooth v2.1 version
- Name / ID: PA-EQDIR-XXXX (Where XXXX the unique identifier of the device) ,
- Baud rate: 9600 ,
- Pairing code / password: 1234
- Effective distance of operation: 10 meters
- Cable to mount RJ45 to RJ45 or RJ45 to DB9
- Dimensions 66 mm x 66 mm x 28 mm
Other Information
- Country of Manufacture: Greece
