Pegasus Astro Falcon Camera Field Rotator
This item is discontinued by the manufacturer and is no longer available.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Please note: The "DC Cable to Cigarette Lighter Adapter # PAOA-PA-CIGLIGHT-ADAPTER25" which was previously included with this item is no longer included by Pegasus. This is available for separate purchase if required.

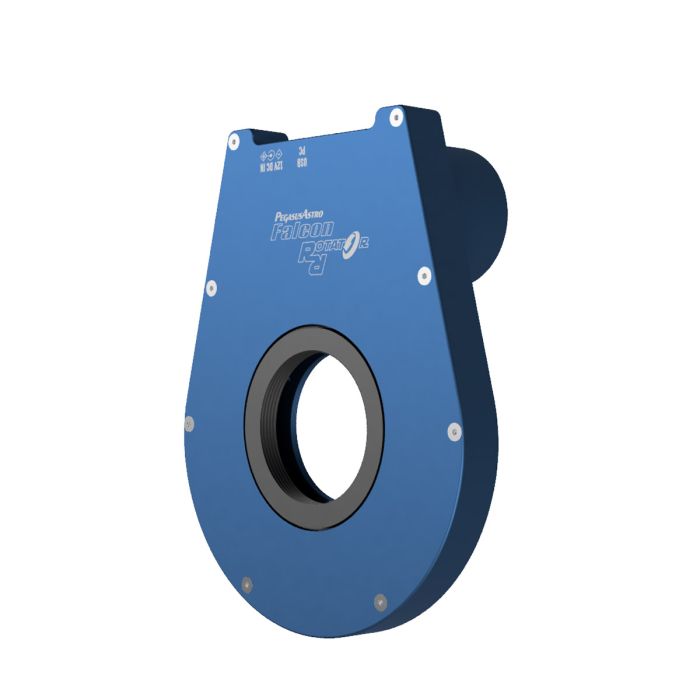

Pegasus Astro – Falcon Rotator is a light-weighted, low profile camera field rotator. Do not be fooled by its thin size! It can lift and handle heavy image trains – dead accurate! Very easy to operate via ASCOM drivers or standalone software will make your life easier to automatically adjust with precision your camera field.
Low profile / M54 threaded
Thickness of the rotator is 18mm / 0.7”. Weight is 700grams. Both openings of the rotator are M54 threaded
Adapters for both sides (included)
We provide two different adapters for both sides:
- Telescope Side: M54 male to 2” Nosepiece
- Camera Side: M54 Male to M48 Male Adapter
Precise rotation
A powerful geared / low backlash stepper motor ensures that the rotator will lock to the designated degrees. Mechanics inside the focuser guarantee zero flex in any point during a full circle rotation.
ASCOM & INDI Support
Rotator is fully ASCOM6 supported. INDI support will follow by the time of the launch
Standalone Software
Control the Falcon Rotator from the supplied standalone Windows software.
In the box
- Falcon Rotator
- M54 male to 2” Nosepiece
- M54 Male to M48 Male Adapter
- USB TypeB cable (1.8m)
Specifications:
- Physical Size: 180mm x 140mm x 56mm
- Material: Blue Anodised Aluminium
- Clear Aperture: 54mm / 2.13”
- Motor Step Angle : 0.0625 degrees/step
- Telescope Adapter: M54 male to 2” Nosepiece
- Camera Adapter: M54 Male to M48 Male Adapter
- Back-Focus: 18mm / 0.7”
- Weight: 0.7Kg
- Connectivity: USB 2.0
- Operating Voltage: 12V / 1Amp
Other Information
- Country of Manufacture: Greece
