Pegasus Astro FlatMaster 120 Dimmable Flat Field Illumination Panel
This item is discontinued by the manufacturer and is no longer available.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Please note: This item has been discontinued by Pegasus. They will be introducing a new 250mm flat panel by September and a 150mm panel after that.

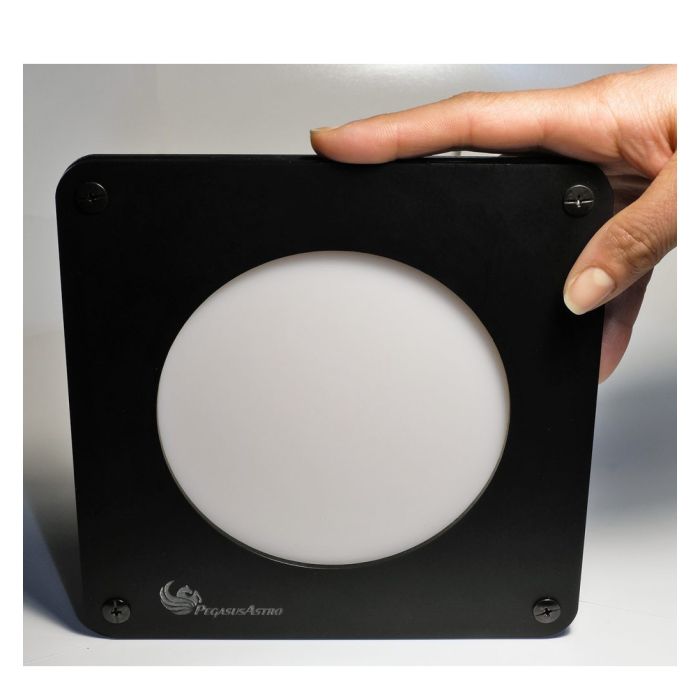

The Pegasus Astro FlatMaster is our new flatfield electroluminescent panel. It provides a uniform source of illumination and produces high quality flat field frames for astrophotography and photometric captures.
Dimmable EL Panel
Unlike other EL panels in the market, the FlatMaster can easily adjust its brightness. Forget sheets of paper between your telescope and the panel. Remote control the EL lamp of your panel. Store the brightness per filter and immediately retrieve the value you need.
Manual Button
Device has a small push button which sets five (5) levels of brightness. In case you would like to manually operate the FlatMaster, no problem, just click the push button to control the brightness.
One cable operation
Only one mini USB cable provides power and control of your panel.
Standalone Software
Software allows to set filter names and store / retrieve brightness levels of your FlatMaster panel
ASCOM Compliant
FlatMaster is supported by our ASCOM switch driver which allows ASCOM compliant programs to control the panel.
Specifications:
- Type: Electroluminescent Panel (White)
- Dimmable: Yes – (255 brightness levels)
- Manual Push Button: 5 brightness levels
- Usable diameter of circle:Â 120mm / 4.72 inches
- Power requirements: 5V DC provided by USB mini cable
- Size: 180 mm x 180 mm x 9mm
- Weight: 300g
Â
Other Information
- Country of Manufacture: Greece
The Pegasus Astro FlatMaster is our new flatfield electroluminescent panel. It provides a uniform source of illumination and produces high quality flat field frames for astrophotography and photometric captures.
Dimmable EL Panel
Unlike other EL panels in the market, the FlatMaster can easily adjust its brightness. Forget sheets of paper between your telescope and the panel. Remote control the EL lamp of your panel. Store the brightness per filter and immediately retrieve the value you need.
Manual Button
Device has a small push button which sets five (5) levels of brightness. In case you would like to manually operate the FlatMaster, no problem, just click the push button to control the brightness.
One cable operation
Only one mini USB cable provides power and control of your panel.
Standalone Software
Software allows to set filter names and store / retrieve brightness levels of your FlatMaster panel
ASCOM Compliant
FlatMaster is supported by our ASCOM switch driver which allows ASCOM compliant programs to control the panel.
Specifications:
- Type: Electroluminescent Panel (White)
- Dimmable: Yes – (255 brightness levels)
- Manual Push Button: 5 brightness levels
- Usable diameter of circle:Â 120mm / 4.72 inches
- Power requirements: 5V DC provided by USB mini cable
- Size: 180 mm x 180 mm x 9mm
- Weight: 300g
Â
Please note: This item has been discontinued by Pegasus. They will be introducing a new 250mm flat panel by September and a 150mm panel after that.
The Pegasus Astro FlatMaster is our new flatfield electroluminescent panel. It provides a uniform source of illumination and produces high quality flat field frames for astrophotography and photometric captures.
Dimmable EL Panel
Unlike other EL panels in the market, the FlatMaster can easily adjust its brightness. Forget sheets of paper between your telescope and the panel. Remote control the EL lamp of your panel. Store the brightness per filter and immediately retrieve the value you need.
Manual Button
Device has a small push button which sets five (5) levels of brightness. In case you would like to manually operate the FlatMaster, no problem, just click the push button to control the brightness.
One cable operation
Only one mini USB cable provides power and control of your panel.
Standalone Software
Software allows to set filter names and store / retrieve brightness levels of your FlatMaster panel
ASCOM Compliant
FlatMaster is supported by our ASCOM switch driver which allows ASCOM compliant programs to control the panel.
Specifications:
- Type: Electroluminescent Panel (White)
- Dimmable: Yes – (255 brightness levels)
- Manual Push Button: 5 brightness levels
- Usable diameter of circle:Â 120mm / 4.72 inches
- Power requirements: 5V DC provided by USB mini cable
- Size: 180 mm x 180 mm x 9mm
- Weight: 300g
Â
Other Information
- Country of Manufacture: Greece
