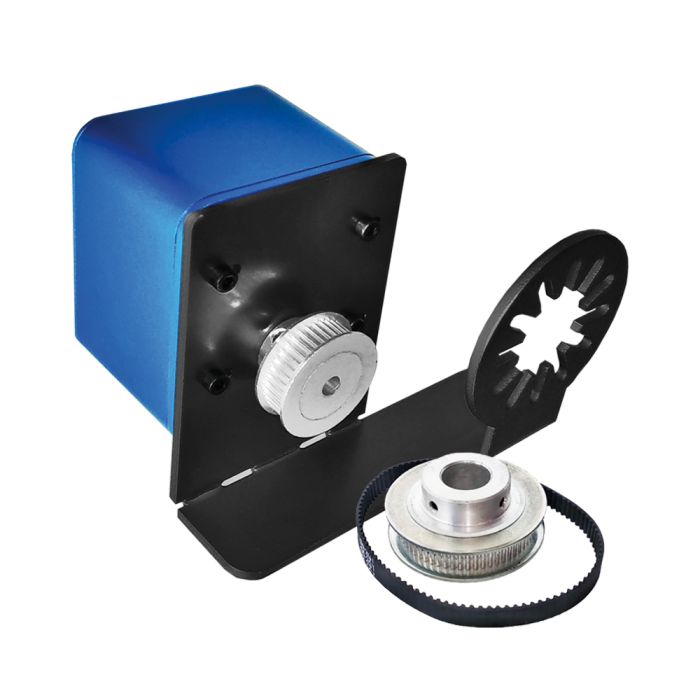

Pegasus Astro FocusCube 2 Focuser Motor - For Celestron 14" SCTs
Sku:
ZZPAOA-ZZPA-FC2-SCT14
Mfg #:
PEG-FC2-SCT14
The price depends on the chosen options
Final product price
Discontinued by Manufacturer
This item is discontinued by the manufacturer and is no longer available.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
SKU:
ZZPAOA-ZZPA-FC2-SCT14
Mfg #:
PEG-FC2-SCT14
Important Note
Closeout - All Sales Final!
This model is being phased out and replaced by a newer, faster version (# PEG-FCZERO-SCT14). Regular price $360.70. Sale price listed above. Save 15% on this discontinued version while supplies last.
IMPORTANT NOTES:
- The FocusCube is a standalone device and includes controller functionality via software. No physical hand controller is included nor is it necessary. However, Pegasus Astro now offers an optional external hand controller (sold separately) for those who want that convenience.
- DO NOT connect it with the Dual Motor Focus Controller or any other controller on the market. The RJ45 port on the left is only for external accessories and the temperature probe at this time.
- The current version of this item features a black mounting bracket and blue motor box as shown in the first photo above. The colors are not reversed as shown in several other photos above.
Description
Description
Focus your telescope quickly, reliably and accurately by using the “FocusCube 2″. The evolution of technology in astronomy requires a system which will assist the focusing of the telescope with great accuracy. Fast optics and modern camera devices require automatic focusing in small periods of time as temperature can affect focal length and modify the optimal focus position. Pegasus' FocusCube has been developed to meet all of these requirements.
Featuring high quality modern electronics, the FocusCube can provide precise digital focus control from a PC. The device includes a stepper motor for absolute position focusing. The electronics and stepper motors are enclosed in a compact sized box. Do not be fooled by its size! This device can easily lift more than 6kg (212 ounces) of imaging equipment when the telescope points to the zenith!
This stepper motor is a high resolution geared stepper motor (Step Angle 7.5, Deg 120, Gear Ration 1:120). Its gearbox has very low backlash and high torque suitable to focus in micron scale! You only need this device to focus! Attach the FocusCube to your refractor / reflector / SCT telescope, plug the power, USB cable, download ASCOM drivers or standalone software and you are ready to go!
1. High torque & resolution stepper motor
Embedded unipolar stepper motor has a powerful and very low backlash gearbox. Motor step angle is 7.5 deg but the 1:120 reduction gearbox turns the reduction rate to 0.06255 deg / step. As firmware implements half step drive, the motor can execute twice the steps per cycle. This means 11510 steps per cycle! Bottom line: You can focus in microns, easily and with great accuracy.
The motor can lift up to 6kg (212 ounces) of imaging equipment when the telescope points to the zenith!
2. Two designs
You can choose between:
- Universal bracket: which fits many non-SCT focusers on the market (sold separately) or
- SCT Brackets: SCT bracket fits Celestron C Series, Celestron Edge and Celestron RASA telescopes. These are available in 3 versions:
- Celestron Classic / Edge / RASA 6", 8" and 9.25" telescopes (sold separately)
- With 13mm metal pulley bore diameter and M3x15mm bolts
- Celestron Classic / Edge 11" telescopes (sold separately)
- With 22mm metal pulley bore diameter and M3x30mm bolts
- Not compatible with RASA 11" since that scope has a Feathertouch focuser knob, unless you have Celestron's "Focuser Retrofit Kit for RASA 11" # 94255"
- Celestron Classic / Edge / RASA 14" telescopes (this item)
- With 22mm metal pulley bore diameter and M4x40mm bolts
- Celestron Classic / Edge / RASA 6", 8" and 9.25" telescopes (sold separately)
3. Temperature Probe
An external digital temperature sensor input is located near the motor connector. A digital probe of one meter (3 feet) length is supplied. The probe can be placed near the focuser so the exact temperature of the focuser / environment can be seen through the supplied software or ASCOM driver (probe is always included)
4. Expansion Port / Manual Focus (optional accessory)
The FocusCube includes an expansion RJ45 port on the left side. This port provides input for the temperature sensor. An optional hand controller for manual focus control can be acquired for those who might want to add this functionality.
5. ASCOM supported
The controller is fully compatible with latest ASCOM 6.4
6. INDI (Open Astronomy Instrumentation) supported
The Pegasus Focuscube is fully compatible with INDI. Driver is included in stable libindi.
Official Indi Driver: http://indilib.org/devices/focusers/pegasus-dmfc.html
7. Standalone program supported
The controller can be operated by the standalone software (only available for Windows).
8. All cables are included
- A 1.8m USB Type B cable is included in the package.
- A 1.5m Cigarette lighter adapter power cable is included in the package
9. Firmware upgrade support
Controller firmware supports re-programming via the USB 2.0 connection using upgrade software, for future upgrades which may become available. We constantly receive feedback from our customers and keep updating the firmware and software with new features.
10. 2 Years warranty
For the FocusCube device and the temperature sensor.
11. Compact size
56 x 63 x 39 mm / Weight 300g
12. Specifications
- Supply Voltage: 12V - 13.8V DC
- Motor Compatibility: Stepper Motor is inside the enclosure
- Motor Output: None (Stepper Motor inside in the enclosure)
- USB Connectivity: USB 2.0 Type B plug
- Thermal Sensor Resolution: 9-bit Celsius temperature measurements
- Power Input Connector: 2.1mm Centre Positive Socket
- Motor Specs: High resolution geared stepper motor
- (Step Angle (Deg) 7.5 / 120
- (Gearbox reduction rate = 0.06255 Deg).
- 5755 steps per circle of rotation.
- * Firmware implements half step drive so one motor cycle is 5755 x 2 = 11510 steps
- Very low backlash
- Dimensions: 56 mm x 63 mm x 39 mm
- Weight: 300g
- Operating Temperature: -40 ºC to +80 ºC
Other Information
- Country of Manufacture: Greece
