Pegasus Astro Pocket Powerbox Micro Power Supply
- This item is currently on backorder from the manufacturer.
- Orders are fulfilled in the order they are received once inventory arrives.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- 4 x 12V DC Power outlets for your equipment (ON/OFF via software)
- 10 Amps of total power
- A Voltage Adjustable Output (Can be switched ON/OFF – 3V, 5V, 8V, 9V, 12V)
- 2 Channels PWM Dew Heaters – RCA Outputs (Adjust levels via software)
- Humidity and Temperature Sensor (included)
- Auto Tune Dew Heaters (Auto-Dew)
- Reverse Polarity Protection / Overvoltage Protection

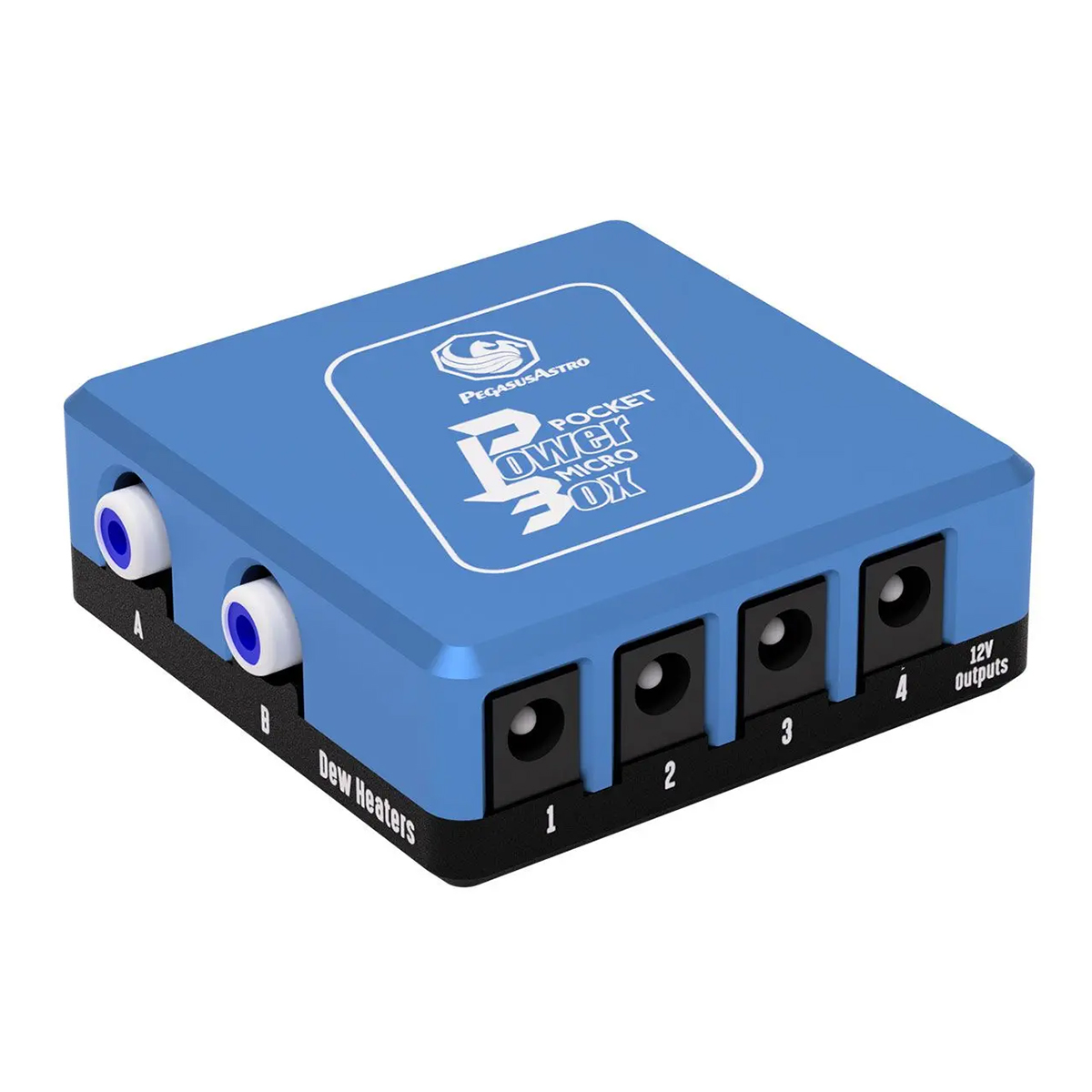

Pocket Powerbox Micro
This small-sized device (in short PPB Micro) is suitable for the “grab and go” astrophotographer. It can provide up to 10 Amps of power and has a sufficient number (4) of 12V Outputs, Two Dew Heater Channels, an adjustable voltage power output, and an environmental sensor to monitor humidity/temperature (dew point).
- Pocket Powerbox Micro is the successor of the Pocket Powerbox
PPB Micro Features
- 4 x 12V DC Power outlets for your equipment
(ON/OFF via software) - 10 Amps of total power
- A Voltage-Adjustable Output
(Can be switched ON/OFF – 3V, 5V, 8V, 9V, 12V) - 2 x Channel PWM Dew Heaters – RCA Outputs
(Adjust levels via software) - Humidity and Temperature Sensor (included)
Auto Tune Dew Heaters (Auto-Dew)
Reverse Polarity Protection, Overvoltage Protection - USB / PC Controlled or Standalone Operation out of the box
Lightweight and extremely compact CNC aluminum enclosure
PowerBox Micro Features
4x 12V DC Power outlets
A powerful mosfet transistor provides “electric juice” to your precious equipment. It supply of electricity 4 outputs. Can switch ON/OFF all four ports (* together – single channel).
Built in Voltmeter
A precise voltmeter measures and displays in real time your input voltage. If the input is more than 14.5V, the power is instantly cut off to protect your equipment from overvoltage.

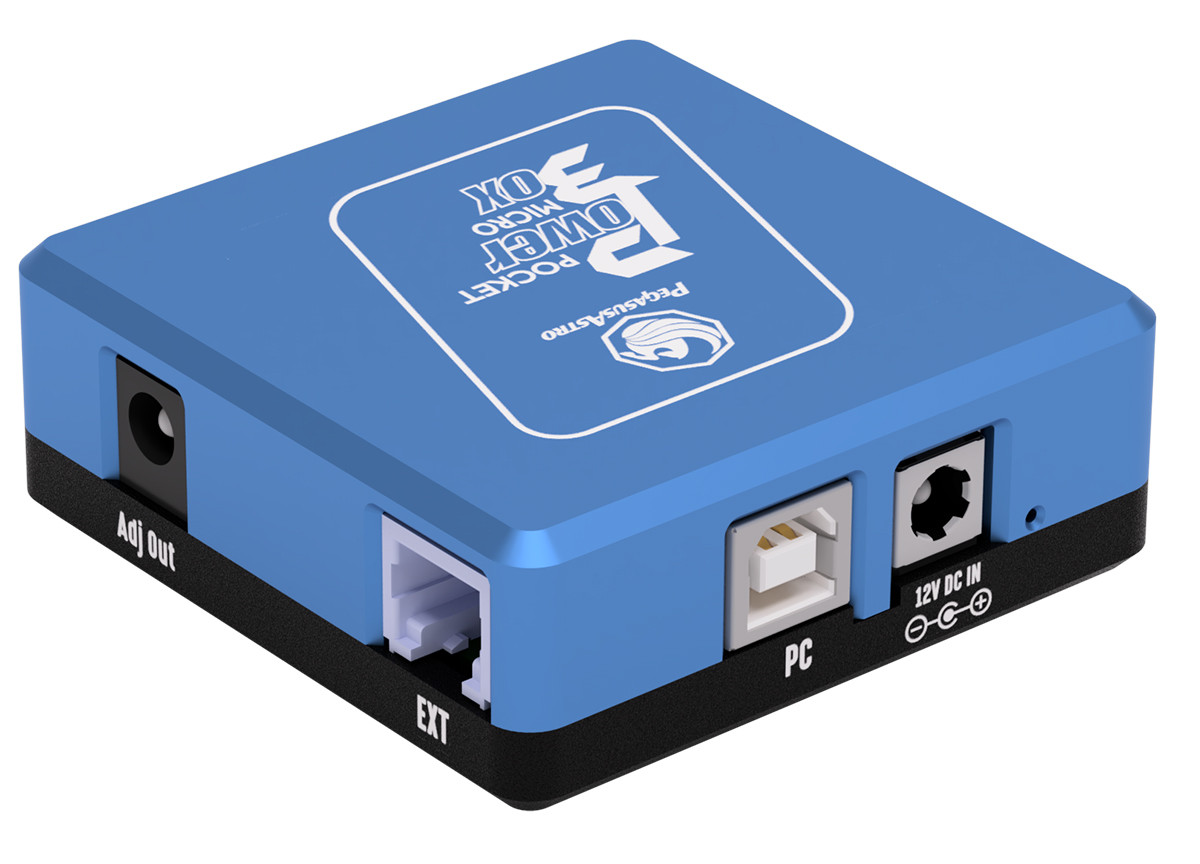

Adjustable Regulated Output
An adjustable output is suitable to provide power to your DSLR / Mirrorless camera / or your RPI3/4. You can tune the voltage to different levels (3, 5, 7, 8, 9, 12 Volts).

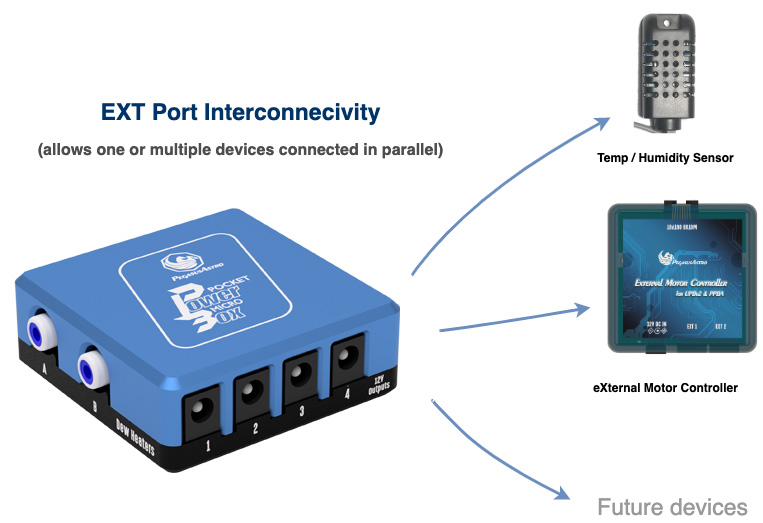

Expansion Port (EXT)
EXT (expansion) port is available for device expansion. This RJ12 socket allows the connectivity of current and future Pegasus Astro products. Plugged devices can be controlled from Pocket Powerbox Unity Platform or a dedicated ASCOM driver.
The device supports the eXternal Motor Controller

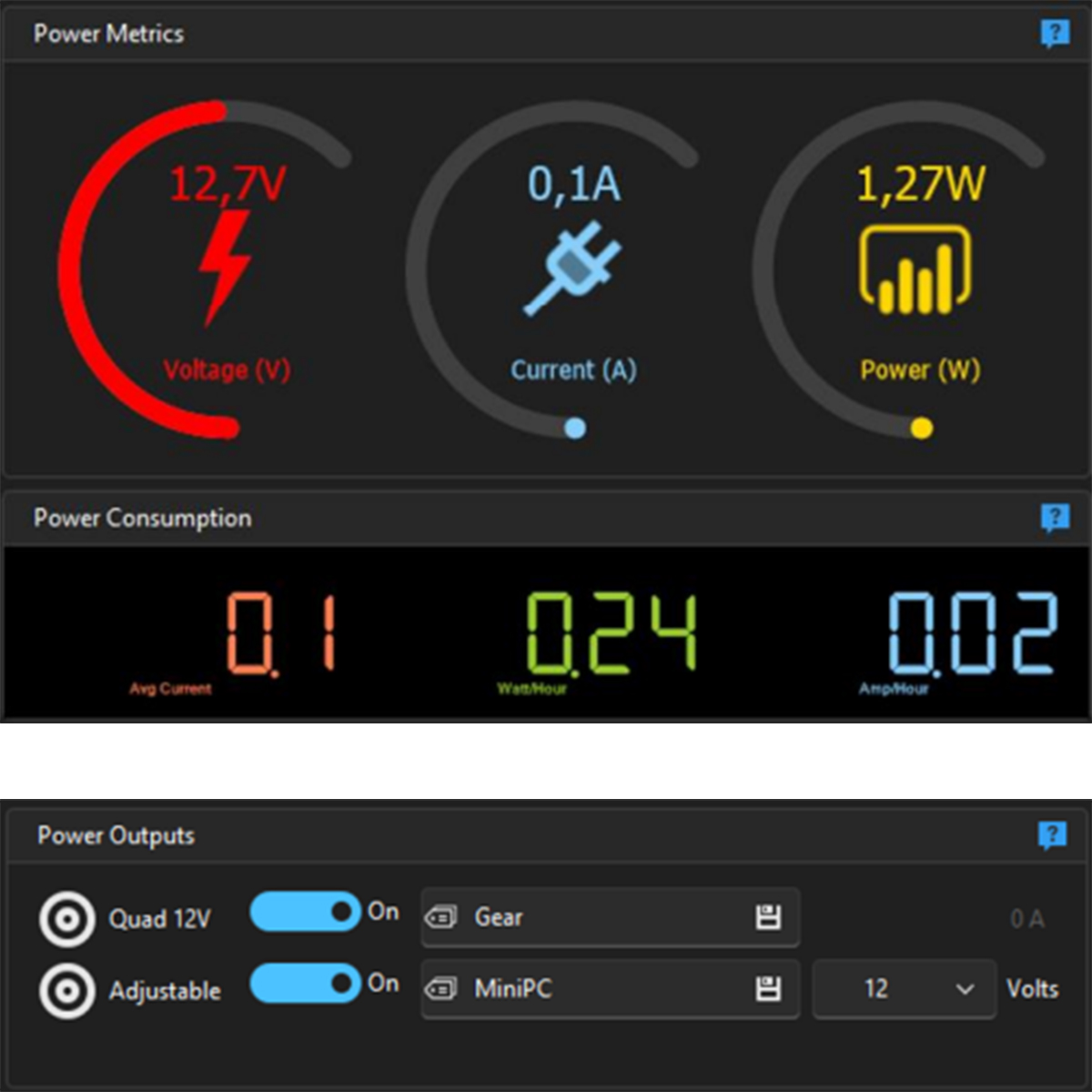

Built in Amp-meter
An Amp-meter which is installed right after the DC input, reports the total electric current.
Moreover, there are three additional amp-meters: One for the 12V quad outputs and two for the Dew Heater Channels. This allows you to easily monitor the detailed and overall power consumption of your equipment.

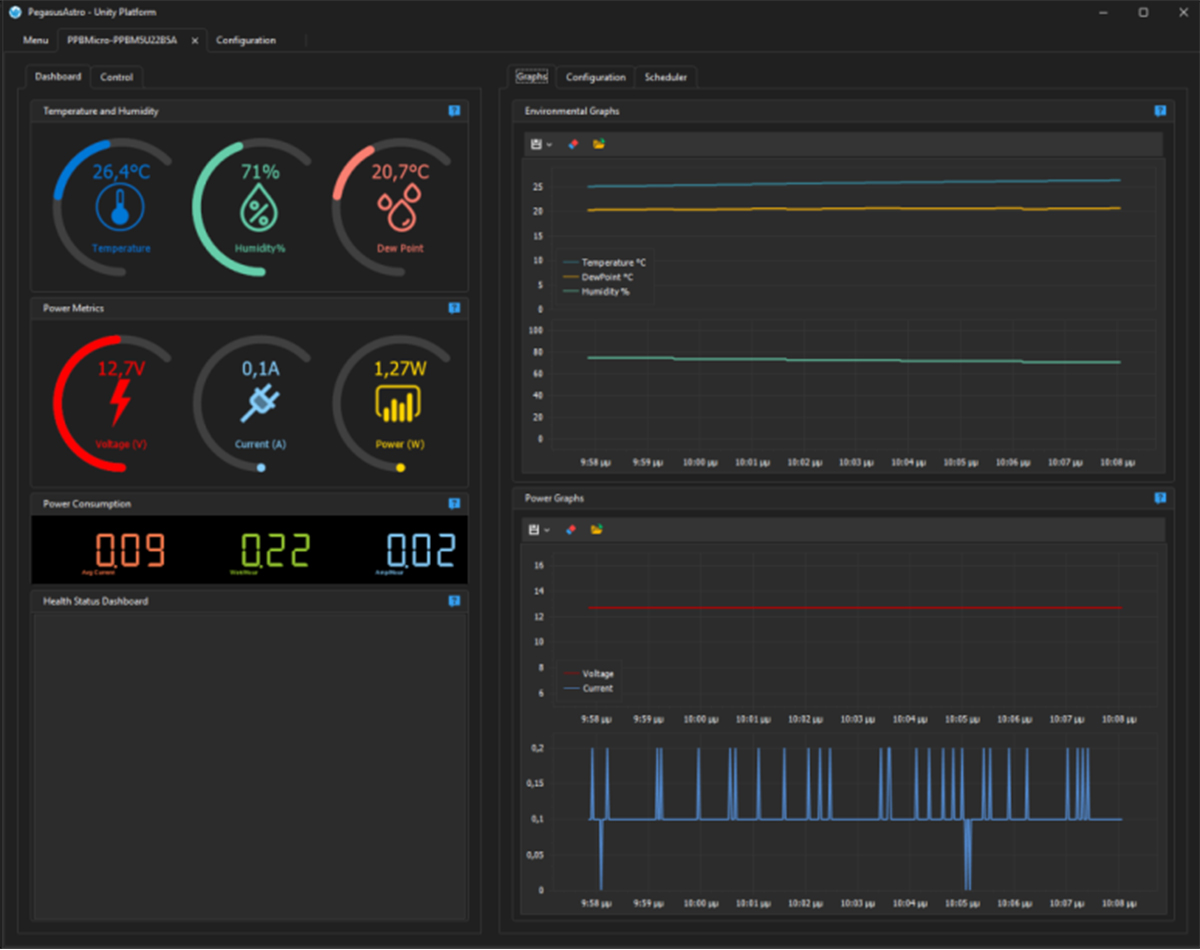

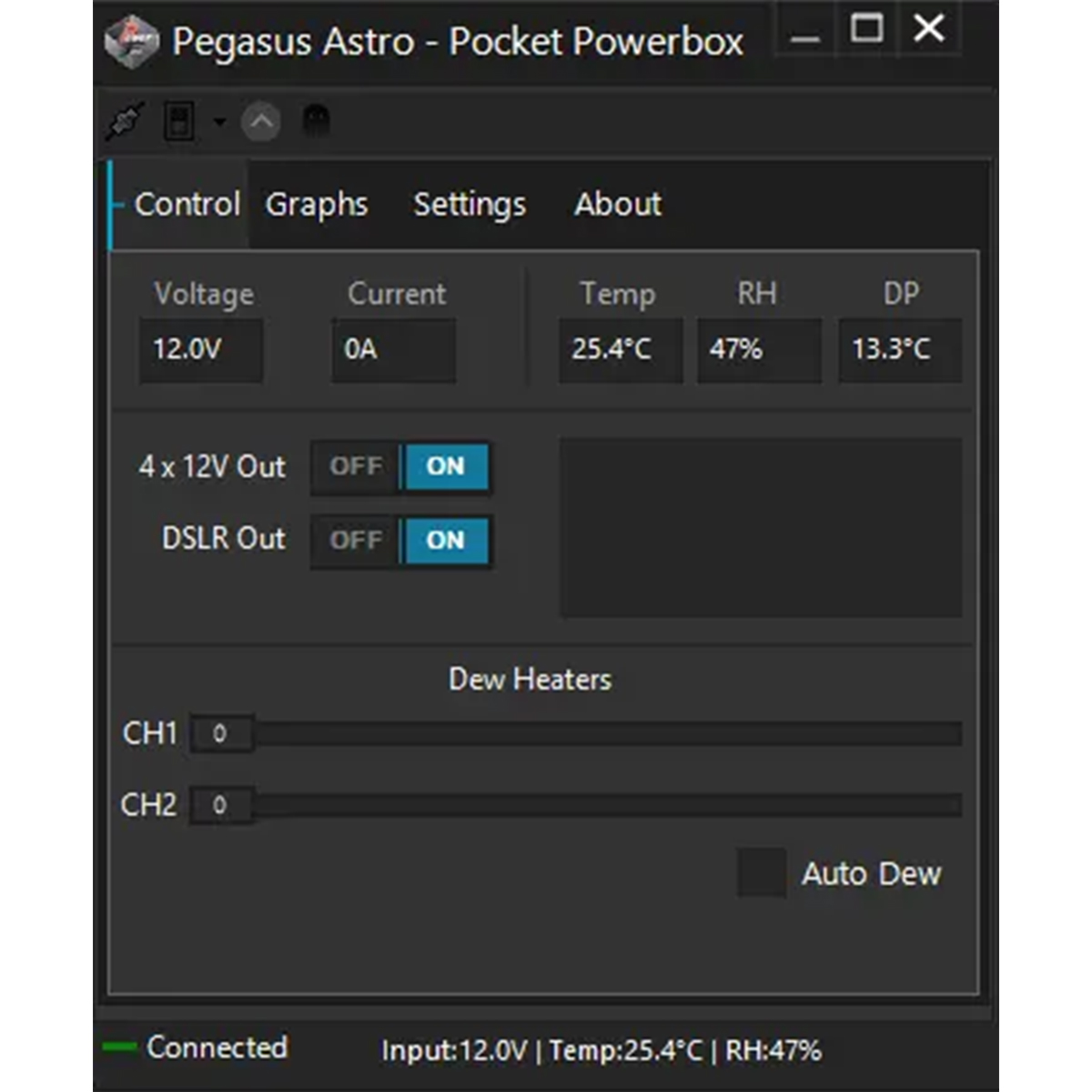

ASCOM 6 Fully Supported
Pocket powerbox fully supports ASCOM6. In combination with our main program which acts as a server you can use our latest ASCOM 6.3 supplied drivers to:
- Pass environmental settings to supported software (e.g Sequence Generator Pro / MaximDL ) (ASCOM ObservingConditions)
- Switch ON or OFF all 12V outputs. (ASCOM Switches)
INDI Fully Supported
Pocket powerbox fully supports INDI, Bundle it with Stellarmate or any other device that can use INDILib.

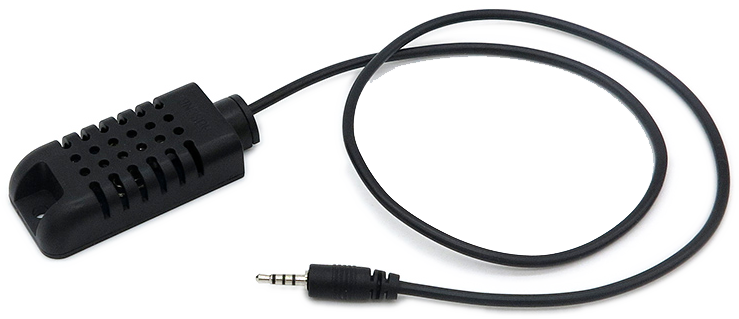

External Environmental Sensor
External one (1) meter temperature & relative humidity sensor is included in the package. Know exactly the environment conditions of your location. Temperature, humidity and dew point measurements are displayed in the software.

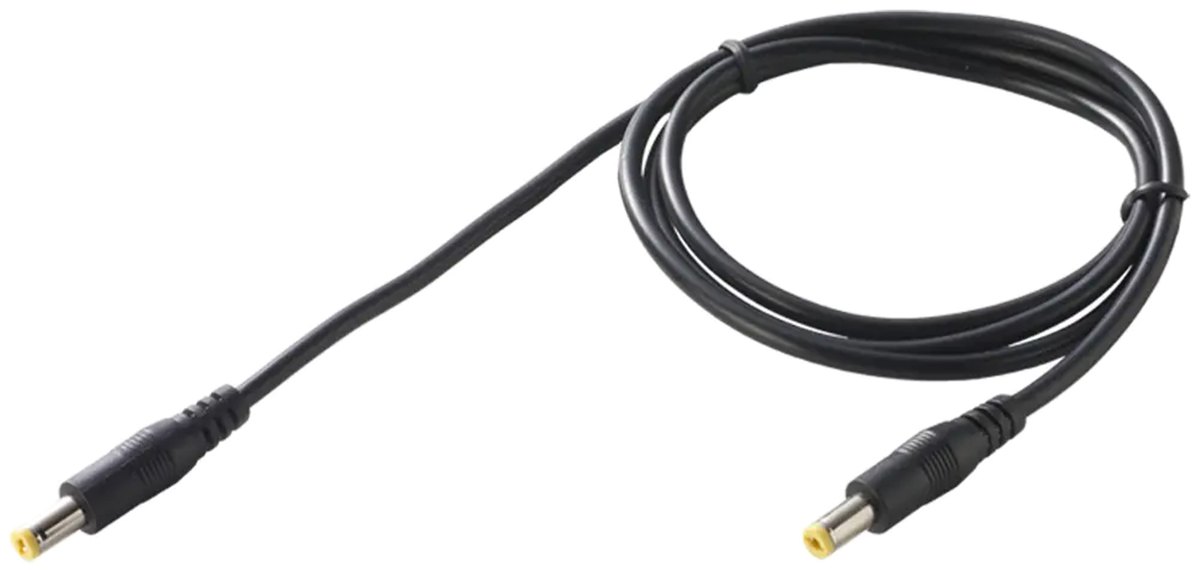

Power Cables are included in the package
Four power cable of DC 2.1mm to 2.1mm male (1m) are included in the package.

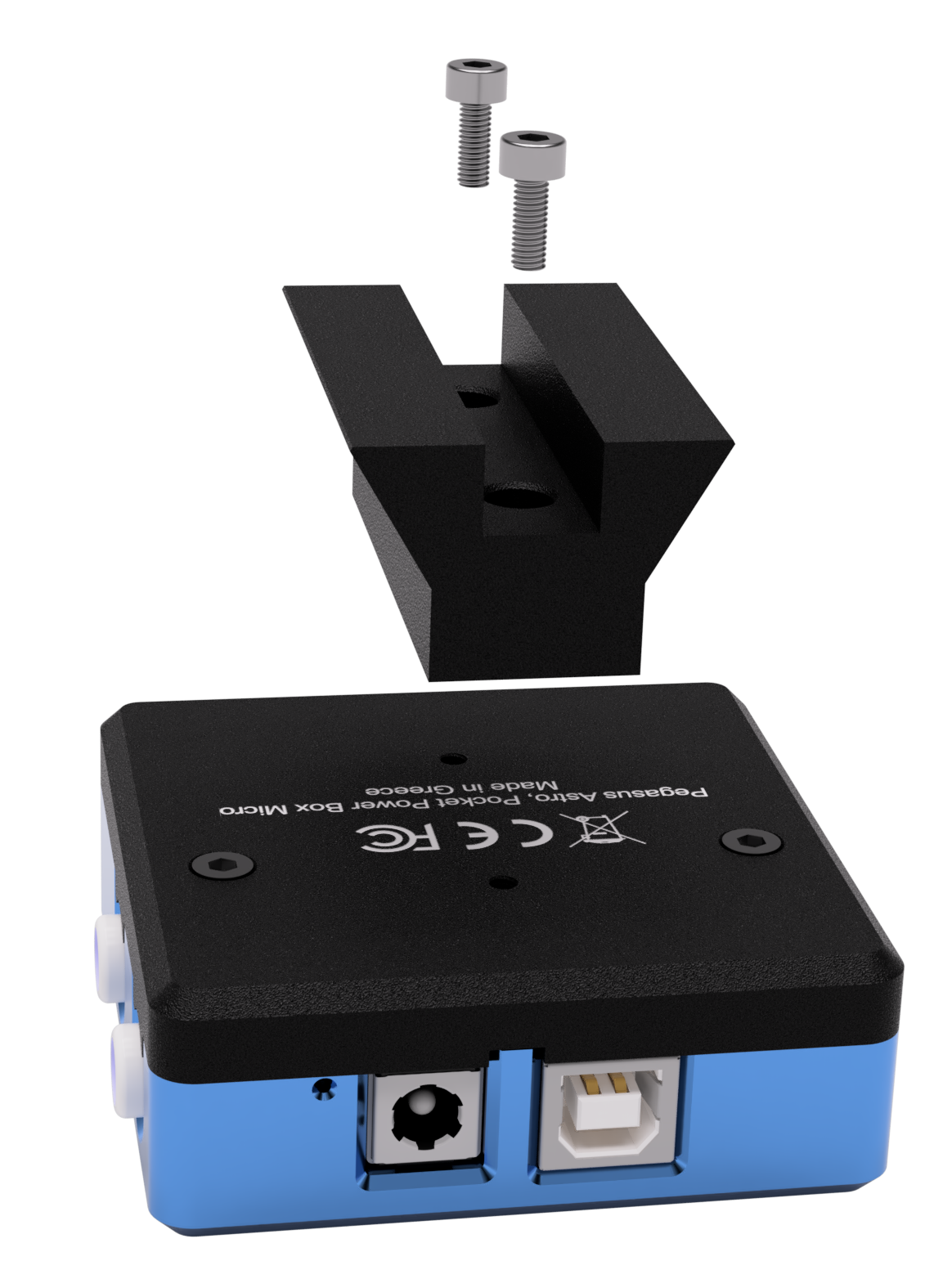

Shoe Attachment
The optional PEG-SHOE attachment allows you to secure the PPB Micro onto your telescope rig.
More Key Features
- Standalone Operation “Out of the Box”
- Pocket Powerbox Micro can work “out of the box” as a standalone device. Just plug the cables, setup the “autodew” functionality and every time you boot the device, it will retrieve your settings. So, If you don’t like to connect to a PC every time, you don’t have to. Simple as that!
- Two Channel Duty Cycle PWM Outputs
- Two Pulse width modulation (PWM) outlets are capable to provide power to your “thirsty” Dew Heaters. No more moisture fuzzing your equipment and destroying your clear nights. These outlets can be remote-controlled from your laptop using the supplied software.
- Auto Adjustment of PWM (Dew Outputs)
- The controller can auto adjust the heater power levels by consulting the environmental sensor Dew Point reading. Just click “Auto” and leave to Pocket Powerbox Micro to decide if it is time to turn on and precise tune the level of your dew heaters.
- More than 10A of Total Power
- The powerbox has been designed to support up to 10 Amps of total current.
- LED Indications for Power and Failure States
- Led can blink in patterns to warn you about important power issues (e.g over or under voltage). Also, light can be turned off by using the software. Our LED is very dim but in case you don’t like it on you can switch it off
- Reverse Polarity Protection
- Pocket Powerbox Micro has been design with a reverse voltage polarity protection. It will definitely save your night if you accidentally connect the main power supply in reverse polarity!
- Hardware Watchdog
- A hardware watchdog resets the device if for any reason there is no response from the controller for two seconds. A neat feature in the unlikely event of a controller freeze – when you have a remote observatory and you need to be certain that everything works as expected.
- Upgradable Firmware
- Device is firmware upgradable to support future features and bug fixes.
Specifications
- Supply Voltage: 12V – 13.8V DC (Reverse Polarity Protected)
- Power Input Connector: DC 2.1mm (up to 10Amps)
- Connectivity: USB2 – Type B USB Connector
- 4 x 12 Outputs
- Maximum Current: 10 Amps in total.
- 2.1mm Center Positive
- Software: ON/OFF all ports
- 2 Channel x 12 PWM Outputs
- Maximum Current: 5A Each, Black Colored RCA Connector, Pulse Width Modulated (Suitable for Dew Heaters or Flatbox)
- Software: Duty Cycle % / OFF
- 1x Sensor Input
- RJ12 Socket, Connectivity with Environmental Sensor
- 0-100% humidity readings with 2-5% accuracy
- -40 to 80°C temperature readings ±0.5°C accuracy
- Camera / DSLR Output:
- Max 3 Amps, 3,5,8,9,12 Volt. 2.1mm Center Positive
- Voltmeter Measures: 5 – 15V
- Dimensions: 66mm x 66mm x 24mm
- Weight: 115 grams
Other Information
- Country of Manufacture: Greece
Pocket Powerbox Micro
This small-sized device (in short PPB Micro) is suitable for the “grab and go” astrophotographer. It can provide up to 10 Amps of power and has a sufficient number (4) of 12V Outputs, Two Dew Heater Channels, an adjustable voltage power output, and an environmental sensor to monitor humidity/temperature (dew point).
- Pocket Powerbox Micro is the successor of the Pocket Powerbox
PPB Micro Features
- 4 x 12V DC Power outlets for your equipment
(ON/OFF via software) - 10 Amps of total power
- A Voltage-Adjustable Output
(Can be switched ON/OFF – 3V, 5V, 8V, 9V, 12V) - 2 x Channel PWM Dew Heaters – RCA Outputs
(Adjust levels via software) - Humidity and Temperature Sensor (included)
Auto Tune Dew Heaters (Auto-Dew)
Reverse Polarity Protection, Overvoltage Protection - USB / PC Controlled or Standalone Operation out of the box
Lightweight and extremely compact CNC aluminum enclosure
PowerBox Micro Features
4x 12V DC Power outlets
A powerful mosfet transistor provides “electric juice” to your precious equipment. It supply of electricity 4 outputs. Can switch ON/OFF all four ports (* together – single channel).
Built in Voltmeter
A precise voltmeter measures and displays in real time your input voltage. If the input is more than 14.5V, the power is instantly cut off to protect your equipment from overvoltage.
Adjustable Regulated Output
An adjustable output is suitable to provide power to your DSLR / Mirrorless camera / or your RPI3/4. You can tune the voltage to different levels (3, 5, 7, 8, 9, 12 Volts).
Expansion Port (EXT)
EXT (expansion) port is available for device expansion. This RJ12 socket allows the connectivity of current and future Pegasus Astro products. Plugged devices can be controlled from Pocket Powerbox Unity Platform or a dedicated ASCOM driver.
The device supports the eXternal Motor Controller
Built in Amp-meter
An Amp-meter which is installed right after the DC input, reports the total electric current.
Moreover, there are three additional amp-meters: One for the 12V quad outputs and two for the Dew Heater Channels. This allows you to easily monitor the detailed and overall power consumption of your equipment.
ASCOM 6 Fully Supported
Pocket powerbox fully supports ASCOM6. In combination with our main program which acts as a server you can use our latest ASCOM 6.3 supplied drivers to:
- Pass environmental settings to supported software (e.g Sequence Generator Pro / MaximDL ) (ASCOM ObservingConditions)
- Switch ON or OFF all 12V outputs. (ASCOM Switches)
INDI Fully Supported
Pocket powerbox fully supports INDI, Bundle it with Stellarmate or any other device that can use INDILib.
External Environmental Sensor
External one (1) meter temperature & relative humidity sensor is included in the package. Know exactly the environment conditions of your location. Temperature, humidity and dew point measurements are displayed in the software.
Power Cables are included in the package
Four power cable of DC 2.1mm to 2.1mm male (1m) are included in the package.
Shoe Attachment
The optional PEG-SHOE attachment allows you to secure the PPB Micro onto your telescope rig.
More Key Features
- Standalone Operation “Out of the Box”
- Pocket Powerbox Micro can work “out of the box” as a standalone device. Just plug the cables, setup the “autodew” functionality and every time you boot the device, it will retrieve your settings. So, If you don’t like to connect to a PC every time, you don’t have to. Simple as that!
- Two Channel Duty Cycle PWM Outputs
- Two Pulse width modulation (PWM) outlets are capable to provide power to your “thirsty” Dew Heaters. No more moisture fuzzing your equipment and destroying your clear nights. These outlets can be remote-controlled from your laptop using the supplied software.
- Auto Adjustment of PWM (Dew Outputs)
- The controller can auto adjust the heater power levels by consulting the environmental sensor Dew Point reading. Just click “Auto” and leave to Pocket Powerbox Micro to decide if it is time to turn on and precise tune the level of your dew heaters.
- More than 10A of Total Power
- The powerbox has been designed to support up to 10 Amps of total current.
- LED Indications for Power and Failure States
- Led can blink in patterns to warn you about important power issues (e.g over or under voltage). Also, light can be turned off by using the software. Our LED is very dim but in case you don’t like it on you can switch it off
- Reverse Polarity Protection
- Pocket Powerbox Micro has been design with a reverse voltage polarity protection. It will definitely save your night if you accidentally connect the main power supply in reverse polarity!
- Hardware Watchdog
- A hardware watchdog resets the device if for any reason there is no response from the controller for two seconds. A neat feature in the unlikely event of a controller freeze – when you have a remote observatory and you need to be certain that everything works as expected.
- Upgradable Firmware
- Device is firmware upgradable to support future features and bug fixes.
Specifications
- Supply Voltage: 12V – 13.8V DC (Reverse Polarity Protected)
- Power Input Connector: DC 2.1mm (up to 10Amps)
- Connectivity: USB2 – Type B USB Connector
- 4 x 12 Outputs
- Maximum Current: 10 Amps in total.
- 2.1mm Center Positive
- Software: ON/OFF all ports
- 2 Channel x 12 PWM Outputs
- Maximum Current: 5A Each, Black Colored RCA Connector, Pulse Width Modulated (Suitable for Dew Heaters or Flatbox)
- Software: Duty Cycle % / OFF
- 1x Sensor Input
- RJ12 Socket, Connectivity with Environmental Sensor
- 0-100% humidity readings with 2-5% accuracy
- -40 to 80°C temperature readings ±0.5°C accuracy
- Camera / DSLR Output:
- Max 3 Amps, 3,5,8,9,12 Volt. 2.1mm Center Positive
- Voltmeter Measures: 5 – 15V
- Dimensions: 66mm x 66mm x 24mm
- Weight: 115 grams

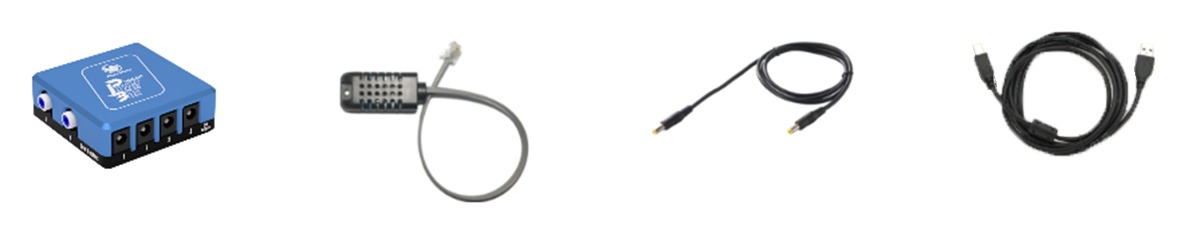

- 1x Pocket Powerbox Micro Controller
- 1x External Temperature / Humidity Sensor
- 4x Power DC 2.1 to 2.1 male cable (1m)
- 1x USB Cable Type B (1.8m)
