Pegasus Astro Motor Focus Kit v2 - For Celestron 11" or 14" SCTs
This item is discontinued by the manufacturer and is no longer available.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Please Note: You will need a stepper controller to drive this motor. The controller is not included and is available separately.
Focus accurate and fast your Celestron SCT telescope using our powerful motor focus kit SCT. This high resolution geared box has a 0,06 degree step size can can easily lift more than 6 Kg (per cm). Its high torque is suitable for lifting heavy imaging equipment. Moreover motor’s gearbox has a low backlash which can easily tuned using backlash compensation in imaging software. An RJ45 socket pinout can be easily converted to a compatible pinout with Moonlite and Robofocus controllers.
Pulley and Belt design allows the motor to stay away from your filter wheel (and not collide with it) when you use a focal reducer. Its sophisticated bracket design can fit to all Celestron SCTs
A special shaped blue anodized aluminum bracket, hard to bend, can be attached to all Celestron SCT telescopes. It has been successfully installed it on:
- Celestron EdgeHD 8, 9.25 , 11, 14
- Celestron SCT C6, C8, C925, C11, C14
- Celestron RASA

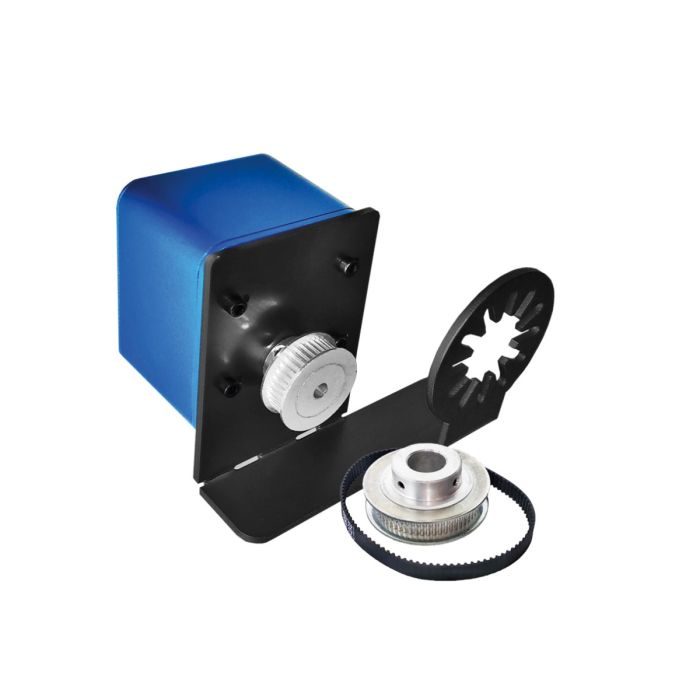

What the Motor Focus Kit SCT Package (Large) Includes:
- High resolution geared stepper motor (Step Angle 7.5, Deg 120, Gear Ration 1:120). Its gearbox has very low backlash and high torque suitable to focus in micron scale.
- Blue Aluminium Anodised Bracket for Celestron SCT Telescopes
- 20cm 2GT Timing Belt
- 13 mm Pulley 2GT (6”,8”,9.25”) or 22mm Pulley 2GT (11” ,14” Celestron)
- Bolts
Specifications
- Step Angle (Deg): 7.5 / 120 = 0.0625
- Gear Ratio: 1:120
- Phases: 4 (Unipolar Motor)
- Voltage: 12V DC
- Current (A): 0.27
- Pull-in Rate (PPS): 400
- Pull-in Torque (N.cm): 60 (100pps)
- Weight: Stepper Motor, SCT Adapter & Motor Pulley / Belt weight in total 300g
Other Information
- Country of Manufacture: Greece
Please Note: You will need a stepper controller to drive this motor. The controller is not included and is available separately.
Focus accurate and fast your Celestron SCT telescope using our powerful motor focus kit SCT. This high resolution geared box has a 0,06 degree step size can can easily lift more than 6 Kg (per cm). Its high torque is suitable for lifting heavy imaging equipment. Moreover motor’s gearbox has a low backlash which can easily tuned using backlash compensation in imaging software. An RJ45 socket pinout can be easily converted to a compatible pinout with Moonlite and Robofocus controllers.
Pulley and Belt design allows the motor to stay away from your filter wheel (and not collide with it) when you use a focal reducer. Its sophisticated bracket design can fit to all Celestron SCTs
A special shaped blue anodized aluminum bracket, hard to bend, can be attached to all Celestron SCT telescopes. It has been successfully installed it on:
- Celestron EdgeHD 8, 9.25 , 11, 14
- Celestron SCT C6, C8, C925, C11, C14
- Celestron RASA
What the Motor Focus Kit SCT Package (Large) Includes:
- High resolution geared stepper motor (Step Angle 7.5, Deg 120, Gear Ration 1:120). Its gearbox has very low backlash and high torque suitable to focus in micron scale.
- Blue Aluminium Anodised Bracket for Celestron SCT Telescopes
- 20cm 2GT Timing Belt
- 13 mm Pulley 2GT (6”,8”,9.25”) or 22mm Pulley 2GT (11” ,14” Celestron)
- Bolts
Specifications
- Step Angle (Deg): 7.5 / 120 = 0.0625
- Gear Ratio: 1:120
- Phases: 4 (Unipolar Motor)
- Voltage: 12V DC
- Current (A): 0.27
- Pull-in Rate (PPS): 400
- Pull-in Torque (N.cm): 60 (100pps)
- Weight: Stepper Motor, SCT Adapter & Motor Pulley / Belt weight in total 300g
Please Note: You will need a stepper controller to drive this motor. The controller is not included and is available separately.
Focus accurate and fast your Celestron SCT telescope using our powerful motor focus kit SCT. This high resolution geared box has a 0,06 degree step size can can easily lift more than 6 Kg (per cm). Its high torque is suitable for lifting heavy imaging equipment. Moreover motor’s gearbox has a low backlash which can easily tuned using backlash compensation in imaging software. An RJ45 socket pinout can be easily converted to a compatible pinout with Moonlite and Robofocus controllers.
Pulley and Belt design allows the motor to stay away from your filter wheel (and not collide with it) when you use a focal reducer. Its sophisticated bracket design can fit to all Celestron SCTs
A special shaped blue anodized aluminum bracket, hard to bend, can be attached to all Celestron SCT telescopes. It has been successfully installed it on:
- Celestron EdgeHD 8, 9.25 , 11, 14
- Celestron SCT C6, C8, C925, C11, C14
- Celestron RASA
What the Motor Focus Kit SCT Package (Large) Includes:
- High resolution geared stepper motor (Step Angle 7.5, Deg 120, Gear Ration 1:120). Its gearbox has very low backlash and high torque suitable to focus in micron scale.
- Blue Aluminium Anodised Bracket for Celestron SCT Telescopes
- 20cm 2GT Timing Belt
- 13 mm Pulley 2GT (6”,8”,9.25”) or 22mm Pulley 2GT (11” ,14” Celestron)
- Bolts
Specifications
- Step Angle (Deg): 7.5 / 120 = 0.0625
- Gear Ratio: 1:120
- Phases: 4 (Unipolar Motor)
- Voltage: 12V DC
- Current (A): 0.27
- Pull-in Rate (PPS): 400
- Pull-in Torque (N.cm): 60 (100pps)
- Weight: Stepper Motor, SCT Adapter & Motor Pulley / Belt weight in total 300g
Other Information
- Country of Manufacture: Greece
