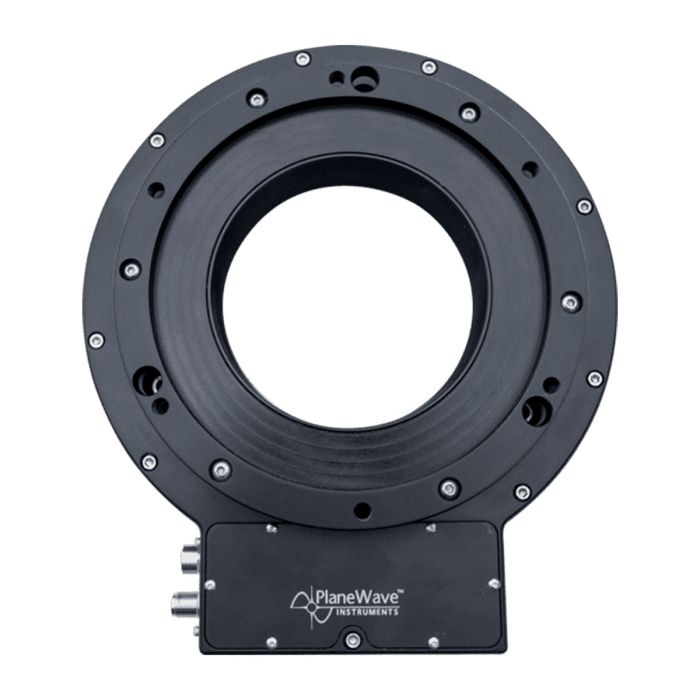

PlaneWave Series-5XL Focuser
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- Large 6.25" clear aperture accommodates large-format imaging sensors and complex imaging trains while minimizing vignetting.
- High-capacity design supports up to 40 lb (18 kg) of equipment with 16.51 mm of precision focus travel.
- Ultra-thin 1.675" profile preserves valuable backfocus and can be stacked with the Series-5 Rotator for a complete focusing and derotation solution.
PlaneWave Series-5XL Focuser
The Series-5XL Focuser has a clear aperture of 6.25" (158.75 mm) and is only 1.675" (42.545 mm) thick and is stackable with the Series 5- Rotator. The Series-5XL focuser is capable of lifting 40 lbs (18 kg) with a travel range of 16.51 mm (16.5100 microns). When the Series-5XL Focuser and the Series-5 Rotator are used in conjunction an Extension Spacer is required.
Specification:
- Backfocus occupied: 1.675” (42.545 mm)
- Focuser travel range: 0.6” (15200 µm)
- Speed: up to 15 degrees/second
- Clear aperture: 6.25” (158.75 mm)
- Weight capacity: 40 lbs (18kg)
- Weight: 6 lbs (2.72 kg)
- Electrical Connection:
- PWBUS OUT: 5 pin M12 axial cable connection that is used as a pass-through connection
when daisy-chaining with a Series 5 Rotator - PWBUS IN: 5 pin M12 axial cable connection that is used to directly communicate to a
Series 5 Controller.
- PWBUS OUT: 5 pin M12 axial cable connection that is used as a pass-through connection
Other Information
- Country of Manufacture: United States
PlaneWave Series-5XL Focuser
The Series-5XL Focuser has a clear aperture of 6.25" (158.75 mm) and is only 1.675" (42.545 mm) thick and is stackable with the Series 5- Rotator. The Series-5XL focuser is capable of lifting 40 lbs (18 kg) with a travel range of 16.51 mm (16.5100 microns). When the Series-5XL Focuser and the Series-5 Rotator are used in conjunction an Extension Spacer is required.
Specification:
- Backfocus occupied: 1.675” (42.545 mm)
- Focuser travel range: 0.6” (15200 µm)
- Speed: up to 15 degrees/second
- Clear aperture: 6.25” (158.75 mm)
- Weight capacity: 40 lbs (18kg)
- Weight: 6 lbs (2.72 kg)
- Electrical Connection:
- PWBUS OUT: 5 pin M12 axial cable connection that is used as a pass-through connection
when daisy-chaining with a Series 5 Rotator - PWBUS IN: 5 pin M12 axial cable connection that is used to directly communicate to a
Series 5 Controller.
- PWBUS OUT: 5 pin M12 axial cable connection that is used as a pass-through connection
- 1X Series 5 XL Focuser
- 1X 5 Pin M12 Axial Cable 1
- 3X 5/16-18 x 3/4 SHCS 3
- Large 6.25" clear aperture accommodates large-format imaging sensors and complex imaging trains while minimizing vignetting.
- High-capacity design supports up to 40 lb (18 kg) of equipment with 16.51 mm of precision focus travel.
- Ultra-thin 1.675" profile preserves valuable backfocus and can be stacked with the Series-5 Rotator for a complete focusing and derotation solution.
PlaneWave Series-5XL Focuser
The Series-5XL Focuser has a clear aperture of 6.25" (158.75 mm) and is only 1.675" (42.545 mm) thick and is stackable with the Series 5- Rotator. The Series-5XL focuser is capable of lifting 40 lbs (18 kg) with a travel range of 16.51 mm (16.5100 microns). When the Series-5XL Focuser and the Series-5 Rotator are used in conjunction an Extension Spacer is required.
Specification:
- Backfocus occupied: 1.675” (42.545 mm)
- Focuser travel range: 0.6” (15200 µm)
- Speed: up to 15 degrees/second
- Clear aperture: 6.25” (158.75 mm)
- Weight capacity: 40 lbs (18kg)
- Weight: 6 lbs (2.72 kg)
- Electrical Connection:
- PWBUS OUT: 5 pin M12 axial cable connection that is used as a pass-through connection
when daisy-chaining with a Series 5 Rotator - PWBUS IN: 5 pin M12 axial cable connection that is used to directly communicate to a
Series 5 Controller.
- PWBUS OUT: 5 pin M12 axial cable connection that is used as a pass-through connection
Other Information
- Country of Manufacture: United States
- 1X Series 5 XL Focuser
- 1X 5 Pin M12 Axial Cable 1
- 3X 5/16-18 x 3/4 SHCS 3
