PrimaLuceLab Vixen Dovetail Plate PLUS: 140mm (5.5") Length
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
Note: Current stock does not have (3) 1/4"-20 threaded holes along the center line. They are now M6x1.0 but will be reverted back to 1/4"-20 in future production runs.

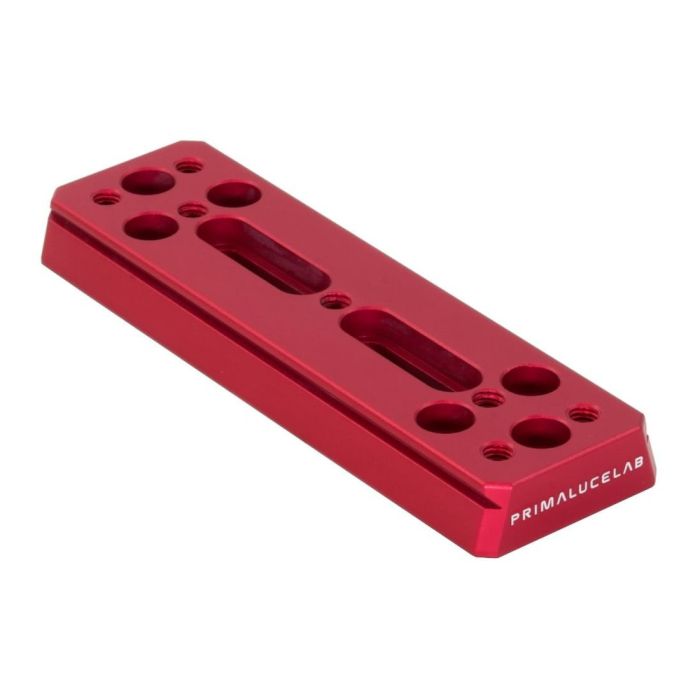

The Vixen style dovetail plate 140mm PLUS is designed to let you install telescopes or cameras on mounts with Vixen type clamp or photographic heads with Arca Swiss type clamp. This Vixen plate is 140mm long and, not only it comes with central threaded holed and slots, but also threaded holes to connect to other PLUS mechanical components such as support rings, guide rings, dovetail clamps or EAGLE computers always with more crews, in order to avoid any flexure! Like all the elements of the PLUS system, this plate is made with high precision mechanics, it's built with CNC machines from aluminum block) and anodized to increase the hardness of the material and protect it from oxidation. Weight: 0.2 kg.
The Vixen style dovetail plate 140mm PLUS is part of PrimaLuceLab's PLUS system (Prima Luce Universal System) that includes a large variety of other plates, support rings, guide rings and dovetail clamps to offer you the maximum freedom to build your mechanical support system, depending on the application you want to accomplish. Indeed, all the PLUS elements have threaded holes, holes and slots suitable for connecting elements, always with maximum rigidity and comfort. For this application, PrimaLuceLab designed many elements, including the Vixen style dovetail plate 140mm PLUS. Each component of the PLUS system is made of aluminum blocks that are high precision CNC machined. The aluminum is then sandblasted to achieve a very smooth surface finish and is anodized (hard anodizing) to increase the hardness of the material and protect it from oxidation.
Thanks to the particular design, the Vixen style dovetail plate 140mm PLUS can be:
- positioned below the support rings to install the telescope on mounts with Vixen type plate
- installed below a camera to connect it to a mount with Vixen dovetail clamp
- installed below a telescope or a camera to connect it to a photographic head with Arca Swiss dovetail clamp
- installed above the support rings to increase the mechanical rigidity of the entire telescope (and allow you to attach other accessories such as guide rings to precisely adjust the position of the guide telescope).
- used as a basis to create a side-by-side plate (which allows you to install two telescopes in parallel on a mount with a single Vixen plate) together with 2 dovetail clamps PLUS.
In the image above to the left, Vixen 140mm PLUS dovetail bar installed under the telescope allow the installation on a mount with Vixen type dovetail clamp. To the right, the same bar allows the installation of the same telescope on a photographic heat with Arca Swiss type clamp.

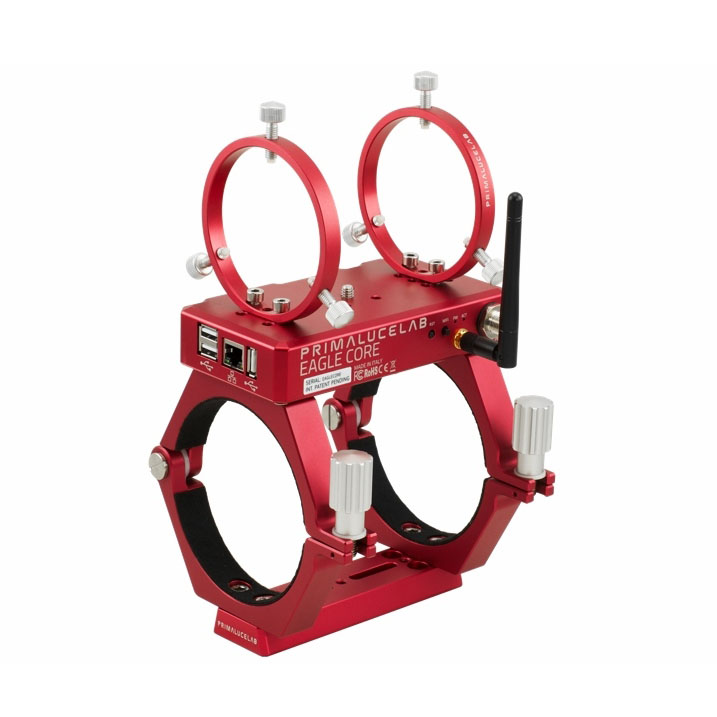

In the picture above, the Vixen style dovetail plate 140mm PLUS is installed below 105mm PLUS support rings. Above the support rings the EAGLE CORE is installed with 80mm PLUS guide rings. If you have other brands mechanical accessories, you can still use all the elements of the PLUS system. Indeed PrimaLuceLab has provided a series of central slots that allow, for example, to fix on this plate support or guide rings through a screw.
Other Information
- Country of Manufacture: China
The Vixen style dovetail plate 140mm PLUS is part of PrimaLuceLab's PLUS system (Prima Luce Universal System) that includes a large variety of other plates, support rings, guide rings and dovetail clamps to offer you the maximum freedom to build your mechanical support system, depending on the application you want to accomplish. Indeed, all the PLUS elements have threaded holes, holes and slots suitable for connecting elements, always with maximum rigidity and comfort. For this application, PrimaLuceLab designed many elements, including the Vixen style dovetail plate 140mm PLUS. Each component of the PLUS system is made of aluminum blocks that are high precision CNC machined. The aluminum is then sandblasted to achieve a very smooth surface finish and is anodized (hard anodizing) to increase the hardness of the material and protect it from oxidation.
Thanks to the particular design, the Vixen style dovetail plate 140mm PLUS can be:
- positioned below the support rings to install the telescope on mounts with Vixen type plate
- installed below a camera to connect it to a mount with Vixen dovetail clamp
- installed below a telescope or a camera to connect it to a photographic head with Arca Swiss dovetail clamp
- installed above the support rings to increase the mechanical rigidity of the entire telescope (and allow you to attach other accessories such as guide rings to precisely adjust the position of the guide telescope).
- used as a basis to create a side-by-side plate (which allows you to install two telescopes in parallel on a mount with a single Vixen plate) together with 2 dovetail clamps PLUS.
In the image above to the left, Vixen 140mm PLUS dovetail bar installed under the telescope allow the installation on a mount with Vixen type dovetail clamp. To the right, the same bar allows the installation of the same telescope on a photographic heat with Arca Swiss type clamp.
In the picture above, the Vixen style dovetail plate 140mm PLUS is installed below 105mm PLUS support rings. Above the support rings the EAGLE CORE is installed with 80mm PLUS guide rings. If you have other brands mechanical accessories, you can still use all the elements of the PLUS system. Indeed PrimaLuceLab has provided a series of central slots that allow, for example, to fix on this plate support or guide rings through a screw.
Note: Current stock does not have (3) 1/4"-20 threaded holes along the center line. They are now M6x1.0 but will be reverted back to 1/4"-20 in future production runs.
The Vixen style dovetail plate 140mm PLUS is designed to let you install telescopes or cameras on mounts with Vixen type clamp or photographic heads with Arca Swiss type clamp. This Vixen plate is 140mm long and, not only it comes with central threaded holed and slots, but also threaded holes to connect to other PLUS mechanical components such as support rings, guide rings, dovetail clamps or EAGLE computers always with more crews, in order to avoid any flexure! Like all the elements of the PLUS system, this plate is made with high precision mechanics, it's built with CNC machines from aluminum block) and anodized to increase the hardness of the material and protect it from oxidation. Weight: 0.2 kg.
The Vixen style dovetail plate 140mm PLUS is part of PrimaLuceLab's PLUS system (Prima Luce Universal System) that includes a large variety of other plates, support rings, guide rings and dovetail clamps to offer you the maximum freedom to build your mechanical support system, depending on the application you want to accomplish. Indeed, all the PLUS elements have threaded holes, holes and slots suitable for connecting elements, always with maximum rigidity and comfort. For this application, PrimaLuceLab designed many elements, including the Vixen style dovetail plate 140mm PLUS. Each component of the PLUS system is made of aluminum blocks that are high precision CNC machined. The aluminum is then sandblasted to achieve a very smooth surface finish and is anodized (hard anodizing) to increase the hardness of the material and protect it from oxidation.
Thanks to the particular design, the Vixen style dovetail plate 140mm PLUS can be:
- positioned below the support rings to install the telescope on mounts with Vixen type plate
- installed below a camera to connect it to a mount with Vixen dovetail clamp
- installed below a telescope or a camera to connect it to a photographic head with Arca Swiss dovetail clamp
- installed above the support rings to increase the mechanical rigidity of the entire telescope (and allow you to attach other accessories such as guide rings to precisely adjust the position of the guide telescope).
- used as a basis to create a side-by-side plate (which allows you to install two telescopes in parallel on a mount with a single Vixen plate) together with 2 dovetail clamps PLUS.
In the image above to the left, Vixen 140mm PLUS dovetail bar installed under the telescope allow the installation on a mount with Vixen type dovetail clamp. To the right, the same bar allows the installation of the same telescope on a photographic heat with Arca Swiss type clamp.
In the picture above, the Vixen style dovetail plate 140mm PLUS is installed below 105mm PLUS support rings. Above the support rings the EAGLE CORE is installed with 80mm PLUS guide rings. If you have other brands mechanical accessories, you can still use all the elements of the PLUS system. Indeed PrimaLuceLab has provided a series of central slots that allow, for example, to fix on this plate support or guide rings through a screw.
Other Information
- Country of Manufacture: China
