QHY 12 Cooled Color Astronomy Camera with USB 2.0 # QHY12-C

Our Price: $2,699.00
Free shipping for this item in the US Click here for more info

Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.

US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.

International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

Special Order
Our Product ID: PAIC-QH-QHY12-C
Manufacturer SKU: QHY12-C
Item Can Ship: Worldwide

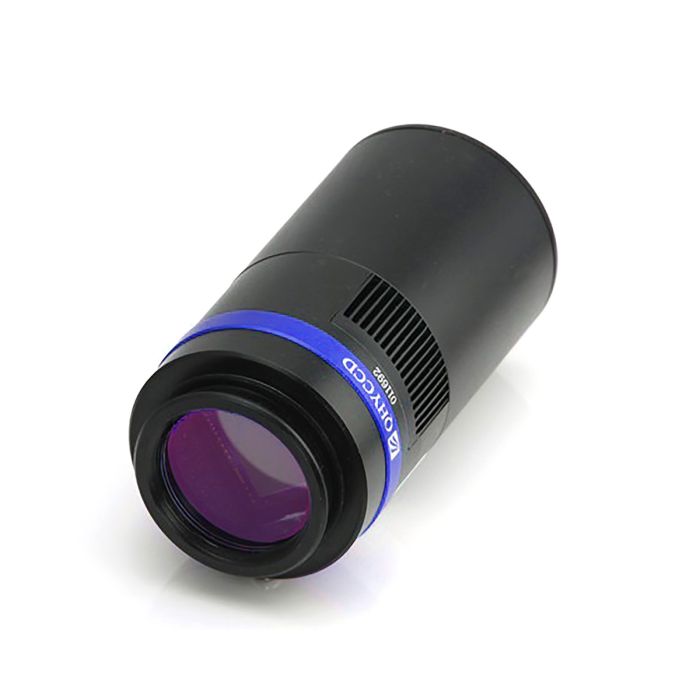

QHY 12 Cooled Color Astronomy Camera with USB 2.0 # QHY12-C

More Views

Quick Overview

  • One-shot color astronomy camera with 14.2 Megapixel APS-C ICX613 Interline Color CCD Sensor
  • Low thermal noise and low read noise clean high-resolution color images
  • Two-stage cooling keeps sensor temperature as much as 40C below ambient to reduce thermal noise further, even in warm conditions
  • Slim body with 63mm diameter and black matte finish ideal for Hyperstar configurations

Product Details

1. Cooled One-Shot Color Astronomy Camera for Deep-Sky Imaging

The QHY12 is a 14.2 Megapixel one-shot color camera with a 14.2 Megapixel APS-C ICX613 Interline Color CCD Sensor. With an array of 4610x3080 pixels 5.1 um square, and combined with QHYCCD cooling technology and SONY SuperHAD technology, the QHY12 gives you a clean and low noise image even in a very long exposure. At a dark site, this camera offers the user a simple and easy way to capture deep sky objects in full color without the need, complexity and cost of RGB filters and filter wheel.  Image processing can likewise be simplified compared to separate processing and combining of LRGB frames.

2. Two-Stage Cooling for Low Noise and Purged Chamber to Keep Sensor Dry

SONY's CCD sensors are famous for their low thermal noise, and the effect of this noise is further reduced in the QHY12 with two-stage TEC cooling and thermal construction design. The QHY12 has the cooling capability of -40C below ambient. This results in the production of very clean images even in exposures of 30 minutes to one hour.

3. Classic Narrow-Profile Design Ideal for Hyperstar Configurations

The QHY12 camera body has a diameter of only 63mm only, making it ideally suited for Hyperstar imaging. The QHY12 comes with a clip for USB and power cables to help keep solid connections and avoid conditions that result in loss of contact.

The outer camera body finish is matte black to avoid reflection when used in Hyperstar configurations.

Manufacturer QHYCCD
  • Model: QHY12
  • Sensor: SONY ICX613 CCD
  • Pixel Size: 5.12um*5.12um
  • Resolution: 4610*3080
  • Effective Pixels: 14.2 Megapixels
  • Effective Image Area: 24mm*16.4mm
  • AD Sample Depth: 16-bit
  • Readout noise: 8-10e- @600kpixel/sec
  • System Gain @ Lowest Gain: 0.5e-/ADU
  • Fullwell: 32ke-
  • Download Speed: 25sec @ low readout speed, 6sec @high readout speed
  • Preview Speed: 2 sec for 4*4 binned image
  • Anti-Blooming: -100dB
  • Sensor Size: APS-C
  • Readout Mode: Two Frame Readout CCD
  • Power Consumption: 13 watts under 50% TEC power. 27 watts at 100% TEC power
  • Cooling System: Dual Stage TEC
  • Max Delta T: -40C below ambient
  • Power Supply: DC201 power adapter, 12V
  • Guide Port: Yes, 6pin RJ11 guide port
  • Camera Interface: M42/0.75 Female thread / 2inch faster installer
  • Color/Monochrome: Color Only
  • Back Focal Length: 20mm(±0.5)
  • Weight: 400g
