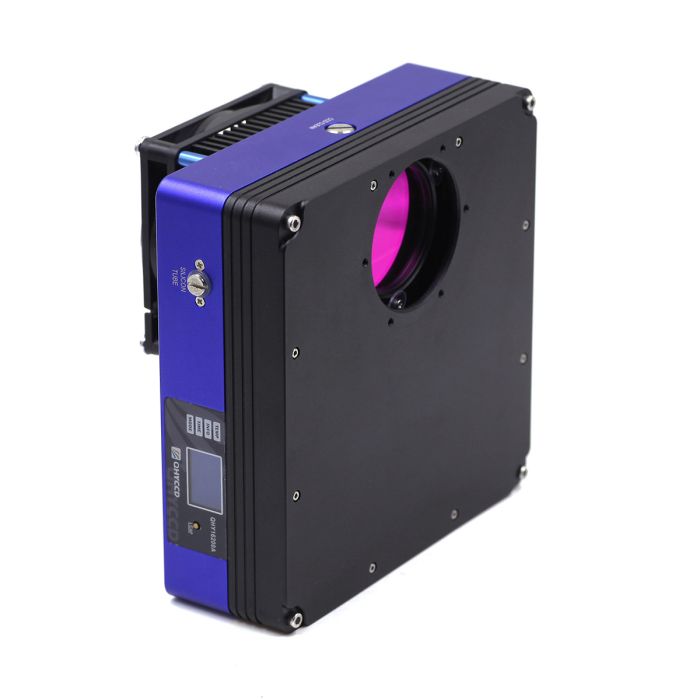

QHY 16200A APS-H Cooled Monochrome CCD Camera with Integrated 5 Position Filter Wheel
This item is discontinued by the manufacturer and is no longer available.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- Monochrome astronomy camera with ONSEMI 16.2 Megapixel KAF-16200 CCD with 50% more area than APS-C sensors
- Integrated “all-in-one” configuration includes motor-driven filter wheel and native off-axis guider support (OAG sold separately)
- USB host interface and 12V output socket to power and control guide cameras, mount, and electronic focuser
- Two-stage cooling reduces chip temperature to 45C below ambient to keep noise low
- Mechanical butterfly shutter for uniform illumination and long life
1. QHY 16.2 Megapixel CCD Monochrome Astronomy Camera
The QHY16200A uses the ONSEMI 16.2MP KAF-16200 CCD. The APS-H format is suitable for most telescopes, including SCT's that cannot fully illuminate a 35mm frame without some vignetting or distortion at the edges. It is also suitable for commonly available 2-inch filters. The larger sensor size provides nearly twice as many pixels as the popular KAF-8300. The QE is similar to or higher than 8300 and the 37ke- full well capacity is almost 50% greater than the 8300's 25.5ke-. yielding a dynamic range about 1.5X greater than the 8300.
The effective image area of the sensor is 27mm x 21.6mm. Compared to the QHY8L APS-C format of 23.4 x 15.8, the APS-H sensor is significantly larger with over 50% more image area. The APS-H size mono sensor fills the gap in size between the KAF8300 (4/3inch) and the KAI-11002 (35mm format).
2. All-in-One Configuration Includes Filter Wheel and OAG Support
The letter "A" is used by QHYCCD to designate a camera that is an integrated (ALL-IN-ONE) camera equipped with the essential integrated features needed for astrophotography. The QHY16200A has a built-in five-position motor-driven filter wheel that holds 36mm round unmounted filters. An entire set of LRGB Ha, OIII, and SII can be loaded at one time, which avoids the trouble of having to disassemble the filter wheel each time you want to change your filter group. The camera also supports integration with a QHYOAG off-axis guider using six M3 screw holes while taking up minimal back focus. (Off-axis guider is sold separately).
3. Integrated Control
The A-series cameras have a USB host interface that can be connected to a guide camera. Two serial ports are available for the equatorial mount and the electric focuser. Control of the camera, mount, guide camera and focuser can be managed through a single USB connection to your computer.
The QHY16200A uses a single 12V power cord that can be secured with a threaded lock nut. It also has a 12V output socket that can power peripherals directly from the camera.
4. Butterfly Shutter for Uniform Illumination and Long Life
The QHY16200A camera uses a mechanical shutter that has the shape of a butterfly. This provides even illumination as the shutter sweeps across the sensor to begin or end an exposure. The shutter is driven directly by the motor and has no other moving parts, making its working life almost unlimited.
5. Two-Stage TEC cooling and External Trigger
Integrated two-Stage cooling reduces the temperature of the CCD chip to 45 degrees C below ambient, resulting in very low thermal noise and a clean, long exposure.
The QHY16200A also has an external trigger in/out port for exposure timing or synchronizing the start of exposure.
6. What's in the Box
- 12V power cable
- 12V car power adapter
- USB cable
- Grounding cable
- T-ring(2 inch to M54/0.75)
- Desiccant Drying Tube
- Desiccant
- USB hub bypass board
- Screw driver for M2 hexagon screw
- Screw driver for M3 hexagon screw
- Screws for fixing filter frame and filter
- Inspection report
- Waterproof plastic box
- Camera
Optional accessories: 12V power adaptor (12V 6A), Trigger cable, RS232 cable (1.5m)
NOTE: If you wish to supply your own 12V power adapter, its output current must be at least 3.5A and the polarity must be center positive.
Useful Resources
Other Information
- Country of Manufacture: China
1. QHY 16.2 Megapixel CCD Monochrome Astronomy Camera
The QHY16200A uses the ONSEMI 16.2MP KAF-16200 CCD. The APS-H format is suitable for most telescopes, including SCT's that cannot fully illuminate a 35mm frame without some vignetting or distortion at the edges. It is also suitable for commonly available 2-inch filters. The larger sensor size provides nearly twice as many pixels as the popular KAF-8300. The QE is similar to or higher than 8300 and the 37ke- full well capacity is almost 50% greater than the 8300's 25.5ke-. yielding a dynamic range about 1.5X greater than the 8300.
The effective image area of the sensor is 27mm x 21.6mm. Compared to the QHY8L APS-C format of 23.4 x 15.8, the APS-H sensor is significantly larger with over 50% more image area. The APS-H size mono sensor fills the gap in size between the KAF8300 (4/3inch) and the KAI-11002 (35mm format).
2. All-in-One Configuration Includes Filter Wheel and OAG Support
The letter "A" is used by QHYCCD to designate a camera that is an integrated (ALL-IN-ONE) camera equipped with the essential integrated features needed for astrophotography. The QHY16200A has a built-in five-position motor-driven filter wheel that holds 36mm round unmounted filters. An entire set of LRGB Ha, OIII, and SII can be loaded at one time, which avoids the trouble of having to disassemble the filter wheel each time you want to change your filter group. The camera also supports integration with a QHYOAG off-axis guider using six M3 screw holes while taking up minimal back focus. (Off-axis guider is sold separately).
3. Integrated Control
The A-series cameras have a USB host interface that can be connected to a guide camera. Two serial ports are available for the equatorial mount and the electric focuser. Control of the camera, mount, guide camera and focuser can be managed through a single USB connection to your computer.
The QHY16200A uses a single 12V power cord that can be secured with a threaded lock nut. It also has a 12V output socket that can power peripherals directly from the camera.
4. Butterfly Shutter for Uniform Illumination and Long Life
The QHY16200A camera uses a mechanical shutter that has the shape of a butterfly. This provides even illumination as the shutter sweeps across the sensor to begin or end an exposure. The shutter is driven directly by the motor and has no other moving parts, making its working life almost unlimited.
5. Two-Stage TEC cooling and External Trigger
Integrated two-Stage cooling reduces the temperature of the CCD chip to 45 degrees C below ambient, resulting in very low thermal noise and a clean, long exposure.
The QHY16200A also has an external trigger in/out port for exposure timing or synchronizing the start of exposure.
6. What's in the Box
- 12V power cable
- 12V car power adapter
- USB cable
- Grounding cable
- T-ring(2 inch to M54/0.75)
- Desiccant Drying Tube
- Desiccant
- USB hub bypass board
- Screw driver for M2 hexagon screw
- Screw driver for M3 hexagon screw
- Screws for fixing filter frame and filter
- Inspection report
- Waterproof plastic box
- Camera
Optional accessories: 12V power adaptor (12V 6A), Trigger cable, RS232 cable (1.5m)
NOTE: If you wish to supply your own 12V power adapter, its output current must be at least 3.5A and the polarity must be center positive.
| Manufacturer | QHYCCD |
|---|
- Model: QHY16200A
- Sensor : KAF-16200 APS-H Full Frame CCD (Default is Grade 2)
- Pixel Size: 6.0um*6.0um
- Resolution: 4540（H）*3630（V）
- Effective Pixels: 16.2 Megapixels
- Effective Image Area: 27.0mm*21.6mm APS-H format
- Readout Type: Progressive Scan
- Readout Noise: Typical 10 e-
- System Gain: 0.7e-/ADU at lowest Gain
- Fullwell: 41ke-
- Anti-Blooming Gate: 2000x Saturation
- Exposure Time Range: 1ms-10000sec
- AD Sample Depth: 16-bit
- Sensor Size: APS-H Format
- Pixel Binning: 1x1, 2x2, 4x4
- Exposure Time: 1ms-10000sec
- Cooling System: Dual Stage TEC Cooler (-40C below Ambient)
- Shutter Type: Even-illumination Butter-Fly Mechanical Shutter
- Color / Monochrom: Monochrome Only
- QHYOAG interface: Six M3 screw thread
- Build-in Filter Wheel: QHY16200A-CFW5: Five Position 2inch/50mm round filter wheel
- : QHY16200A-CFW7: Seven Position 2inch/50mm round filter wheel
- Supported Filters:
- 2-inch mounted filters, 5-positions: Maxium 6mm filter cell thickness (threads of the filter cell not included)
- 2-inch mounted filters, 7-positions: Maxium 9mm filter cell thickness (threads of the filter cell not included)
- 50mm unmounted filters, 5-positions: 1-5mm thickness
- 50mm unmounted filters, 7-positions: 1-8mm thickness
- Moisture Control:
- Connector for removable silica gel tube
- Heated optical window
- Power consumption 23V DC: 0% cooling 8W 50% cooling 16.5W 100% cooling 27W
- Telescope Interface: M54/0.75 Female Thread
- Back Focal Length: 34mm（±0.5）
- QHY16200A Electric Interface:
- USB Slave Port x1
- USB host port x2
- RS232 3pin port x2
- 2.1mm 12V DC port x2
- Weight:
- 1550g (standard CFW5 version), no OAG included
- 2330g (CFW7 version), no OAG included
- Monochrome astronomy camera with ONSEMI 16.2 Megapixel KAF-16200 CCD with 50% more area than APS-C sensors
- Integrated “all-in-one” configuration includes motor-driven filter wheel and native off-axis guider support (OAG sold separately)
- USB host interface and 12V output socket to power and control guide cameras, mount, and electronic focuser
- Two-stage cooling reduces chip temperature to 45C below ambient to keep noise low
- Mechanical butterfly shutter for uniform illumination and long life
1. QHY 16.2 Megapixel CCD Monochrome Astronomy Camera
The QHY16200A uses the ONSEMI 16.2MP KAF-16200 CCD. The APS-H format is suitable for most telescopes, including SCT's that cannot fully illuminate a 35mm frame without some vignetting or distortion at the edges. It is also suitable for commonly available 2-inch filters. The larger sensor size provides nearly twice as many pixels as the popular KAF-8300. The QE is similar to or higher than 8300 and the 37ke- full well capacity is almost 50% greater than the 8300's 25.5ke-. yielding a dynamic range about 1.5X greater than the 8300.
The effective image area of the sensor is 27mm x 21.6mm. Compared to the QHY8L APS-C format of 23.4 x 15.8, the APS-H sensor is significantly larger with over 50% more image area. The APS-H size mono sensor fills the gap in size between the KAF8300 (4/3inch) and the KAI-11002 (35mm format).
2. All-in-One Configuration Includes Filter Wheel and OAG Support
The letter "A" is used by QHYCCD to designate a camera that is an integrated (ALL-IN-ONE) camera equipped with the essential integrated features needed for astrophotography. The QHY16200A has a built-in five-position motor-driven filter wheel that holds 36mm round unmounted filters. An entire set of LRGB Ha, OIII, and SII can be loaded at one time, which avoids the trouble of having to disassemble the filter wheel each time you want to change your filter group. The camera also supports integration with a QHYOAG off-axis guider using six M3 screw holes while taking up minimal back focus. (Off-axis guider is sold separately).
3. Integrated Control
The A-series cameras have a USB host interface that can be connected to a guide camera. Two serial ports are available for the equatorial mount and the electric focuser. Control of the camera, mount, guide camera and focuser can be managed through a single USB connection to your computer.
The QHY16200A uses a single 12V power cord that can be secured with a threaded lock nut. It also has a 12V output socket that can power peripherals directly from the camera.
4. Butterfly Shutter for Uniform Illumination and Long Life
The QHY16200A camera uses a mechanical shutter that has the shape of a butterfly. This provides even illumination as the shutter sweeps across the sensor to begin or end an exposure. The shutter is driven directly by the motor and has no other moving parts, making its working life almost unlimited.
5. Two-Stage TEC cooling and External Trigger
Integrated two-Stage cooling reduces the temperature of the CCD chip to 45 degrees C below ambient, resulting in very low thermal noise and a clean, long exposure.
The QHY16200A also has an external trigger in/out port for exposure timing or synchronizing the start of exposure.
6. What's in the Box
- 12V power cable
- 12V car power adapter
- USB cable
- Grounding cable
- T-ring(2 inch to M54/0.75)
- Desiccant Drying Tube
- Desiccant
- USB hub bypass board
- Screw driver for M2 hexagon screw
- Screw driver for M3 hexagon screw
- Screws for fixing filter frame and filter
- Inspection report
- Waterproof plastic box
- Camera
Optional accessories: 12V power adaptor (12V 6A), Trigger cable, RS232 cable (1.5m)
NOTE: If you wish to supply your own 12V power adapter, its output current must be at least 3.5A and the polarity must be center positive.
Useful Resources
Other Information
- Country of Manufacture: China
