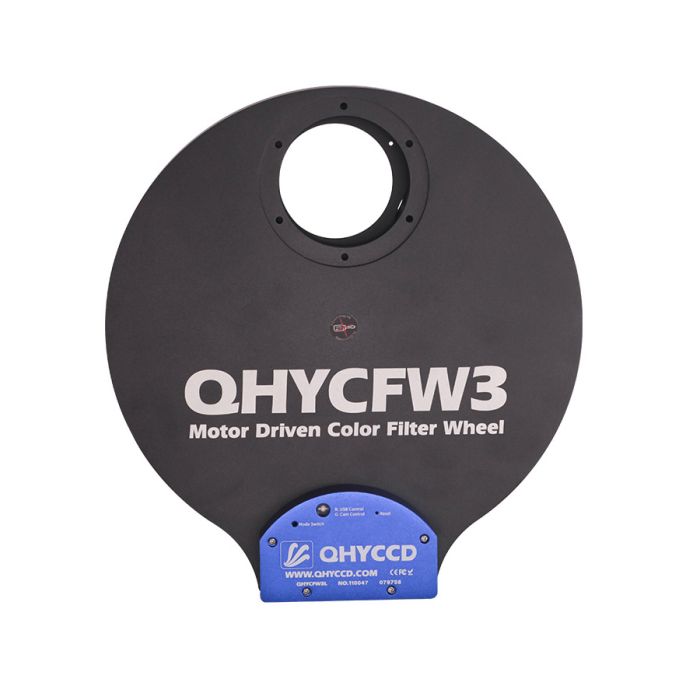

QHY 3rd Generation Electronic Filter Wheel - Large (2" or 50mm Round, 7 Position) # QHYCFW3L-7
Your card isn't charged until your order ships
Your credit card or Paypal account will not be charged when you place your pre/back order. However, your card issuer will place an 'authorization hold' (aka 'pending charge') on your card which reduces your credit limit. For Paypal, funds may be debited from your account based on your funding source. However, we will not charge your card or take the money from Paypal until the order is ready to ship.
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Quick Overview
- Third-generation QHYCCD filter wheel holds up to seven 2” mounted or 50mm unmounted filters
- Ultra-thin hybrid stepper motor for higher precision and smaller step angles with zero backlash
- Easily switches from USB to QHYCFW serial port mode
- Attractive low-profile design in a CNC-machined aluminum body
Product Details
1. Third-Generation QHYCCD Filter Wheels for Astrophotography
The QHYCFW3L is based on QHYCCD’s third-generation filter wheel design and technology.
This low-profile filter wheel incorporates a carousel holding seven 2-inch mounted or 50mm unmounted filters up to 10mm thick (not including the thread height of the filters).
The design of the carousel makes filter positioning quick and precise. Mounted filters less than 10 mm in thickness can be installed, while unmounted filters of different thicknesses can also be mounted to the same filter disc.
2. Super-Thin Enclosed Stepper Motor
QHYCCD selected a high quality ultra-thin hybrid stepper motor for their third-generation filter wheel design. With this stepper motor, the filter wheel supports precise and fully automatic digital control when switching filters, yet it has a total thickness of just 21.5mm.
Compared to permanent magnet (PM) stepper motors used in many filter wheels, the hybrid stepper motor has higher precision and smaller step angle, ideal for demanding astrophotography applications. The motor is enclosed to prevent dust from entering, thus improving reliability and motor life. The filter carousel can also be rotated clockwise or counterclockwise for convenient filter access.
3. Precision Positioning and No Backlash
In this third generation QHYCCD filters wheel, designers incorporated a friction drive with zero backlash that also positions and stops each filter with high precision.
4. Two Control Modes
The QHYCFW3-series filter wheels include a switch to enable a fast change between serial communication mode and USB communication mode through a 4-pin QHYCFW port or a standard USB port.
The filter wheel is USB powered and uses open source Arduino-compatible firmware. It is designed to work with a similar sized QHY Off-Axis Guider (OAG).
5. Modern and Attractive Design
The third-generation QHYCCD filter wheels have exquisite design and appearance. The main body of the QHYCFW3-series is cut from a single piece of aluminum by a precision CNC machine and black anodized, making this a beautiful as well as a highly practical and functional device. Without filters, the QHYCFW3L weighs 911g.
Other Information
- Country of Manufacture: China
