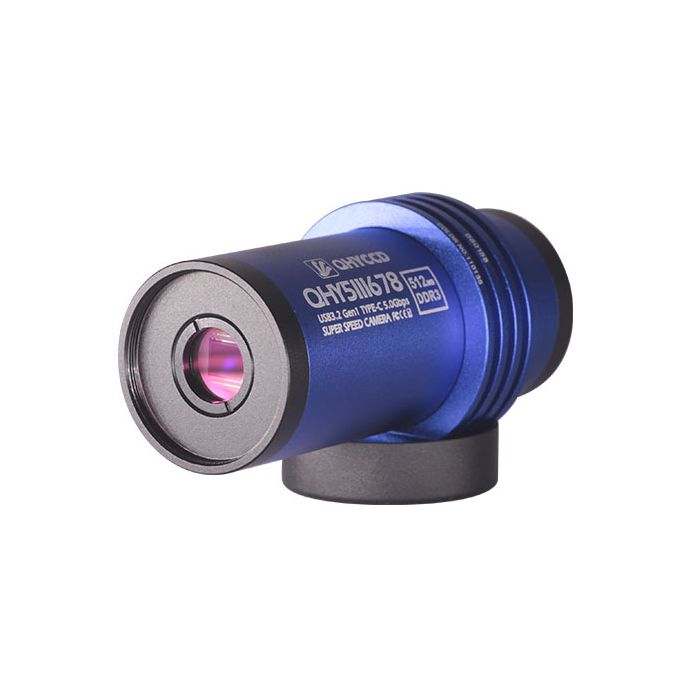

QHY 5-III 678C (Ver. 2) 8.4 MP Color Astronomy Camera with USB 3.2
- This item is currently on backorder from the manufacturer.
- Orders are fulfilled in the order they are received once inventory arrives.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
QHY5III678C is a new planetary and guiding camera of the 2nd generation of QHY5III series, the upgraded version of QHY5III178C, with excellent near-infrared high sensitivity.
Extended Near Infared Sensitivity
In this latest generation of sensors, the photodiode portion of the pixel well is physically deeper than in previous sensors, allowing photons of longer wavelengths to penetrate deeper into the substrate. This dramatically increases the sensor's sensitivity to red and near-infrared (NIR) light. The sensor displays almost equal peak sensitivity to NIR light as it does to light in the visible spectrum.
512MB DDR3
The QHY5III (Ver. 2) series planetary and guiding cameras are all equipped with a 512MB DDR3 image buffer which can effectively reduce the pressure on computer transmission, a great help for planetary photography which often requires writing a large amount of data in a short period of time. Some deep-sky astrophotography cameras on the market today only have 256MB, for example.
In comparison, the 512MB DDR3 memory of the new 5III (Ver. 2) series cameras represents a significant upgrade.
New Front-end Design with Better Compatibility
QHY5III (Ver. 2) series cameras have adopted a new front-end design with better compatibility. All V2 cams in the future share these features.
The BFL of V2 cam is only 8mm, which means you can easily compat a V2 cam with your OAG. The basic top adapter includes 1.25 inch threads and you can still use your 1.25 inch filter.
The top adapter glass of V2 can be easily switched. One of the advantages of changeable top glasses is you can use one filter even you're using a lens! You can add a 1.25inch-cs adapter to connect CS lens, or add a second CS-C lens for C-mount lens. The two adapters are all standard accessories of V2 cams.
USB 3.2 Gen1 Type C Interface
The new QHY5III (Ver.2) series cameras all use the USB3.2 Gen1 Type-C interface. Compared to the USB3.0 Type-B interface used in the previous generation, the Type-C interface has a longer life and is more flexible.
Tips: It is recommended to use the official standard Type-C data cable of QHYCCD. As the market is flooded with a large number of poor-quality Type-C cables, casual use may lead to the camera malfunctioning. If you use your own spare cable, please make sure it is a high-quality cable.
Universal Guiding Interface
The custom interfaces of the previous generation of planetary cameras and guiders has been replaced in the QHY5III (Ver.2) cameras with a more universal ST-4 compatible guiding interface. Now, even if the guiding cable is lost or damaged, you will be able to easily get a replacement on the market at a low cost.
Indicator LED
The new QHY5III (Ver.2) series of cameras is equipped with a status indicator at the back of the camera. If the camera experiences an abnormal status, the multi-colored indicator light will help to determine the situation with different colors signifying different conditions. During normal operation this indicator light is off, so there is no worry about light contaminating the image.
Specifications:
- Model: QHY5III678C
- CMOS Sensor: Sony IMX678
- Pixel Size: 2.0um*2.0um
- Effective Pixel Area: 3856*2180
- Effective Pixels: 8.4 Mega Pixel
- Fullwell: 9ke-
- Readout Noise: 0.57-3.3e-
- AD Sample Depth: 12-bit (output as 16-bit and 8-bit)
- Built-in Image Buffer: 512MB DDR3 Memory
- ROI Frame Rate:
- Full Resolution 43FPS @8BIT 22FPS @16BIT
- 1920Lines 85FPS @8BIT 43.5FPS @16BIT
- 640Lines 99FPS @8BIT 93FPS @16BIT
- Exposure Time Range: 11us-900sec
- Shutter Type: Electric Rolling Shutter
- Computer Interface: USB3.2 Gen1 Type-C
- Guide Port: st4
- Telescope Interface: 1.25-inch, compatible with CS-port and C-port lenses by replacing the front-end connector (An IR AR glass and an IR850nm filter are included in the standard version.)
- Back Focal Length: 17mm (with adapter); 8±0.5mm (without adapter)
- Weight: 90g
Other Information
- Country of Manufacture: China
QHY5III678C is a new planetary and guiding camera of the 2nd generation of QHY5III series, the upgraded version of QHY5III178C, with excellent near-infrared high sensitivity.
Extended Near Infared Sensitivity
In this latest generation of sensors, the photodiode portion of the pixel well is physically deeper than in previous sensors, allowing photons of longer wavelengths to penetrate deeper into the substrate. This dramatically increases the sensor's sensitivity to red and near-infrared (NIR) light. The sensor displays almost equal peak sensitivity to NIR light as it does to light in the visible spectrum.
512MB DDR3
The QHY5III (Ver. 2) series planetary and guiding cameras are all equipped with a 512MB DDR3 image buffer which can effectively reduce the pressure on computer transmission, a great help for planetary photography which often requires writing a large amount of data in a short period of time. Some deep-sky astrophotography cameras on the market today only have 256MB, for example.
In comparison, the 512MB DDR3 memory of the new 5III (Ver. 2) series cameras represents a significant upgrade.
New Front-end Design with Better Compatibility
QHY5III (Ver. 2) series cameras have adopted a new front-end design with better compatibility. All V2 cams in the future share these features.
The BFL of V2 cam is only 8mm, which means you can easily compat a V2 cam with your OAG. The basic top adapter includes 1.25 inch threads and you can still use your 1.25 inch filter.
The top adapter glass of V2 can be easily switched. One of the advantages of changeable top glasses is you can use one filter even you're using a lens! You can add a 1.25inch-cs adapter to connect CS lens, or add a second CS-C lens for C-mount lens. The two adapters are all standard accessories of V2 cams.
USB 3.2 Gen1 Type C Interface
The new QHY5III (Ver.2) series cameras all use the USB3.2 Gen1 Type-C interface. Compared to the USB3.0 Type-B interface used in the previous generation, the Type-C interface has a longer life and is more flexible.
Tips: It is recommended to use the official standard Type-C data cable of QHYCCD. As the market is flooded with a large number of poor-quality Type-C cables, casual use may lead to the camera malfunctioning. If you use your own spare cable, please make sure it is a high-quality cable.
Universal Guiding Interface
The custom interfaces of the previous generation of planetary cameras and guiders has been replaced in the QHY5III (Ver.2) cameras with a more universal ST-4 compatible guiding interface. Now, even if the guiding cable is lost or damaged, you will be able to easily get a replacement on the market at a low cost.
Indicator LED
The new QHY5III (Ver.2) series of cameras is equipped with a status indicator at the back of the camera. If the camera experiences an abnormal status, the multi-colored indicator light will help to determine the situation with different colors signifying different conditions. During normal operation this indicator light is off, so there is no worry about light contaminating the image.
Specifications:
- Model: QHY5III678C
- CMOS Sensor: Sony IMX678
- Pixel Size: 2.0um*2.0um
- Effective Pixel Area: 3856*2180
- Effective Pixels: 8.4 Mega Pixel
- Fullwell: 9ke-
- Readout Noise: 0.57-3.3e-
- AD Sample Depth: 12-bit (output as 16-bit and 8-bit)
- Built-in Image Buffer: 512MB DDR3 Memory
- ROI Frame Rate:
- Full Resolution 43FPS @8BIT 22FPS @16BIT
- 1920Lines 85FPS @8BIT 43.5FPS @16BIT
- 640Lines 99FPS @8BIT 93FPS @16BIT
- Exposure Time Range: 11us-900sec
- Shutter Type: Electric Rolling Shutter
- Computer Interface: USB3.2 Gen1 Type-C
- Guide Port: st4
- Telescope Interface: 1.25-inch, compatible with CS-port and C-port lenses by replacing the front-end connector (An IR AR glass and an IR850nm filter are included in the standard version.)
- Back Focal Length: 17mm (with adapter); 8±0.5mm (without adapter)
- Weight: 90g
| Manufacturer | QHYCCD |
|---|
- Camera body
- USB 3.0 Type C Cable
- ST-4 Style Guiding Cable
- Focus Lock Ring and Thumbscrew
- 0.25mm Focusing Adapters x2
- CS to C Mount Adapter
- 1.25in to CS Adapter
- Filter Coated Front Window
- IR850 Filter
- Driver Download Instructions
