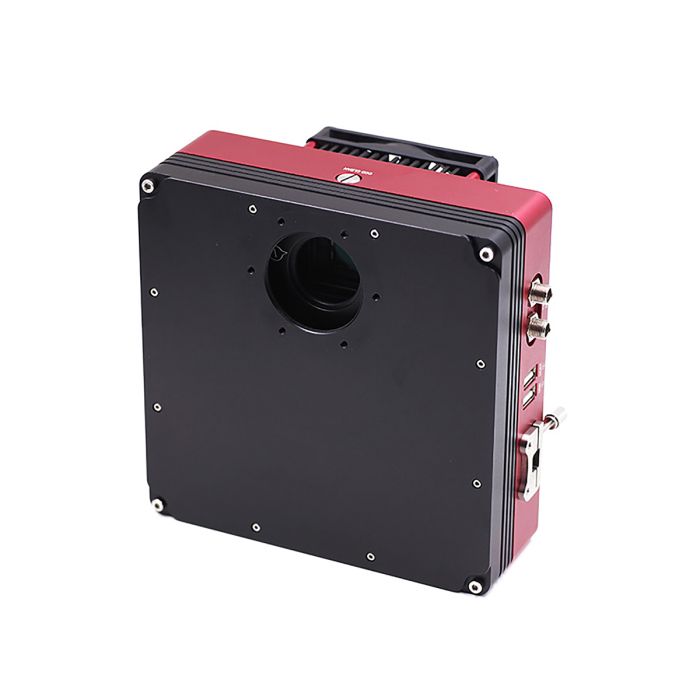

QHY 695A Cooled Monochrome CCD Astronomy Camera with Filter Wheel
This item is discontinued by the manufacturer and is no longer available.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- Monochrome astronomy camera with Sony ICX695 ExView II CCD sensor with QE close to 80%
- Integrated “all-in-one” configuration includes motor-driven filter wheel and native off-axis guider support (OAG sold separately)
- USB host interface and 12V output socket to power and control guide cameras, mount, and electronic focuser
- Two-stage cooling reduces chip temperature to 45C below ambient to keep noise low
- Mechanical butterfly shutter for uniform illumination and long life
1. QHY 6.0 Megapixel CCD Monochrome Astronomy Camera with High QE
The QHY695A astronomy camera uses the Sony ICX695 ExView II CCD, a 1-inch, 6 megapixel monochrome sensor with a peak QE close to 80%. The read noise is as low as 4 electrons. The pixel size is 4.5 um.
2. All-in-One Configuration Includes Filter Wheel and OAG Support
The letter "A" is used by QHYCCD to designate a camera that is an integrated (ALL-IN-ONE) camera equipped with the essential integrated features needed for astrophotography. The QHY695A has a built-in motor driven filter wheel for automatic sequencing of color or narrowband imaging. It supports both an 8-position, 1.25-inch filter carousel and a 7-position, 36mm filter carousel making it possible to install an entire deep sky filter set LRGB, Ha, OIII, and SII at the same time.
The camera also supports integration with a QHYOAG off-axis guider using six M3 screw holes while taking up minimal back focus. (Off-axis guider is sold separately).
3. Integrated Control
The A-series cameras have a USB host interface that can be connected to a guide camera. Two serial ports are available for the equatorial mount and the electric focuser. Control of the camera, mount, guide camera and focuser can be managed through a single USB connection to your computer.
The QHY695A uses a single 12V power cord that can be secured with a threaded lock nut. It also has a 12V output socket that can power peripherals directly from the camera.
4. Butterfly Shutter for Uniform Illumination and Long Life
The QHY695A camera uses a mechanical shutter that has the shape of a butterfly. This provides even illumination as the shutter sweeps across the sensor to begin or end an exposure. The shutter is driven directly by the motor and has no other moving parts, making its working life almost unlimited.
5. Two-Stage TEC cooling and External Trigger
Integrated two-Stage cooling reduces the temperature of the CCD chip to 45 degrees C below ambient, resulting in very low thermal noise and a clean, long exposure.
The QHY695A also has an external trigger in/out port for exposure timing or synchronizing the start of exposure.
6. What's in the Box
- 12V power cable
- 12V car power adapter
- USB cable
- Grounding cable
- M42 to 2 inch adapter ring
- Desiccant Drying Tube
- Desiccant
- USB hub bypass board
- Screw driver for M2 hexagon screw
- Screw driver for M3 hexagon screw
- Screws for fixing filter frame and filter
- Inspection report
- Waterproof plastic box
- Camera
Optional accessories: 12V power adaptor (12V 6A), Trigger cable, RS232 cable (1.5m), Screws set used to fasten filters
NOTE: If you wish to supply your own 12V power adapter, its output current must be at least 3.5A and the polarity must be center positive.
Useful Resources
Other Information
- Country of Manufacture: China
1. QHY 6.0 Megapixel CCD Monochrome Astronomy Camera with High QE
The QHY695A astronomy camera uses the Sony ICX695 ExView II CCD, a 1-inch, 6 megapixel monochrome sensor with a peak QE close to 80%. The read noise is as low as 4 electrons. The pixel size is 4.5 um.
2. All-in-One Configuration Includes Filter Wheel and OAG Support
The letter "A" is used by QHYCCD to designate a camera that is an integrated (ALL-IN-ONE) camera equipped with the essential integrated features needed for astrophotography. The QHY695A has a built-in motor driven filter wheel for automatic sequencing of color or narrowband imaging. It supports both an 8-position, 1.25-inch filter carousel and a 7-position, 36mm filter carousel making it possible to install an entire deep sky filter set LRGB, Ha, OIII, and SII at the same time.
The camera also supports integration with a QHYOAG off-axis guider using six M3 screw holes while taking up minimal back focus. (Off-axis guider is sold separately).
3. Integrated Control
The A-series cameras have a USB host interface that can be connected to a guide camera. Two serial ports are available for the equatorial mount and the electric focuser. Control of the camera, mount, guide camera and focuser can be managed through a single USB connection to your computer.
The QHY695A uses a single 12V power cord that can be secured with a threaded lock nut. It also has a 12V output socket that can power peripherals directly from the camera.
4. Butterfly Shutter for Uniform Illumination and Long Life
The QHY695A camera uses a mechanical shutter that has the shape of a butterfly. This provides even illumination as the shutter sweeps across the sensor to begin or end an exposure. The shutter is driven directly by the motor and has no other moving parts, making its working life almost unlimited.
5. Two-Stage TEC cooling and External Trigger
Integrated two-Stage cooling reduces the temperature of the CCD chip to 45 degrees C below ambient, resulting in very low thermal noise and a clean, long exposure.
The QHY695A also has an external trigger in/out port for exposure timing or synchronizing the start of exposure.
6. What's in the Box
- 12V power cable
- 12V car power adapter
- USB cable
- Grounding cable
- M42 to 2 inch adapter ring
- Desiccant Drying Tube
- Desiccant
- USB hub bypass board
- Screw driver for M2 hexagon screw
- Screw driver for M3 hexagon screw
- Screws for fixing filter frame and filter
- Inspection report
- Waterproof plastic box
- Camera
Optional accessories: 12V power adaptor (12V 6A), Trigger cable, RS232 cable (1.5m), Screws set used to fasten filters
NOTE: If you wish to supply your own 12V power adapter, its output current must be at least 3.5A and the polarity must be center positive.
| Manufacturer | QHYCCD |
|---|
- Model: QHY695A
- Sensor : SONY ICX695 ExView II CCD
- Pixel Size: 4.54um*4.54um
- Resolution: 2758(H)*2208(V)
- Effective Pixels: 6 Megapixels
- Effective Image Area: 14.6mm(H)*12.8mm(V)
- Readout Type: Progressive Scan
- Fullwell: 15-20ke-
- Readout Noise: 4e-5e
- Pixel Binning: 1x1, 2x2, 4x4
- Exposure Time: 1ms-10000sec
- Cooling System: Dual Stage TEC Cooler (-45C below ambient)
- Shutter Type: Electric Global Shutter plus mechanical shutter
- OAG Interface: Six M3 screw thread
- Power Consumption: 0% TECpower 8w, 50% TEC power 16.5 w, 100% TEC power 27 w
- AD Sample Depth: 16 bit
- Sensor Size: Typical 1-inch optical format
- Color / Monochrome: Monochrome Only
- Build-in Filter wheel: 8-position, 1.25inch or 7-position, 36mm unmounted
- Build-in Anti-Dew Heater: Yes
- Telescope Interface: M42/0.75 Female Thread
- Back Focal Length: 33mm（±0.5）
- Weight: 1367g
