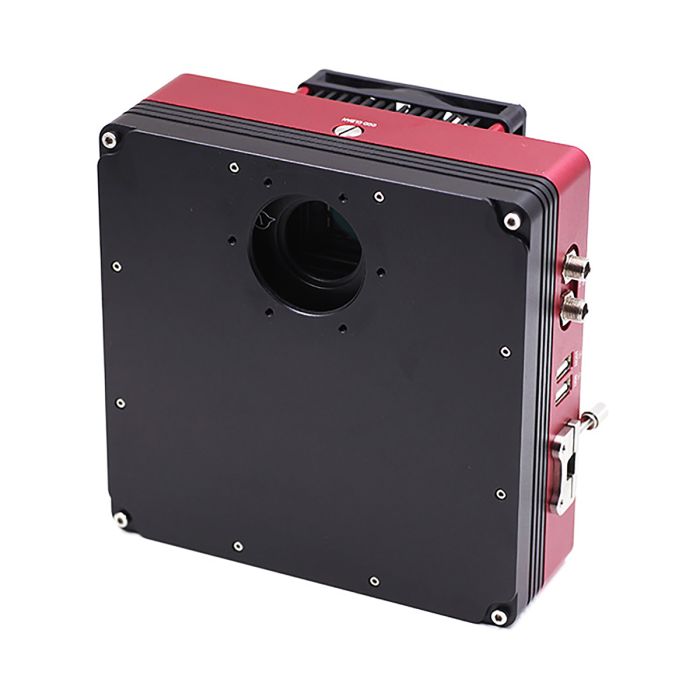

QHY 814A Cooled Monochrome CCD Astronomy Camera with Filter Wheel # QHY814A

Our #: ZZPAIC-ZZQH-QHY814A
Mfg #: QHY814A
Our Price: $3,849.00
Free shipping for this item in the US
More Info

Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.

US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.

International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

Out of Stock
Availability: Item has been discontinued by the manufacturer

Quick Overview

  • Monochrome astronomy camera with Sony ICX814 ExView II CCD, a 1-inch, 9.2 megapixel sensor with a peak QE close to 80%
  • Integrated “all-in-one” configuration includes motor-driven filter wheel and native off-axis guider support (OAG sold separately)
  • USB host interface and 12V output socket to power and control guide cameras, mount, and electronic focuser
  • Two-stage cooling reduces chip temperature to 45C below ambient to keep noise low
  • Mechanical butterfly shutter for uniform illumination and long life

Product Details

1. QHY 9.2 Megapixel CCD Monochrome Astronomy Camera with High QE

The QHY814A uses the Sony ICX814 ExView II CCD, a 1-inch, 9.2 megapixel sensor with a peak QE close to 80%. The read noise is as low as 4 electrons.

2. All-in-One Configuration Includes Filter Wheel and OAG Support

The letter "A" is used by QHYCCD to designate a camera that is an integrated (ALL-IN-ONE) camera equipped with the essential integrated features needed for astrophotography. The QHY814A has a built-in motor driven filter wheel for automatic sequencing of color or narrowband imaging. It supports both an 8-position, 1.25-inch filter carousel and a 7-position, 36mm filter carousel making it possible to install an entire deep sky filter set LRGB, Ha, OIII, and SII at the same time.

The camera also supports integration with a QHYOAG off-axis guider using six M3 screw holes while taking up minimal back focus. (Off-axis guider is sold separately).

3. Integrated Control

The A-series cameras have a USB host interface that can be connected to a guide camera. Two serial ports are available for the equatorial mount and the electric focuser. Control of the camera, mount, guide camera and focuser can be managed through a single USB connection to your computer.

The QHY814A uses a single 12V power cord that can be secured with a threaded lock nut. It also has a 12V output socket that can power peripherals directly from the camera.

4. Butterfly Shutter for Uniform Illumination and Long Life

The QHY814A camera uses a mechanical shutter that has the shape of a butterfly. This provides even illumination as the shutter sweeps across the sensor to begin or end an exposure. The shutter is driven directly by the motor and has no other moving parts, making its working life almost unlimited.

5. Two-Stage TEC cooling and External Trigger

Integrated two-Stage cooling reduces the temperature of the CCD chip to 45 degrees C below ambient, resulting in very low thermal noise and a clean, long exposure.

The QHY814A also has an external trigger in/out port for exposure timing or synchronizing the start of exposure.

6. What's in the Box

  • 12V power cable
  • 12V car power adapter
  • USB cable
  • Grounding cable
  • M42 to 2 inch adapter ring
  • Desiccant Drying Tube
  • Desiccant
  • USB hub bypass board
  • Screw driver for M2 hexagon screw
  • Screw driver for M3 hexagon screw
  • Screws for fixing filter frame and filter
  • Inspection report
  • Waterproof plastic box
  • OHYOAG-S
  • Camera

Optional accessories: 12V power adaptor (12V 6A), Trigger cable, RS232 cable (1.5m), Screws set used to fasten filters

NOTE: If you wish to supply your own 12V power adapter, its output current must be at least 3.5A and the polarity must be center positive.

Other Information

  • Country of Manufacture: China
  • MODEL: QHY814A
  • CCD Sensor: SONY ICX814 CCD Sensor
  • Pixel Size: 3.69um*3.69um
  • Resolution: 3468*2728
  • Effective Pixels: 9.2 Megapixels
  • Effective Image Area: 14.6mm*12.8mm
  • Fullwell: 15-20ke-
  • Peak QE: 79%
  • Readout Noise: 4e- to 5e-
  • AD Sample Depth: 16-bit
  • Sensor Size: Typical 1-inch optical format
  • Color/Monochrome: Monochrome Only
  • Cooling System: Dual Stage TEC(-40C Below Ambient)
  • Built-in Motor Driven Filter Wheel: 8 position 1.25inch (7 position 36mm can be request also)
  • Computer Interface: USB2.0
  • Shutter Type: Electric Global Shutter plus a Mechanical Shutter
  • Anti-Dew Heater Window: Yes
  • QHYOAG interface: Six M3 Screw Thread
  • Power Consumption: 0% TEC power 8w , 50% TEC power 16.5 w , 100% TEC power 27 w
  • Telescope Interface: M42/0.75 Female Thread
  • Back Focal Lenth: 32.5mm(±0.5)
  • Weight: 1367g
