QHY Minicam 5S Cooled Monochrome Astronomy Camera with USB 2.0 # MINICAM5S

Quick Overview

  • QHY MiniCam5S Monochrome CMOS Camera for imaging planets, deep-sky, and autoguiding
  • Features a 1.2 megapixel Aptina MT9M034 CMOS monochrome sensor with 3.75 µm square pixels with low read noise and 74% QE
  • Regulated two-stage TEC cooling as much as -38ºC below ambient
  • Integrated heater helps prevent dew accumulation in the CMOS sensor chamber
  • Data capture rates of 30fps at full 1280x960 resolution and 200fps at 320x240 resolution

Product Details

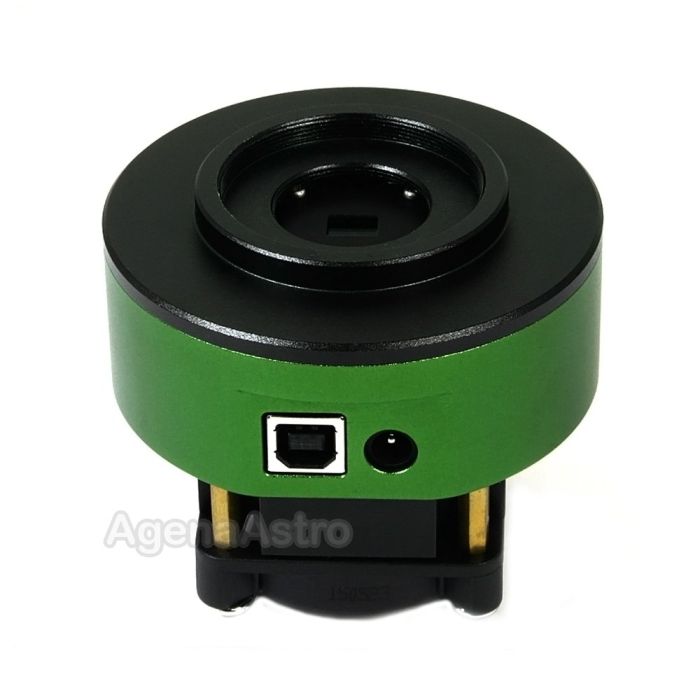

The QHY MiniCam5S is a cooled CMOS monochrome camera for deep space imaging, planetary imaging, and autoguiding. The MiniCam5S features an Aptina 1.2 megapixel MT9M034 CMOS monochrome sensor with a 1280 x 960 pixel array of 3.75um square pixels. The sensor has extremely low readout noise and a QE of 74% for fast capture of low-noise images. The MiniCam5S has a data capture rate of 30fps at full resolution and 200 frames per second at a resolution of 320x240. The MiniCam5S also supports on-camera guiding with 12-bit image output.

The QHY MiniCam5S also includes a dual-stage TEC that can cool the camera as much as -38C below ambient. A built-in heater keeps moisture off the chamber window, while an included silicone gel tube lets you dry the chamber manually.

The MiniCam5S incorporates an industry-standard 5 PIN guide port along with a robust Lemo-style connector which provides a superior connection between the camera and another device.

Manufacturer QHYCCD
