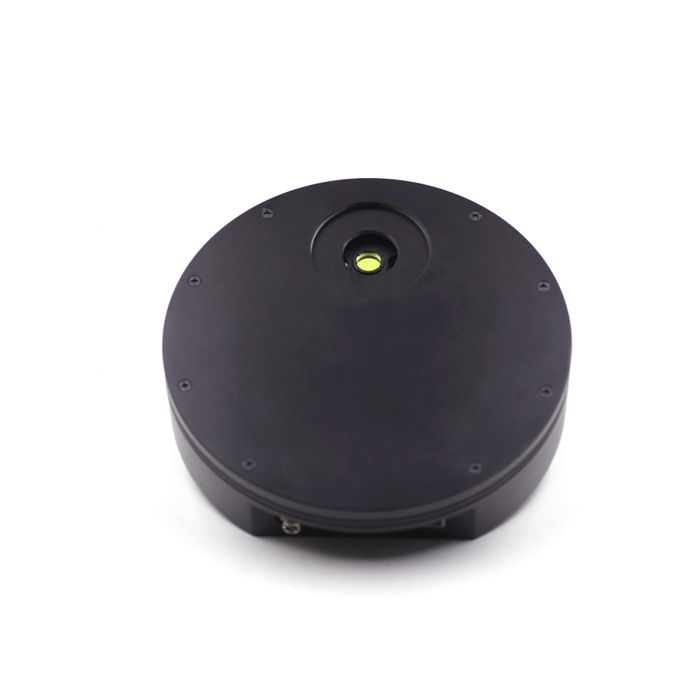

QHY Minicam 6F Cooled Monochrome Astronomy Camera with 20 Position Filter Wheel # MINICAM6F

Our Price: $1,299.00
Free shipping for this item in the US Click here for more info

Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.

US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.

International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

Our Product ID: PAIC-QH-Minicam6F
Manufacturer SKU: minicam6f
Item Can Ship: Worldwide
QHY Minicam 6F Cooled Monochrome Astronomy Camera with 20 Position Filter Wheel # MINICAM6F

More Views

Quick Overview

  • Each QHY5II Series camera comes in its own metal box with USB cable, guide cable, focus ring and 1.25" extension tube.
  • Meeting or exceeding the specs of more expensive CCD cameras, these small high quality guider / imagers are an excellent value.
  • QHY5II cameras are USB powered. No additional power supply or cable is needed. The small size makes them a great travel camera or backup camera as well as an excellent planetary camera.

Product Details

QHY5-II Series Cameras fit in a standard 1.25-inch eyepiece holder and have an adjustable location ring for confocality with an eyepiece. They are ideal for use as low-weight autoguiders. QHY5-II series cameras come in very small but powerful packages! The improved thermal design allows the heat generated by the CMOS sensor to be transferred externally to the telescope's eyepiece tube.

QHY5-II uses On Semiconductor's MT9M001, 1/2-inch, 1.3 Megapixel monochrome sensor with 5.6um pixels providing 1280x1024 images. It can output 1280x1024@30fps and 320x240@320FPS. Mono only.

Specifications:

  • Sensor: MT9M001
  • Total Pixels: 1.3 Megapixels
  • Pixel Size: 5.6um
  • Pixel Array: 1280 x 1024
  • Optical Format: 1/2 inch
  • FPS @ 640 x 480: 106
  • FPS @ Full Resolution: 30
  • Peak QE: 56%
  • A/D Resolution: 10-bit
  • Shutter: Electronic
  • Dynamic Range: 68.2 dB
  • Weight: 51g



Manufacturer part number: QHY5-II

Manufacturer QHYCCD
  • Model: miniCAM6F-M
  • CMOS Sensor: SONY IMX178 Monochrome Back-Illuminated
  • Pixel Size: 2.4um
  • Resolution: 3072 x 2048
  • Total Pixels: 6 Megapixels
  • Optical Format: 1/1.8-in optical format
  • Read Type: Progressive Scan
  • Shutter: Electronic Rolling Shutter
  • Exposure Time: 10us-180sec
  • Binning Modes: 1*1, 2*2
  • Frame Rate: 50 FPS at Full Resolution
  • A/D: 10-bit/140bit A/D,  8-bit/14-bit Output
  • Read Noise: Low Gain, 2.4e-,  High Gain 0.9e-
  • Full Well Capacity: 15ke-
  • Mechanical interface: C-Mount
  • Optical Window: Broadband Multi-AR Coated (UV quartz glass with custom order)
  • Back focus: 17.5mm,  C-mount standard
  • Cooling: 2-Stage TE Cooling
  • Maximum Cooling Temperature: -50C from ambient
  • Weight: 1313g
  • Power Consumption: 22.6 Watts with cooling at 100%
  • USB Interface: Yes, USB3.0 super high speed interface
  • Built-In Filter Wheel: 20-Position Carousel, supports 12mm and 12.5mm standard filters
  • Optical Window: Broadband Multi-AR Coated
  • Monochrome version: miniCAM6F-M
