Askar 111F f/6.9 Flat-Field Quadruplet Refractor Telescope
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- 111 mm quadruplet APO with ED glass delivers sharp, high-contrast images with color correction for astrophotography and visual observing.
- Built-in self-flattened optics support full-frame imaging with no additional flattener or complicated back-focus required.
- 3-inch dual-speed rack-and-pinion focuser with 360° rotator makes framing and focus effortless.
- Retractable dew shield, multiple finder mounting locations, and portable CNC-machined design make it ideal for travel imaging and flexible accessory setups.
- An optional dedicated 0.74x Reducer for 111F is available and sold separately for extra imaging versatility!
Watch a Quick Overview of the Askar 111F
Check out our overview of the Askar 111F! We take a closer look at its flat-field quadruplet optics, full-frame-ready performance, optional reducer, and what makes it such a versatile choice for deep-sky astrophotography and visual observation:
Askar 111F Self-Flattened Quadruplet Astrograph!
Staying true to Askar’s user-friendly design philosophy, the Askar 111F is built to deliver premium performance while remaining practical and easy to use. Featuring a 111 mm aperture, 766 mm focal length, and a versatile native focal ratio of f/6.9, the 111F is well suited for astrophotography, visual astronomy, and even daytime photography applications.
The telescope uses a high-performance quadruplet optical design with three elements in the front and one in the rear, including an ED glass element to help reduce chromatic aberration and produce sharp, color-corrected images with excellent contrast. The retractable dew shield helps shorten the telescope for easier storage and transport, making it more convenient for travel and field use! Built with a durable CNC-machined aluminum tube and high-quality painted finish, the 111F combines a solid premium feel with Askar’s signature blue-and-white F-series styling for a clean, modern appearance under the night sky.
Everything you need to know about the Askar 111F!
Features that Standout!
Flexible Camera Connection
The Askar 111F comes standard with a photographic extension tube, which is designed with a 2-inch filter thread. It includes adapters with M48x0.75 and M54x0.75 specifications, ensuring compatibility with DSLR cameras or astronomy cameras to meet diverse needs.

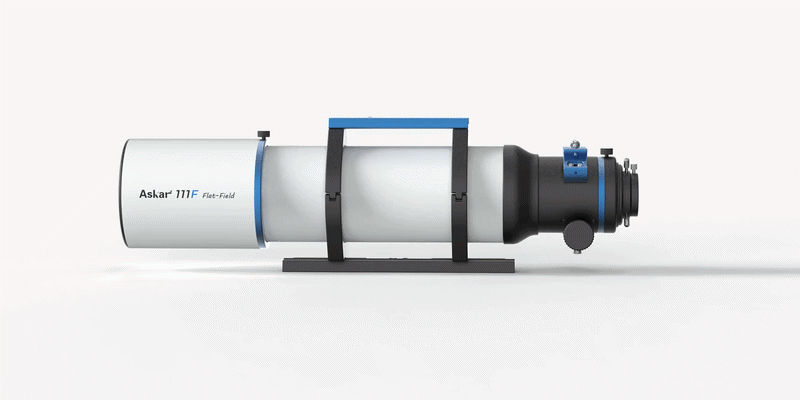

Built-in Flat-Field
Thanks to its built-in self-flattened design, the Askar 111F is ready for imaging right out of the box! Simply connect your camera, reach focus, and start capturing the night sky, no additional field flattener or back-focus calculations required. This design makes setup faster, easier, and far more beginner-friendly while still delivering sharp stars and excellent image quality across the field.
Brighter Images, Faster
Thanks to its built-in self-flattened design, the Askar 111F is ready for imaging right out of the box. Simply connect your camera and accessories, reach focus, and start capturing the night sky, no additional field flattener or back-focus calculations required. This design makes setup faster, easier, and far more beginner-friendly while still delivering sharp stars and excellent image quality across the field.
Built for Streamlined Sessions

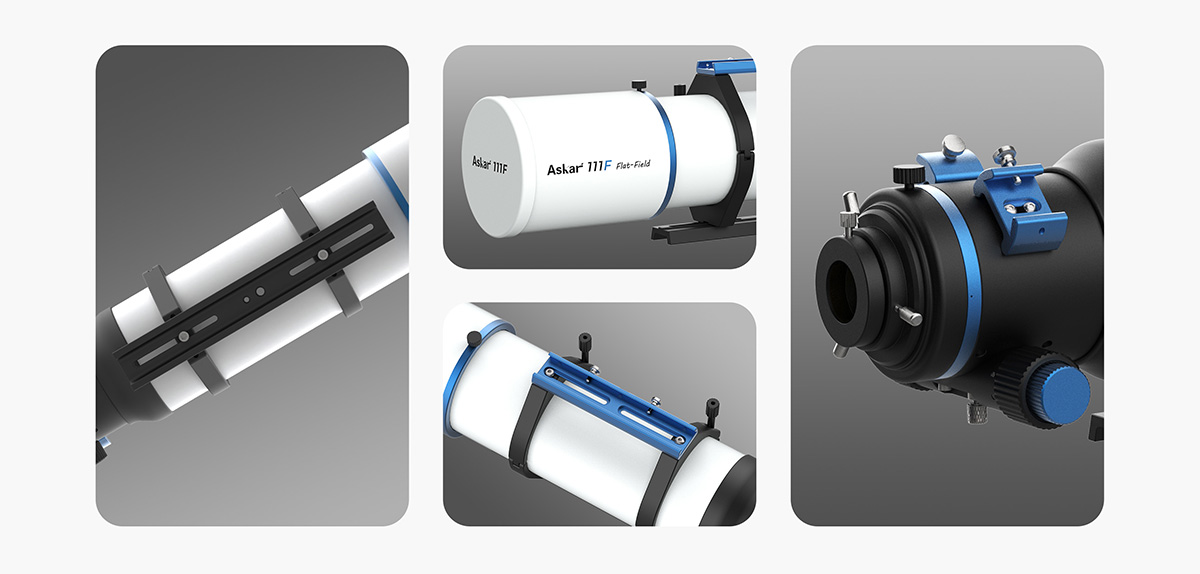

The Askar 111F is equipped with a sturdy 3-inch dual-speed rack-and-pinion focuser with 1:10 fine adjustment, making it easy to achieve precise focus for both visual observing and astrophotography. The fine-focus knob also features a protective cap to help prevent accidental damage during transport or setup. For added convenience, the rear of the focuser includes a fully rotatable 360° graduated camera rotator, allowing you to easily frame and adjust your imaging setup with precision.
The telescope also includes a durable 300 mm Vixen-style dovetail plate with built-in 1/4-inch and 3/8-inch threaded mounting holes, making it simple to attach directly to compatible mounts or tripods for quick setup in the field.
All-in-one Imaging Package

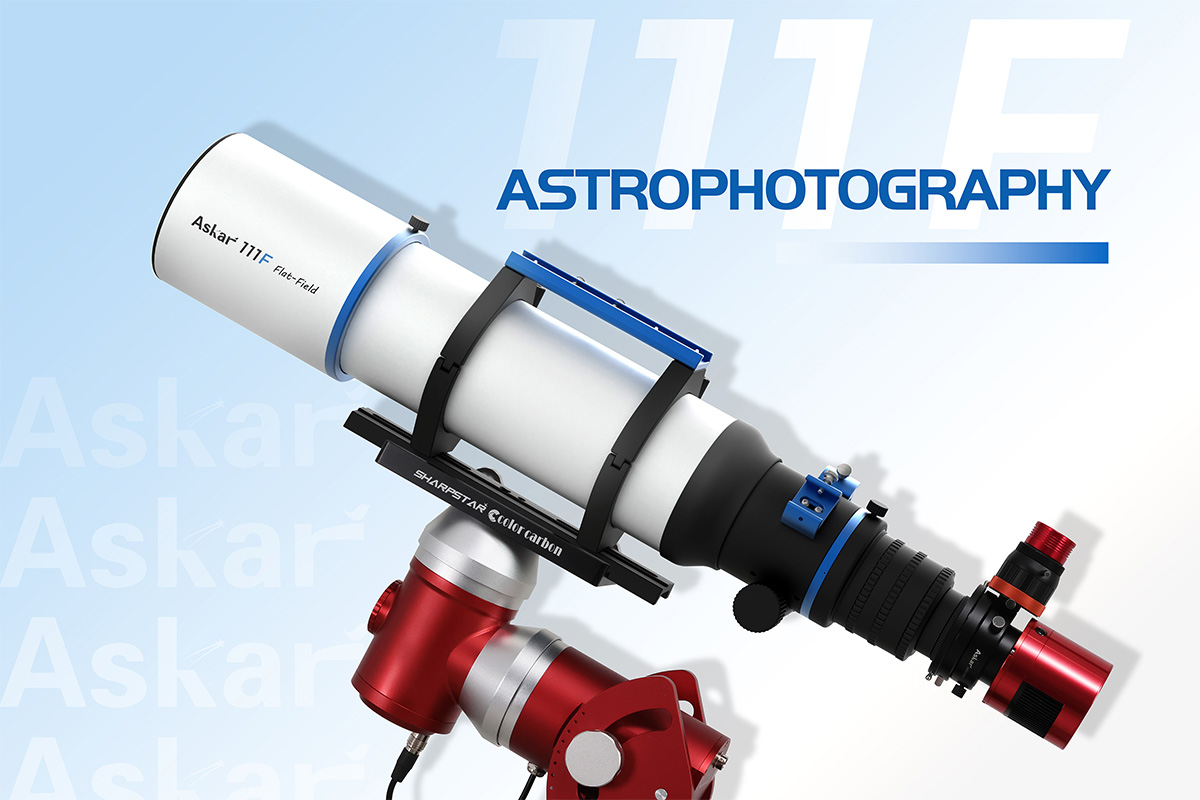

The Askar 111F is designed with flexibility and convenience in mind, featuring multiple built-in finder mounting locations for easier accessory setup and customization. The carry handle includes an integrated finder shoe, while additional finder bases on both sides of the focuser allow you to reposition a finder scope, guide scope, or other accessories without needing to disassemble your setup. This thoughtful design makes it easier to configure the telescope for astrophotography, guiding, or visual observing while keeping accessories within easy reach.
大橙子 | ic443 | Askar 111F+ Touptek atr2600m

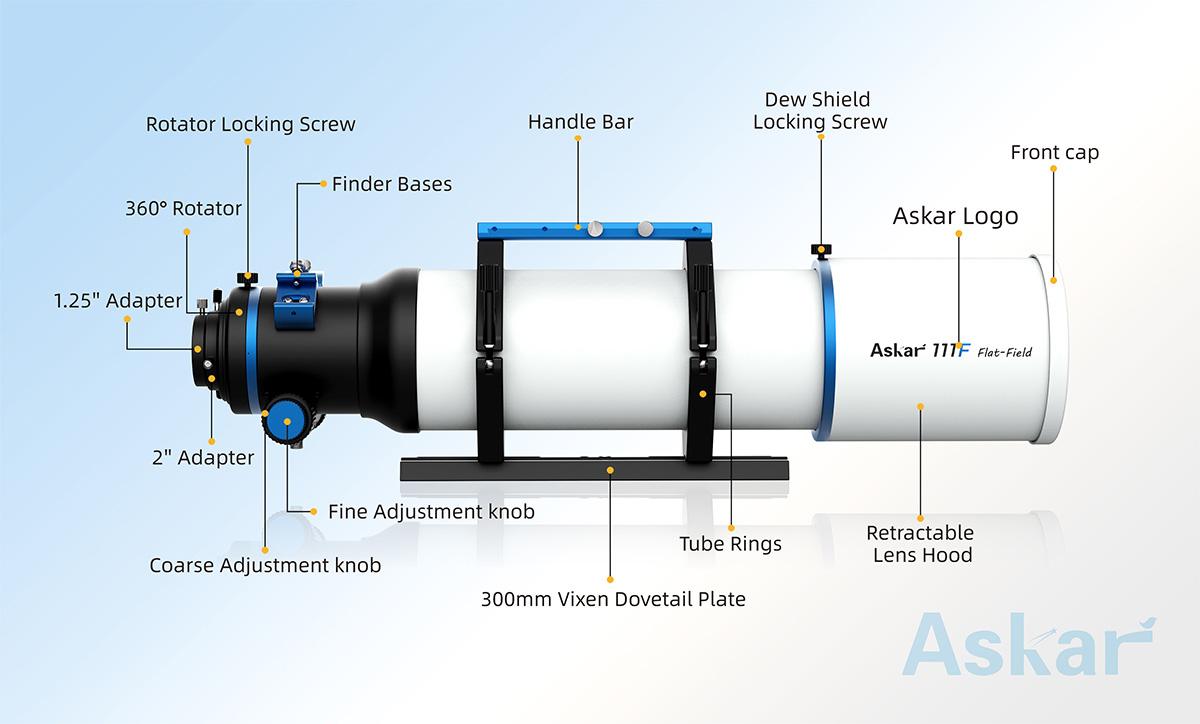

Askar 111F Breakdown
Specifications
- Aperture size: 111 mm
- Focal length: 766 mm
- Focal ratio: f/6.9
- Objective lens: Quadruplet air-spaced APO (including one ED glass)
- Image circle: 44 mm (Full frame)
- Focuser travel length: 30 mm
- Net weight: 12.75 lb (5.74 kg)
- Gross weight (Including accessories): 14.90 lb (6.76 kg)
Maximum accessory connection (with the focuser fully retreated)
- Imaging mode:
- 73 mm - 2.8 in (from the base of M48×0.75 male thread）
- 91 mm - 3.6 in (from the base of M54×0.75 male thread)
- Observing mode:
- 132 mm - 5.2 in (from the end of 1.25" eyepiece holder）
- 142 mm - 5.6 in (from the end of 2" eyepiece holder)
Minimum accessory connection (with the focuser fully extended)
- Imaging mode:
- 43 mm - 1.7 in (from the base of M48×0.75 male thread）
- 61 mm - 2.4 in (from the base of M54×0.75 male thread)
- Observing mode:
- 102 mm - 4.0 in (from the end of 1.25" eyepiece holder）
- 112 mm - 4.4 in (from the end of 2" eyepiece holder)
- Total length:
- 664 mm - 26.1 in (including 1.25" adapter as dew shield contracted）
- 751 mm - 29.6 in (including 1.25" adapter as dew shield fully stretched）
- 728 mm - 28.7 in (including the photographic adapter as dew shield contracted）
- 815 mm - 32.1 in (including the photographic adapter as dew shield fully stretched）
- Rear-end thread type:
- M78x1-M54x0.75
- M54x0.75-M54x0.75
- M54x0.75-M48x0.75 (w/ M48x0.75 filter thread)
Askar 111F Diagrams

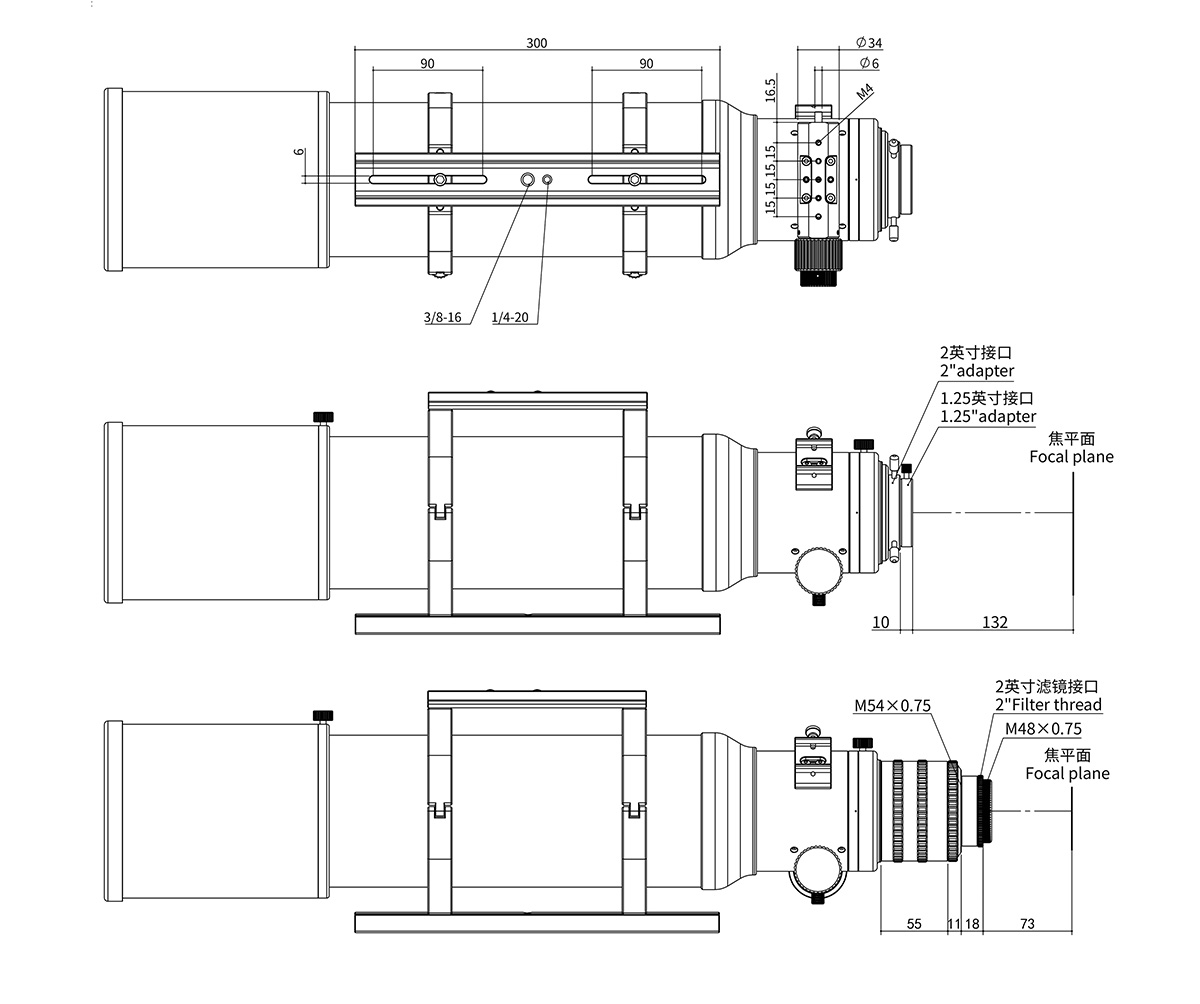

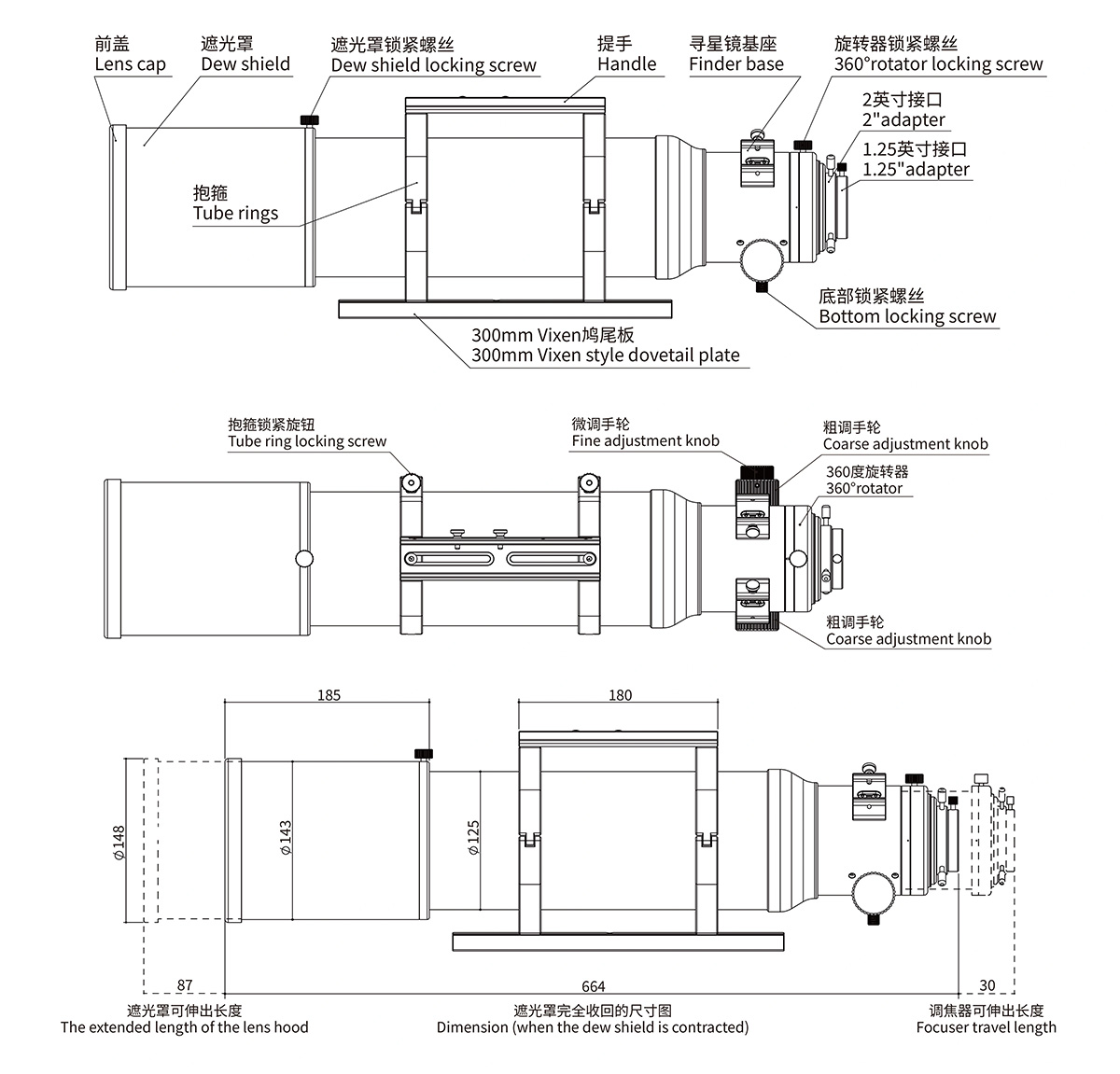

Mechanical Diagram

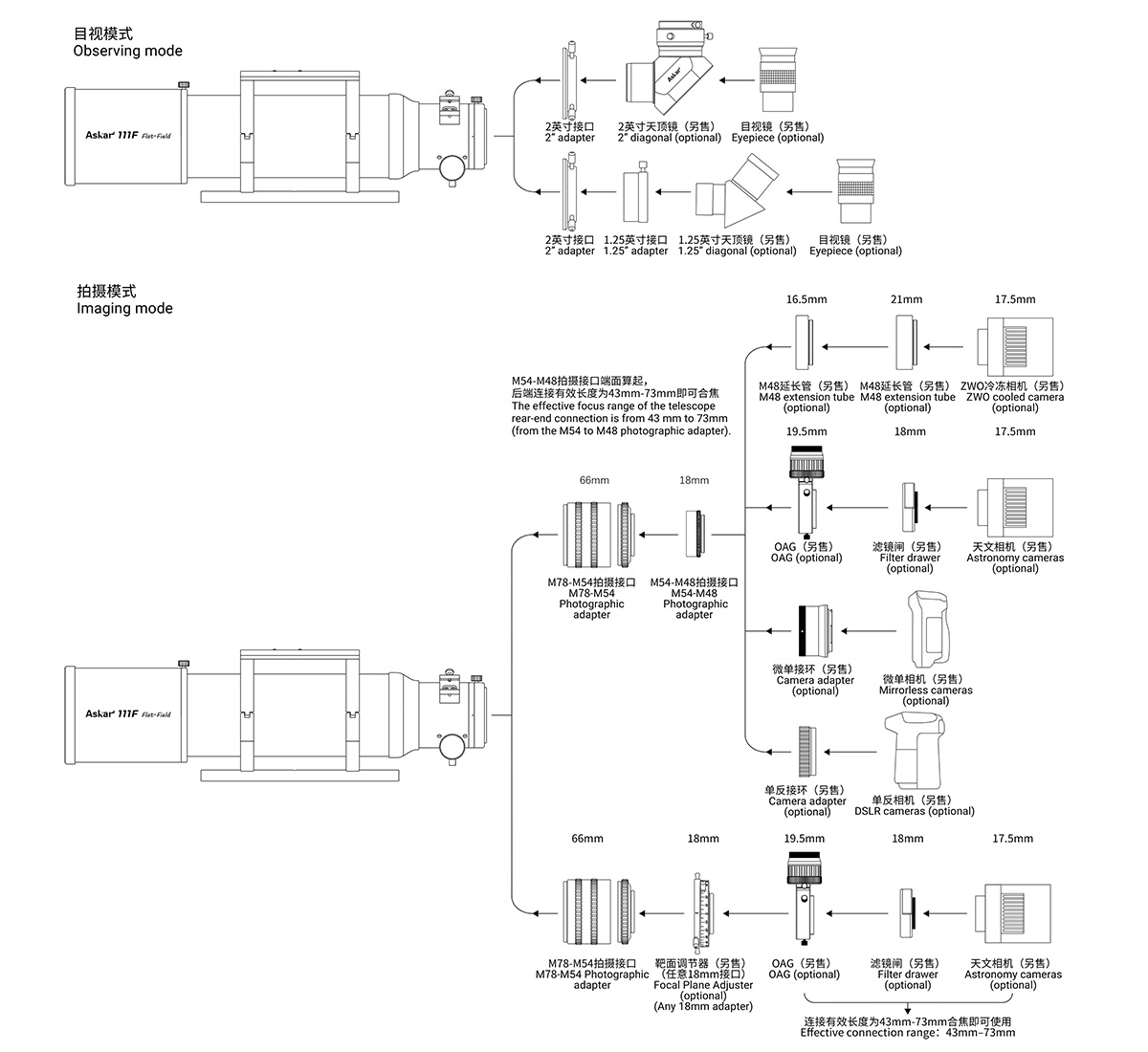

Connection Diagram

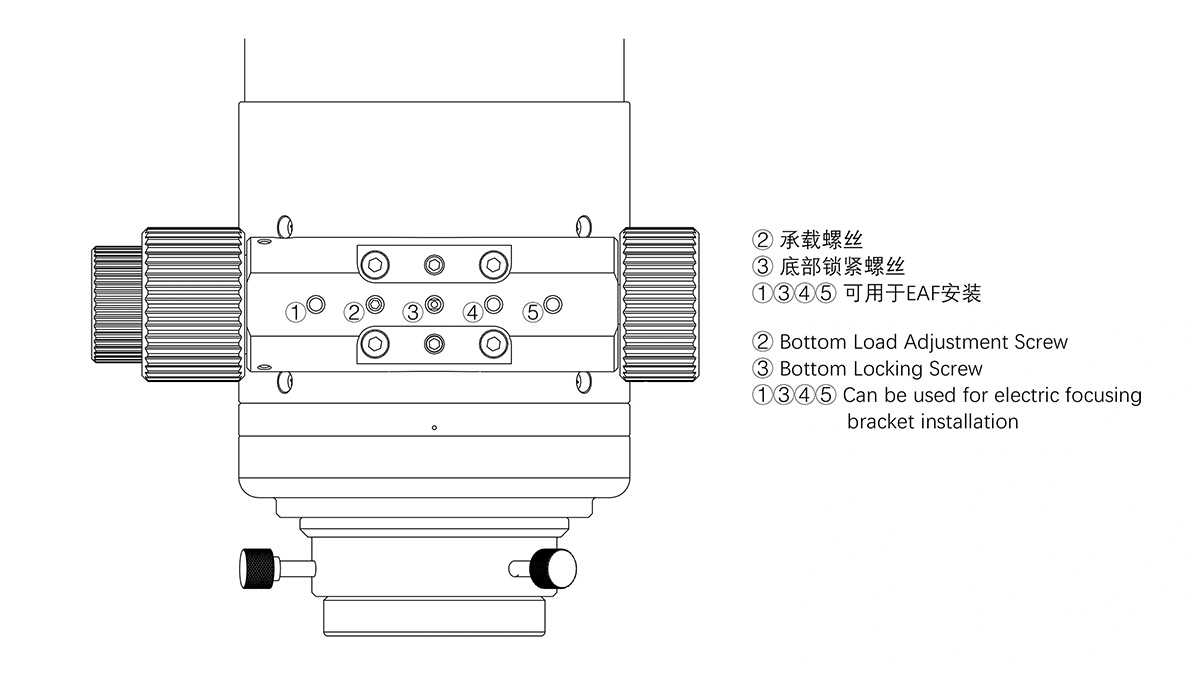

The Locking Screw Position Diagram

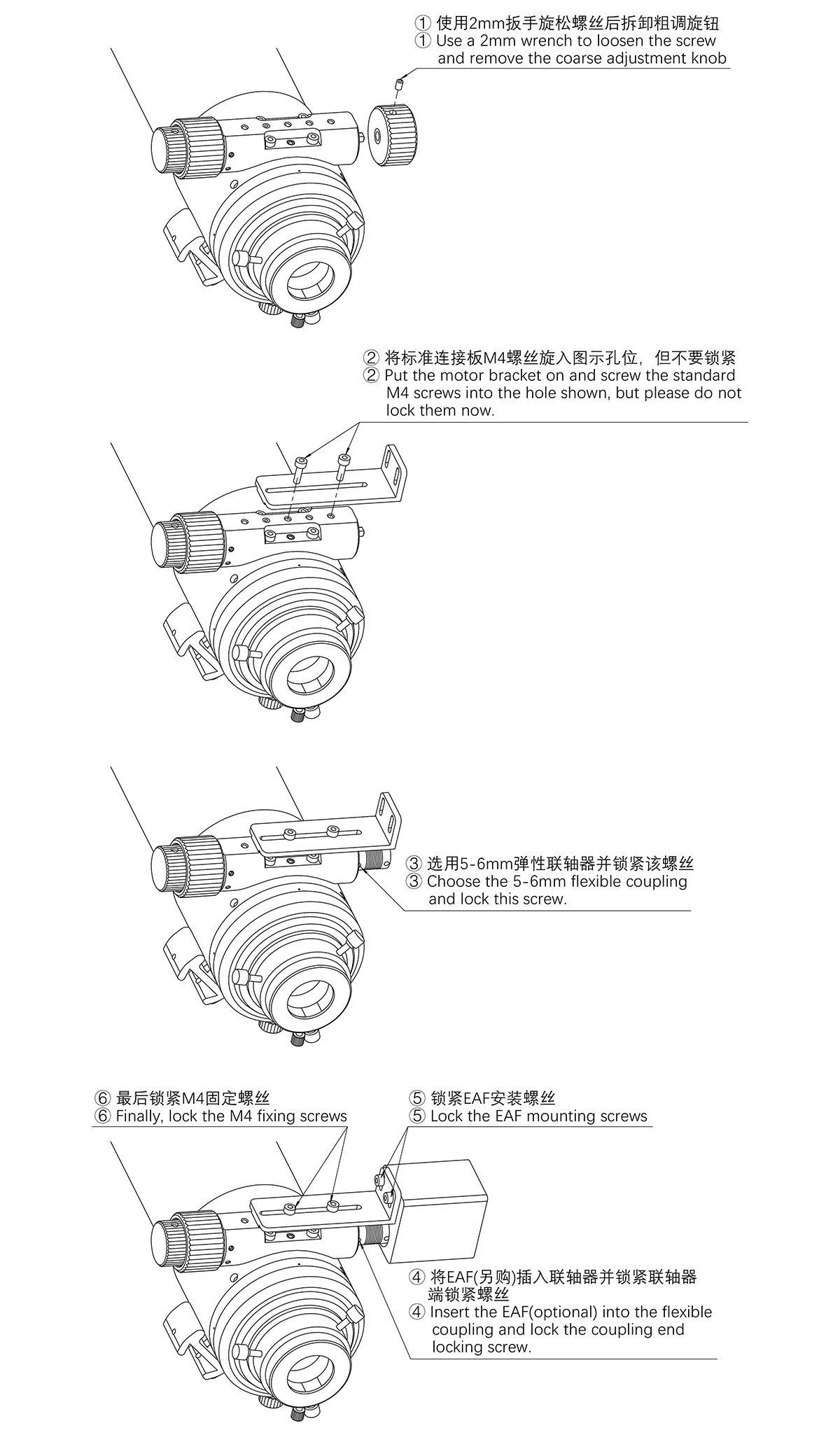

Electronic Focuser Assembly Diagram

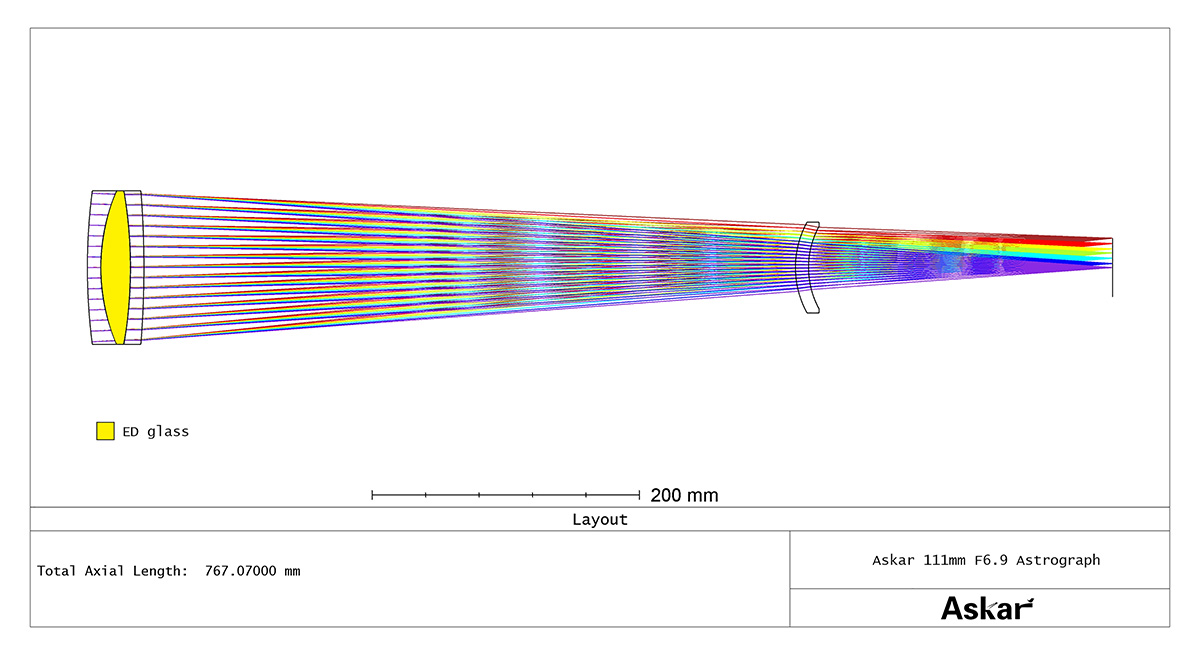

Optical Path Diagram

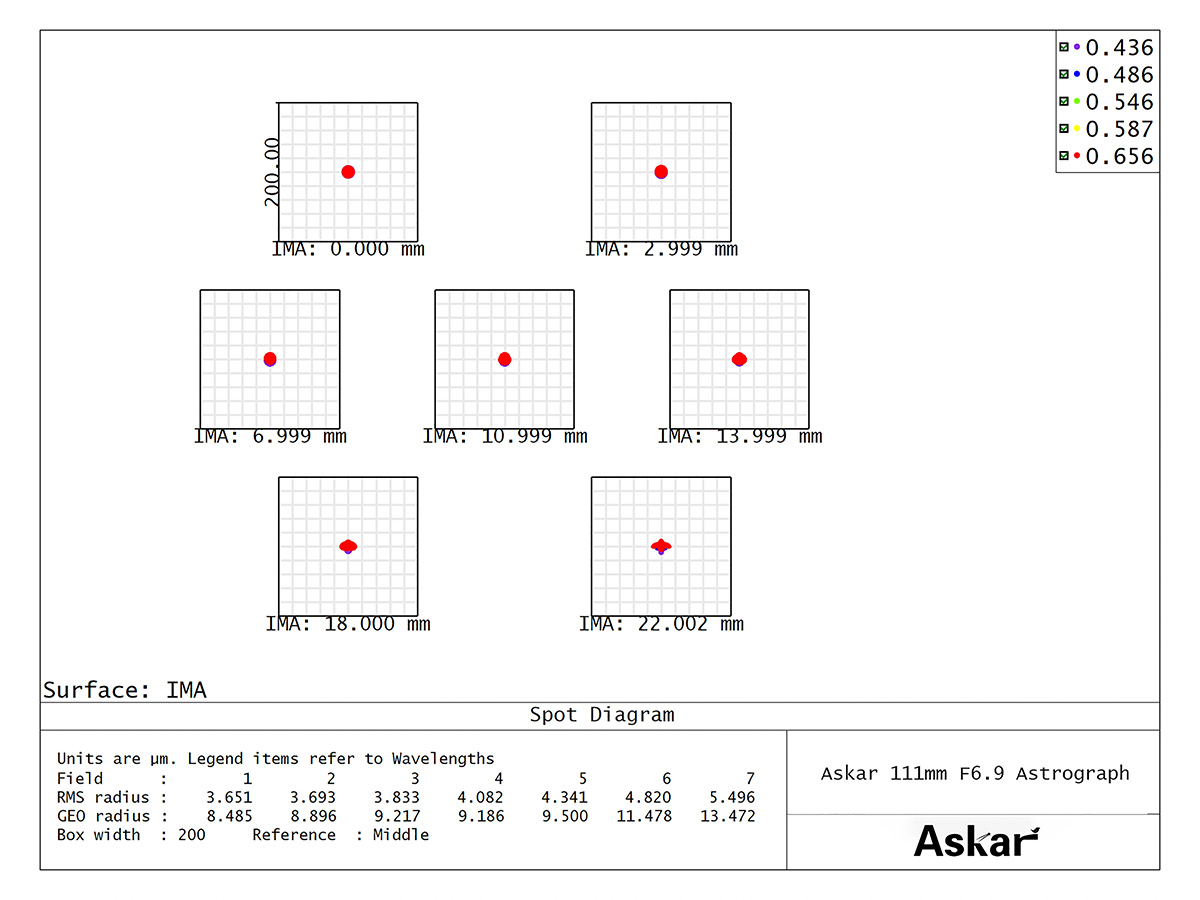

Spot Diagram
Other Information
- Country of Manufacture: China
