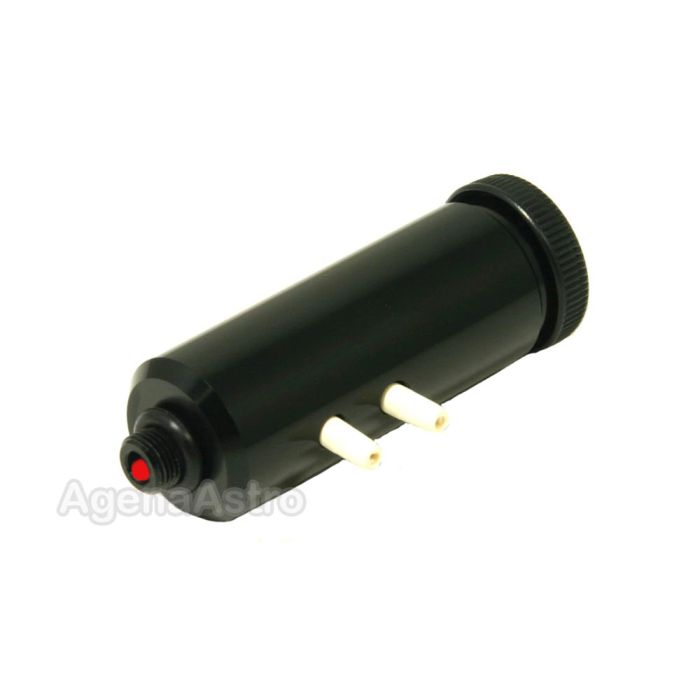

Rigel Systems Pulsguide Guiding Eyepiece Illuminator

Our #: E-RS-PULSGUIDE-ILL
Mfg #: -
Our Price: $49.95
Free shipping for this item in the US
More Info

Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.

US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.

International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

In Stock (1 Available)
Stock listed above is accurate & shown in real time
Ships by Next Business Day

Product Details

"Some observers therefore prefer a cross hair that flashes on and off while guiding. For this reason, Rigel Systems designed a guiding light source called "Pulsguide", a simple but effective invention that pulses the reticle illumination of a guiding eyepiece during an exposure. On and off times and the reticle brightness are all variable and the unit is compatible with many existing guiding eyepieces. For guiding on very faint guide stars, I find this gadget invaluable."
Martin Mobberley in Astronomical Equipment for Amateurs.

Less Eye Fatigue = Better Astrophotographs -- PulsGuide pulses the reticle illumination to let the eye rest between pulses. The result? Improved contrast between reticle and faint guide stars for easier guiding and better astrophotographs or acquisition of faint object in your finderscope.

Two Knob Timing Control and Adjustable Brightness -- 2 knobs let you independently tailor on and off blink times from continuous on to long-on/short-off or short-on/long-off or anything in between.

Two Color LEDs -- Comes with red LED which you can switch to yellow LED by unplugging red and plugging in yellow. Some astrophotographers find low level yellow makes the cross hair clearer and sharper, and makes guiding even easier.

Available With or Without Eyepiece -- Use Rigel's quality, dual crosshair, 12.5mm plossl eyepiece or with your eyepiece or finder. Fits standard 8mm threaded hole (M8x0.75 thread). Should work with most Japanese-made reticle eyepieces which should have this thread, but will not work with many new Chinese-made reticle eyepieces that have an M8x1.0 thread. Uses one long life lithium battery (included) that is available at most electronics, camera and hardware stores.

 Additional Testimonials:

"PulsGuide solves the problem of how to guide on faint stars while keeping the crosshairs bright. I use mine constantly. I prefer a yellow reticle illuminator because I'm sure my eye is focusing it in the same plane as the star."
Michael Covington, author of Astrophotography for the Amateur.

"...indeed with PulsGuide I was able to track stars that were virtually at the limit of what I could see in the eyepiece when no reticle illumination was present."
Dennis di Cicco in Sky and Telescope

"...fainter stars may be spotted and followed with greater ease...".
Phillip S. Harrington in Star Ware

Other Information

  • Country of Manufacture: United States
