Rigel Wi-Fi Aline Wireless Video Collimation Tool
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.

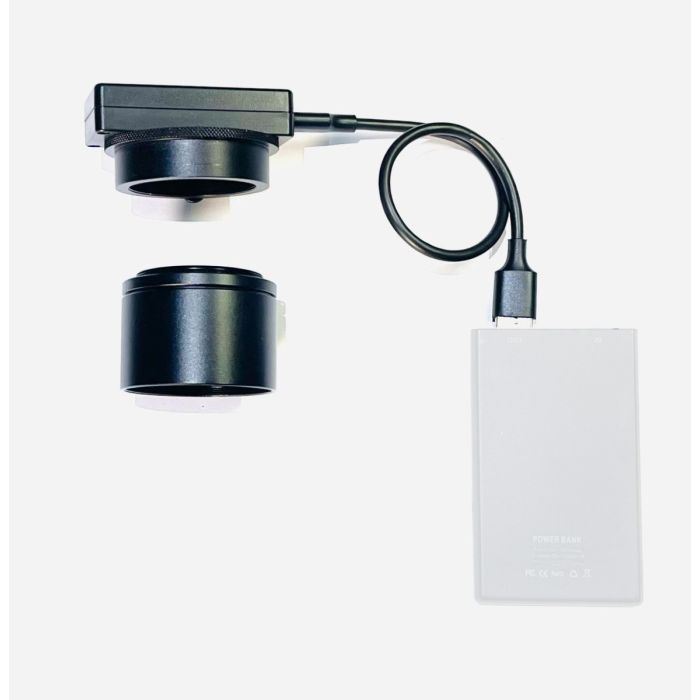

The wifi-Aline is a complete system for collimation and includes focuser extension tube (usb power bank sold separately), 5/8” ring and triangle-ring mirror center spots, eliminating the expense of a plethora of collimation tools.
The wifi-Aline enhances the accurate collimation of Dobsonian and Newtonian telescopes by sending a real-time video stream of the telescope optics wirelessly to your tablet, phone or computer’s display.
The wifi-Aline does not require any additional apps, applications, or other software downloads for use on computers, tablets or phones.
The wifi-Aline’s powerful ESP32 processor wirelessly serves up webpages to Safari, Edge, Firefox, or Chrome web browser on your computer, tablet, or phone for complete control of all wifi-Aline functions and viewing the real-time video stream of your telescope’s optical elements.
The wifi-Aline is carefully boresighted so the center of rotation in the image corresponds to the optical axis along which to collimate the secondary and primary mirrors to better than 0.02 degrees.
As an additional assist, wifi-Aline superimposes 3 coaxial target rings and a crosshair that, once carefully offset to align with the primary mirror edge, guide the collimation adjustments for the secondary and other optical elements to bring them into accurate collimation with the primary mirror.
The wifi-Aline internally surrounds the camera lens with an ultra bright micro-prism retro-reflector, lit by the light gathered by your primary to brightly delineate the centerline of your optics. Focus can be adjusted by screwing the lens in/out.
The wifi-Aline’s wifi-range of greater than 20 feet makes it the perfect tool for collimating large newts and dobs. No more dashing between the primary mirror cell and the eyepiece to check collimation.
Other Information
- Country of Manufacture: United States
