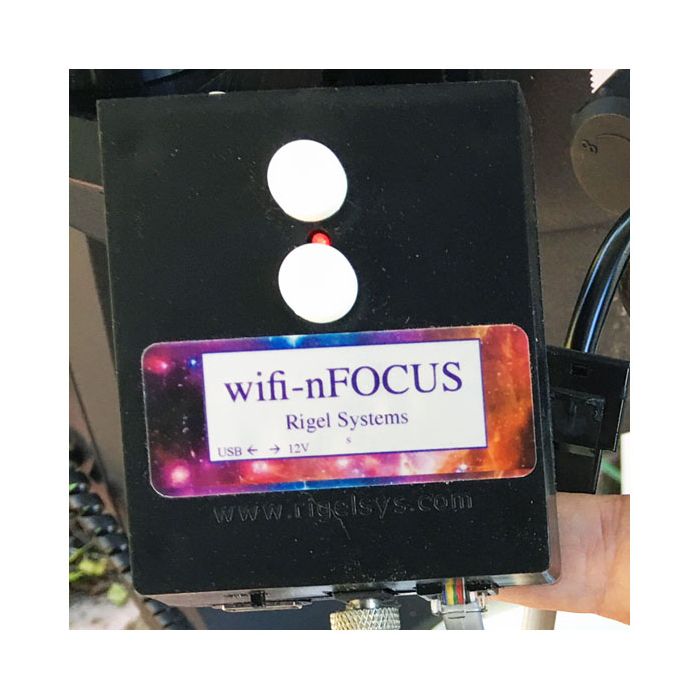

Rigel Wi-Fi nFOCUS for Computerized SCT Motor Focusing - For Celestron 6 - 14" SCTs
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
About wifi-nFOCUS
Computerized Celestron SCT Motor Focusing from pc, push buttons & wifi.Fully compatible with Celestron SCTs from 2006 to present with standard Celestron and Microtouch focusers.
Fully ASCOM compliant so it will work with popular focus control programs. Can be operated for temperature compensation with the included temperature sensor. USB and 12V battery power cables included. Software and ASCOM drivers for Windows xp/vista/7/8/10. Approximately 1.5 inches wide by 4 inches long by 0.5 inches thick.
Fully control your focuser from apple & android phones and tablet using web browser.
- Gear coupled motor prevents binding of focuser shaft and provides the equivalent of 4300 steps per revolution.
- Supports fast focusing with up to300 degrees/sec rotation of focuser knob.
- Light weight motor only adds 160 grams and does DOES NOT HIT the mount at high Altitudes/Declinations.
- Gear coupled motor easily declutched for manual focusing using focus knob.
Standard Celestron kits to fit 6, 7, 8, 9.25, 11, 14 inch models made since 2006.
Features
- Design: MODULAR - Buy just the components you need. Affordable upgrade path to more nFOCUS features and online firmware improvements. Unlike all-in-one boxes, Modular design provides easy repair or replacement of components.
- Maturity: Since 2010 with over 1000 installs. Fully checked out for compatibility with the most advanced Autofocus software, including ASCOM and INDI drivers.
- Step resolution: Gear coupling of motor to focus shaft provides the equivalent of 4300 steps per revolution
- Max focus knob totation speed: Very FAST >300 deg/sec
- 12V power for stepper: usb to 12V power cable included FREE for use with any spare USB phone wall charger or powered USB hub to supply 12V DC for the stepper.
- Bracket kits & gear ease of installation: Tailored to Celestron focusers for ease of attatchment, each kit contains all the parts needed for each particular focuser. Standard Celestron kit fits all 6, 8, 9.25, 11, 14 inch telescopes made since 2006.
- Adding more scopes: User can add just a bracket and gear kit ($70) to a different SCT and move the focus motor or add bracket and motor ($100) and just swap the wifi-nFOCUS between them.
- Temp sensor: Included FREE with full controller/stepper package, has its own dedicated port. 0.1 degree C resolution per measurement
- Manual focusing with focuser knobs: Gear coupled motor easily declutched for manual focusing using focus knob.
- Hand controller focusing: Integrated two speed push buttons with independent manual speed control. Position kept in sync whether moved by PC or push buttons.
- Wifi focusing: Wifi provides full focusing control from Android or Apple phones and tablets using web browser. Position synchronized whether changed by PC, wifi web browser or integrated push buttons.
- Standalone operation: Focus using wifi phone or integrated push buttons without PC
- Added weight on telescope: Mere 160 grams
- Interference with Mount at high elevations: NONE AT ALL!
Other Information
- Country of Manufacture: United States
About wifi-nFOCUS
Computerized Celestron SCT Motor Focusing from pc, push buttons & wifi.Fully compatible with Celestron SCTs from 2006 to present with standard Celestron and Microtouch focusers.
Fully ASCOM compliant so it will work with popular focus control programs. Can be operated for temperature compensation with the included temperature sensor. USB and 12V battery power cables included. Software and ASCOM drivers for Windows xp/vista/7/8/10. Approximately 1.5 inches wide by 4 inches long by 0.5 inches thick.
Fully control your focuser from apple & android phones and tablet using web browser.
- Gear coupled motor prevents binding of focuser shaft and provides the equivalent of 4300 steps per revolution.
- Supports fast focusing with up to300 degrees/sec rotation of focuser knob.
- Light weight motor only adds 160 grams and does DOES NOT HIT the mount at high Altitudes/Declinations.
- Gear coupled motor easily declutched for manual focusing using focus knob.
Standard Celestron kits to fit 6, 7, 8, 9.25, 11, 14 inch models made since 2006.
Features
- Design: MODULAR - Buy just the components you need. Affordable upgrade path to more nFOCUS features and online firmware improvements. Unlike all-in-one boxes, Modular design provides easy repair or replacement of components.
- Maturity: Since 2010 with over 1000 installs. Fully checked out for compatibility with the most advanced Autofocus software, including ASCOM and INDI drivers.
- Step resolution: Gear coupling of motor to focus shaft provides the equivalent of 4300 steps per revolution
- Max focus knob totation speed: Very FAST >300 deg/sec
- 12V power for stepper: usb to 12V power cable included FREE for use with any spare USB phone wall charger or powered USB hub to supply 12V DC for the stepper.
- Bracket kits & gear ease of installation: Tailored to Celestron focusers for ease of attatchment, each kit contains all the parts needed for each particular focuser. Standard Celestron kit fits all 6, 8, 9.25, 11, 14 inch telescopes made since 2006.
- Adding more scopes: User can add just a bracket and gear kit ($70) to a different SCT and move the focus motor or add bracket and motor ($100) and just swap the wifi-nFOCUS between them.
- Temp sensor: Included FREE with full controller/stepper package, has its own dedicated port. 0.1 degree C resolution per measurement
- Manual focusing with focuser knobs: Gear coupled motor easily declutched for manual focusing using focus knob.
- Hand controller focusing: Integrated two speed push buttons with independent manual speed control. Position kept in sync whether moved by PC or push buttons.
- Wifi focusing: Wifi provides full focusing control from Android or Apple phones and tablets using web browser. Position synchronized whether changed by PC, wifi web browser or integrated push buttons.
- Standalone operation: Focus using wifi phone or integrated push buttons without PC
- Added weight on telescope: Mere 160 grams
- Interference with Mount at high elevations: NONE AT ALL!
- 1x wifi-nFOCUS
- 1x USB PC cable
- 1x Focus motor cable
- 1x USB to 12V DC adapter cable to power the Focus motor
- 1x Focus motor + bracket & gear kit and all hardware to quickly attach to focuser
- 1x Temperature sensor
- 1x Instructions
