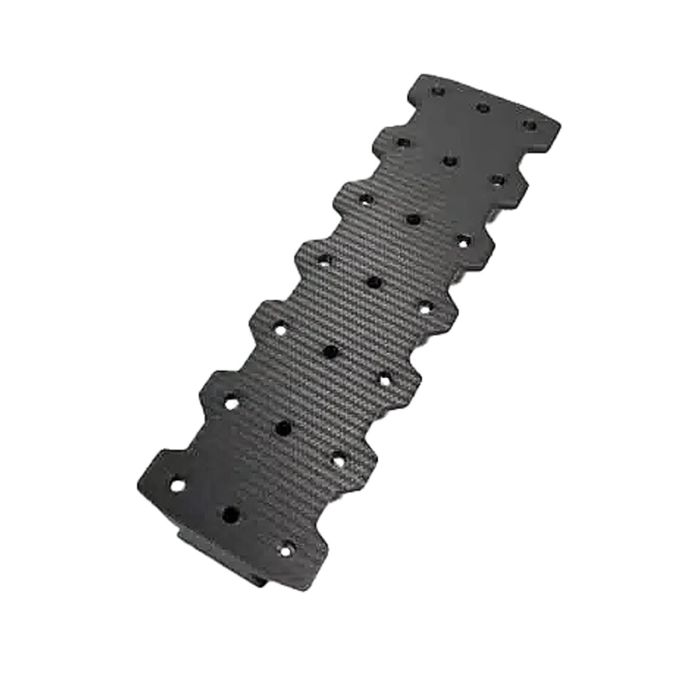

Lightweight Carbon Dovetail Accessory Plate – 6" Wide Top
The Rouz Astro Light-Duty Vixen-Style Wide Top Carbon Dovetail is a carbon fiber composite mounting plate designed for securing accessories like guide scopes and cameras. Weighing just 0.3 lbs (140 g), it offers a robust 11 lbs (5 kg ) payload capacity, making it an excellent choice for reducing weight without compromising strength. Its 2.0" (50.8 mm) bolt spacing is compatible with Rouz Astro tube rings, and it's temperature resistances ensures durability across various conditions. Note: Not for heavy telescope mounting. Recommended to use provided washers, bolts are not included.
Features
-
Standard Version hold accessories up to 11lbs (5kg)
- 2.0 in (50.8 mm) Bolt Spacing Fits Rouz Astro Tube Rings
-
Bolt spacing matches Rouz Astro CNC aluminum dovetail plates
- Lightweight carbon fiber composite
This product is CAD-designed and FDM-printed for exceptional strength and low weight, using a tough carbon fiber composite with excellent mechanical properties. The engineering-grade material is a blend of polymers and carbon fiber fused at over 500°F, ensuring superior durability without the use of glue or epoxy. It also features a precision-machined aluminum knob with stainless steel hardware and a smooth, spring-loaded mechanism for reliable performance.
Specifications
- Length: 150 mm (6 in)
- Weight: 140 g (0.3 lb)
- Bolt spacing width: 50.8 mm (2.0 in)
- FDM Print – Carbon fiber composite material
- Various hole spacing to accept M6 or 1/4-20 bolts
- High UV, water, and temperature resistance up to 60°C (140°F)
Other Information
- Country of Manufacture: Canada
