* Clearance * Sharpstar 140mm f/6.5 ED Triplet Apo Refractor Telescope
This item is discontinued by the manufacturer and is no longer available.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Please note:
- This is a brand new scope as received from Sharpstar. However, the case had a lot of scratches on the silver trim. See the several product photos provided above.
- The scope has been inspected by our QC and is new in all other cosmetic and mechanical respects.
- This scope has also been discontinued by the manufacturer. Hence, all sales are final. The optional reducer made for this scope is sold out and no longer available.

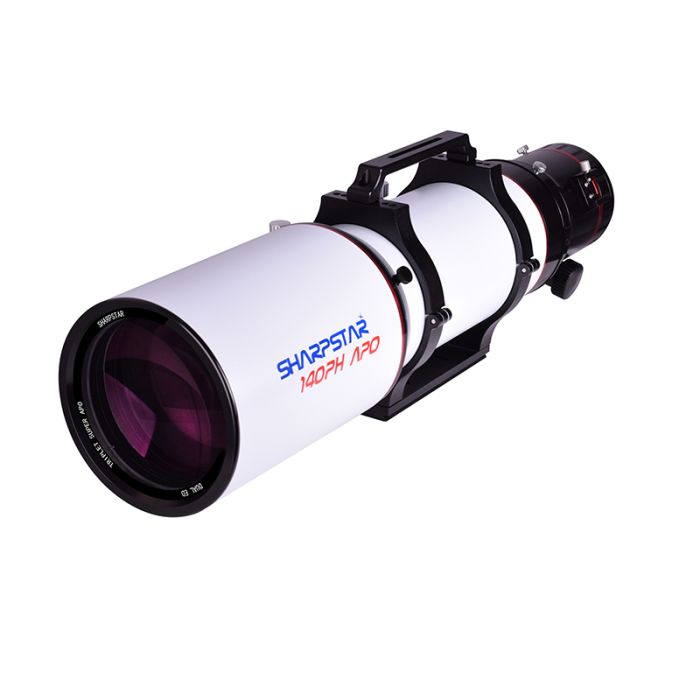

The Sharpstar AL-140PH APO is an apochromatic triplet telescope with a focal ratio of f/6.5 and a focal length of 910mm. The triplet objective lens includes two ED elements for a high degree of correction of chromatic aberration.
The large 4" brass rack-and-pinion focuser is fully rotatable by 360° to perfectly frame the subject, and it has a precise dual-speed 10:1 focusing mechanism for precise focus control. The drawtube has an opening for standard 2" diagonals and accessories with 110mm of focuser travel.
This refractor works at its best when paired with the Sharpstar 2.5" 0.74x field flattener/focal reducer (sold separately), especially when using full-frame cameras, to achieve a fast focal ratio of f/4.8. The use of this telescope by itself for imaging is not recommended unless you use a camera with a very small chip (diagonal size not exceeding about 10mm).
For the price, this fast apochromatic telescope offers excellent value and can approach the performance of telescopes that cost three or four times as much. This is especially true when matched with astronomy cameras with smaller 1" and 4/3" sensors. Cameras with larger APS-C and full-frame sensors may reveal slight aberrations at the edge of the field, even when using the focal reducer.
All the lens elements of this Sharpstar apo refractor are fully multi-coated, and the aluminum tube is internally blackened to reduce reflections and absorb stray light. All mechanical components including tube rings, dovetail, and carrying handle are engineered to provide the best rigidity, performance and durability.
The telescope also includes a Vixen/Synta-style finder mounting base (finder not included), tube rings, a Losmandy/D style mounting rail (180mm long), a convenient carrying handle, a metal objective dust cover, and a protective hard case. No 1.25" eyepiece adapter is included.
OTA Specifications:
- Aperture: 140mm
- Focal Length: 910mm
- Limiting Star Magnitude: 12.5
- F Ratio: f/6.5
- Resolution: 0.83 Angular Seconds
- Objective Type: Tripled Air-Spaced APO (Two Ultra-low Dispersion ED Glass)
- Total Length of Tube: 738.6m
- Net Weight: 22.3 lb (10.1kg)
- Length: 900mm (DewShield Extended), 739mm (DewShield Retracted)
- Tube Outside Diameter: 148mm
- Dewshield Outside Diameter: 179mm
Other Information
- Country of Manufacture: China
